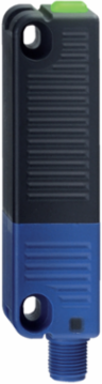

Schmersal 101213956 RFID Safety Sensor, 27 mm x 108.2 mm x 35 mm, IP65/IP67, Universal Coding
- MPN: 101213956
- PPN: SCM-101213956
CAD
$409.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
RFID Safety Sensor, 27 mm x 108.2 mm x 35 mm, IP65/IP67, Universal Coding
Features
- Universal coding with RFID technology
- 1 x connector socket M12, 8-pole
- Actuation from side
- Thermoplastic enclosure
- RFID-technology for needs-based protection against tampering
- Misaligned actuation possible
- 27 mm x 108.2 mm x 35 mm
- High repeat accuracy of the switching points
- 2 short-circuit proof PNP safety outputs
- Integral cross-short, wire-breakage and external voltage monitoring of the safety cables up to the control cabinet
Documentation & Downloads
Specifications
Electrical data - Safety digital inputs
| Designation, Safety inputs | X1 and X2 |
|---|---|
| Test pulse duration, maximum | 1 ms |
| Classification ZVEI CB24I, Sink | C1 |
| Current consumption of the safety inputs | 5 mA |
|---|---|
| Test pulse interval, minimum | 100 ms |
| Classification ZVEI CB24I, Source | C1 | C2 | C3 |
Electrical data
| Operating voltage | 24 VDC -15 % / +10 % (stabilised PELV power supply) |
|---|---|
| No-load supply current I | 35 mA |
| Operating current | 600 mA |
| Time to readiness, maximum | 2,000 ms |
| Operating current, minimum | 0.5 mA |
|---|---|
| Rated operating voltage | 24 VDC |
| Required rated short-circuit current | 100 A |
| Switching frequency, maximum | 1 Hz |
Note
| Note (General) | Evaluation requirements: dual-channel safety input, suitable for p-type sensors with NO function. The safety-monitoring module must tolerate internal functional tests of the sensors with cyclic switch-off of the sensor outputs for max. 0.5 ms. Short-circuit recognition by the evaluation is not necessary. |
|---|

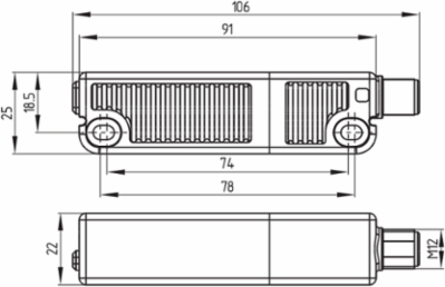

Mechanical data - Dimensions
| Length of sensor | 22 mm |
|---|---|
| Height of sensor | 25 mm |
| Width of sensor | 106.3 mm |
|---|

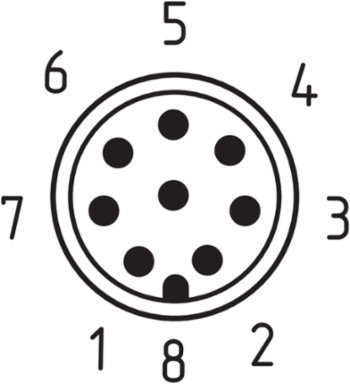

Pin assignment
| PIN 1 | 1A1 Ue: (1) |
|---|---|
| PIN 3 | A2 GND Blue |
| PIN 5 | OUT Diagnostic output OUT Grey |
| PIN 7 | Y2 Safety output 2 red |
| PIN 2 | X1 Safety input 1 |
|---|---|
| PIN 4 | Y1 Safety output 1 Black |
| PIN 6 | X2 Safety input 2 violet |
| PIN 8 | IN without function Pink |
Ambient conditions - Insulation values
| Rated insulation voltage U | 32 VDC |
|---|---|
| Overvoltage category | III |
| Rated impulse withstand voltage U | 0.8 kV |
|---|---|
| Degree of pollution | 3 |
Scope of delivery
| Scope of delivery | Actuator must be ordered separately. |
|---|
General data - Features
| Latching | Yes |
|---|---|
| Short circuit detection | Yes |
| Series-wiring | Yes |
| Cascadable | Yes |
| Number of LEDs | 3 |
| Number of fail-safe digital outputs | 2 |
| Diagnostic output | Yes |
|---|---|
| Cross-circuit detection | Yes |
| Safety functions | Yes |
| Integral system diagnostics, status | Yes |
| Number of semi-conductor outputs with signaling function | 1 |
General data
| Standards | EN ISO 13849-1 | EN IEC 60947-5-3 | EN IEC 61508 |
|---|---|
| Coding level according to EN ISO 14119 | Low |
| Frequency band RFID | 125 kHz |
| Housing construction form | Block |
| Sensor topology | Sensor for series wiring |
| Active area | Glass-fibre, reinforced thermoplastic |
| Reaction time, maximum | 100 ms |
| Reaction time, switching off safety outputs via actuator, maximum | 100 ms |
| Coding | Universal coding |
|---|---|
| Working principle | RFID |
| Transmitter output RFID, maximum | -6 dB/m |
| Installation conditions (mechanical) | not flush |
| Enclosure material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Gross weight | 100 g |
| Duration of risk, maximum | 200 ms |
| Reaction time, switching off safety outputs via safety inputs, maximum | 0.5 ms |
Safety classification
| Standards | EN ISO 13849-1 | EN IEC 61508 |
|---|---|
| Category | 4 |
| PFD value | 2.10 x 10⁻⁵ |
| Mission time | 20 Year(s) |
| Performance Level, up to | e |
|---|---|
| PFH value | 2.70 x 10⁻¹⁰ /h |
| Safety Integrity Level (SIL), suitable for applications in | 3 |
Electrical data - Safety digital outputs
| Designation, Safety outputs | Y1 and Y2 |
|---|---|
| Output current, (fail-safe output), maximum | 0.25 A |
| Voltage drop U | 1 V |
| Voltage, Utilisation category DC-12 | 24 VDC |
| Voltage, Utilisation category DC-13 | 24 VDC |
| Test pulse interval, typical | 1000 ms |
| Classification ZVEI CB24I, Source | C2 |
| Rated operating current (safety outputs) | 250 mA |
|---|---|
| Design of control elements | short-circuit proof, p-type |
| Leakage current I | 0.5 mA |
| Current, Utilisation category DC-12 | 0.25 A |
| Current, Utilisation category DC-13 | 0.25 A |
| Test pulse duration, maximum | 0.3 ms |
| Classification ZVEI CB24I, Sink | C1 | C2 |
Ambient conditions
| Degree of protection | IP65 | IP67 | IP69 |
|---|---|
| Storage and transport temperature, minimum | -25 °C |
| Relative humidity, maximum | 93 % |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Protection class | III |
| Ambient temperature | -25 ... +70 °C |
|---|---|
| Storage and transport temperature, maximum | +85 °C |
| Note (Relative humidity) | non-condensing | non-icing |
| Restistance to shock | 30 g / 11 ms |
| Permissible installation altitude above sea level, maximum | 2,000 m |
Mechanical data - Connection technique
| Termination | Connector M12, 8-pole |
|---|---|
| Note (series-wiring) | Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD |
| Note (length of the sensor chain) | Cable length and cross-section change the voltage drop dependiing on the output current |
|---|
Electrical data - Diagnostic outputs
| Designation, Diagnostic outputs | OUT |
|---|---|
| Voltage drop U | 2 V |
| Current, Utilisation category DC-12 | 0.05 A |
| Current, Utilisation category DC-13 | 0.05 A |
| Design of control elements | short-circuit proof, p-type |
|---|---|
| Voltage, Utilisation category DC-12 | 24 VDC |
| Voltage, Utilisation category DC-13 | 24 VDC |
Mechanical data - Switching distances according EN IEC 60947-5-3
| Switch distance, typical | 12 mm |
|---|---|
| Assured switching distance "OFF" S | 20 mm |
| Assured switching distance "ON" S | 10 mm |
|---|
Mechanical data
| Actuating panels | lateral |
|---|---|
| Mechanical life, minimum | 1,000,000 Operations |
| Hysteresis (Switching distance), maximum | 2 mm |
| Note (Repeat accuracy R) | Axial offset: The long side allows for a maximum height misalignment (x) of sensor and actuator of 8 mm (e.g. mounting tolerance or due to guard door sagging). The axial misalignment (y) is max. ± 18 mm (see figure: Operating principle).Minimum 100 mm clearance in case of approach from side. |
| Mounting | A screw length of 25 mm is sufficient for sensor mounting and for side mounting of the actuators. 30 mm long screws are recommended when the actuator is mounted upright and/or when the sealing discs are used. |
| Tightening torque of the fixing screws, minimum | 2.2 Nm |
| Active area | lateral |
|---|---|
| Note (Mechanical life) | Actuating speed < 0.25 m/s | Operations for door weights ≤ 5 kg |
| Repeat accuracy R | 0.5 mm |
| Latching force, approx. | 18 N |
| Type of the fixing screws | 2x M4 (cylinder head screws with washers DIN 125A / form A) |
| Tightening torque of the fixing screws, maximum | 2.5 Nm |
Accessory
| Recommendation (actuator) | RST 36-1 | RST 36-1-R |
|---|
| Recommended safety switchgear | PROTECT PSC1 | SRB-E-301ST | SRB-E-201LC |
|---|
Approvals - Standards
| Certificates | TÜV | cULus | ECOLAB | FCC | IC |
|---|
Electrical data - Electromagnetic compatibility (EMC)
| Interfering radiation | IEC 61000-6-4 |
|---|
| EMC rating | IEC 60947-3 |
|---|
Status indication
| Note (LED switching conditions display) | LED yellow: Operating condition | LED green: Supply voltage | LED red: Fault |
|---|
