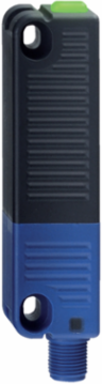

Schmersal 101214772 RFID Safety Sensor, 27 mm x 108.2 mm x 35 mm, IP65/IP67/IP69, 2 Safety Outputs
Schmersal 101214772 RFID Safety Sensor, 27 mm x 108.2 mm x 35 mm, IP65/IP67/IP69, 2 Safety Outputs
- MPN: 101214772
- PPN: SCM-101214772
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$298.52/ EA
Features
- Universal coding with RFID technology
- 1 x connector socket M12, 8-pole
- Actuation from side
- Max. 31 sensors can be wired in series.
- serial diagnostic output
- Thermoplastic enclosure
- RFID-technology for needs-based protection against tampering
- Misaligned actuation possible
- 27 mm x 108.2 mm x 35 mm
- High repeat accuracy of the switching points
- 2 short-circuit proof PNP safety outputs
- Integral cross-short, wire-breakage and external voltage monitoring of the safety cables up to the control cabinet
Specifications
Electrical data - Safety digital inputs
- Designation, Safety inputs
- X1 and X2
- Test pulse duration, maximum
- 1 ms
- Classification ZVEI CB24I, Sink
- C1
Current consumption of the safety inputs5 mA
Test pulse interval, minimum100 ms
Classification ZVEI CB24I, SourceC1 | C2 | C3
Electrical data - Serial diagnostic SD
- Designation, Serial diagnostic SD
- OUT
- Design of control elements
- short-circuit proof, p-type
Operation current150 mA
Wiring capacitance50 nF
Electrical data
- Operating voltage
- 24 VDC -15 % / +10 % (stabilised PELV power supply)
- No-load supply current I
- 35 mA
- Operating current
- 600 mA
- Time to readiness, maximum
- 2,000 ms
Operating current, minimum0.5 mA
Rated operating voltage24 VDC
Required rated short-circuit current100 A
Switching frequency, maximum1 Hz
Note
- Note (General)
- Evaluation requirements: dual-channel safety input, suitable for p-type sensors with NO function. The safety-monitoring module must tolerate internal functional tests of the sensors with cyclic switch-off of the sensor outputs for max. 0.5 ms. Short-circuit recognition by the evaluation is not necessary.

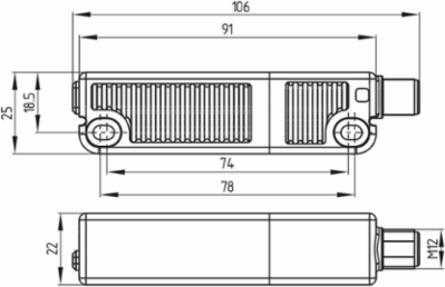

Mechanical data - Dimensions
- Length of sensor
- 22 mm
- Height of sensor
- 25 mm
Width of sensor106.3 mm

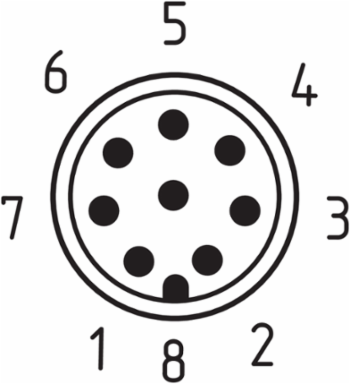

Pin assignment
- PIN 1
- 1A1 Ue: (1)
- PIN 3
- A2 GND Blue
- PIN 5
- serial diagnostic output OUT Grey
- PIN 7
- Y2 Safety output 2 red
PIN 2X1 Safety input 1
PIN 4Y1 Safety output 1 Black
PIN 6X2 Safety input 2 violet
PIN 8IN serial diagnostic input Pink
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution3
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
General data - Features
- Serial diagnostics
- Yes
- Cross-circuit detection
- Yes
- Safety functions
- Yes
- Integral system diagnostics, status
- Yes
- Number of semi-conductor outputs with signaling function
- 1
- Number of series-wiring of sensors
- 31
Short circuit detectionYes
Series-wiringYes
CascadableYes
Number of LEDs3
Number of fail-safe digital outputs2
General data
- Standards
- EN ISO 13849-1 | EN IEC 60947-5-3 | EN IEC 61508
- Coding level according to EN ISO 14119
- Low
- Frequency band RFID
- 125 kHz
- Housing construction form
- Block
- Sensor topology
- Sensor for series wiring
- Active area
- Glass-fibre, reinforced thermoplastic
- Reaction time, maximum
- 100 ms
- Reaction time, switching off safety outputs via actuator, maximum
- 100 ms
CodingUniversal coding
Working principleRFID
Transmitter output RFID, maximum-6 dB/m
Installation conditions (mechanical)not flush
Enclosure materialPlastic, glass-fibre reinforced thermoplastic, self-extinguishing
Gross weight85 g
Duration of risk, maximum200 ms
Reaction time, switching off safety outputs via safety inputs, maximum0.5 ms
Safety classification
- Standards
- EN ISO 13849-1 | EN IEC 61508
- Category
- 4
- PFD value
- 2.10 x 10⁻⁵
- Mission time
- 20 Year(s)
Performance Level, up toe
PFH value2.70 x 10⁻¹⁰ /h
Safety Integrity Level (SIL), suitable for applications in3
Electrical data - Safety digital outputs
- Designation, Safety outputs
- Y1 and Y2
- Output current, (fail-safe output), maximum
- 0.25 A
- Voltage drop U
- 1 V
- Voltage, Utilisation category DC-12
- 24 VDC
- Voltage, Utilisation category DC-13
- 24 VDC
- Test pulse interval, typical
- 1000 ms
- Classification ZVEI CB24I, Source
- C2
Rated operating current (safety outputs)250 mA
Design of control elementsshort-circuit proof, p-type
Leakage current I0.5 mA
Current, Utilisation category DC-120.25 A
Current, Utilisation category DC-130.25 A
Test pulse duration, maximum0.3 ms
Classification ZVEI CB24I, SinkC1 | C2
Ambient conditions
- Degree of protection
- IP65 | IP67 | IP69
- Storage and transport temperature, minimum
- -25 °C
- Relative humidity, maximum
- 93 %
- Resistance to vibrations
- 10 … 55 Hz, amplitude 1 mm
- Protection class
- III
Ambient temperature-25 ... +70 °C
Storage and transport temperature, maximum+85 °C
Note (Relative humidity)non-condensing | non-icing
Restistance to shock30 g / 11 ms
Permissible installation altitude above sea level, maximum2,000 m
Mechanical data - Connection technique
- Termination
- Connector M12, 8-pole
- Note (series-wiring)
- Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
Note (length of the sensor chain)Cable length and cross-section change the voltage drop dependiing on the output current
Mechanical data - Switching distances according EN IEC 60947-5-3
- Switch distance, typical
- 12 mm
- Assured switching distance "OFF" S
- 20 mm
Assured switching distance "ON" S10 mm
Mechanical data
- Actuating panels
- lateral
- Mechanical life, minimum
- 1,000,000 Operations
- Hysteresis (Switching distance), maximum
- 2 mm
- Note (Repeat accuracy R)
- Axial offset: The long side allows for a maximum height misalignment (x) of sensor and actuator of 8 mm (e.g. mounting tolerance or due to guard door sagging). The axial misalignment (y) is max. ± 18 mm (see figure: Operating principle).Minimum clearance between two sensor systems 100 mm.
- Type of the fixing screws
- 2x M4 (cylinder head screws with washers DIN 125A / form A)
- Tightening torque of the fixing screws, maximum
- 2.5 Nm
Active arealateral
Note (Mechanical life)Actuating speed < 0.25 m/s | Operations for door weights ≤ 5 kg
Repeat accuracy R0.5 mm
MountingA screw length of 25 mm is sufficient for sensor mounting and for side mounting of the actuators. 30 mm long screws are recommended when the actuator is mounted upright and/or when the sealing discs are used.
Tightening torque of the fixing screws, minimum2.2 Nm
Accessory
- Recommendation (actuator)
- RST 36-1 | RST 36-1-R
Recommended safety switchgearPROTECT PSC1 | SRB-E-301ST | SRB-E-201LC
Approvals - Standards
- Certificates
- TÜV | cULus | ECOLAB | FCC | IC
Electrical data - Electromagnetic compatibility (EMC)
- Interfering radiation
- IEC 61000-6-4
EMC ratingIEC 60947-3
Status indication
- Note (LED switching conditions display)
- LED yellow: Operating condition | LED green: Supply voltage | LED red: Fault
