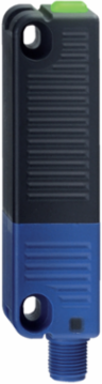

Schmersal 101216956 RFID Safety Sensor RSS 36-I2-D-ST, 27mm x 108.2mm x 35mm, IP65, SIL 3
Schmersal 101216956 RFID Safety Sensor RSS 36-I2-D-ST, 27mm x 108.2mm x 35mm, IP65, SIL 3
- MPN: 101216956
- PPN: SCM-101216956
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$400.29/ EA
Features
- Repeated individual coding with RFID technology
- Coding level "High" according to ISO 14119
- 1 x connector socket M12, 8-pole

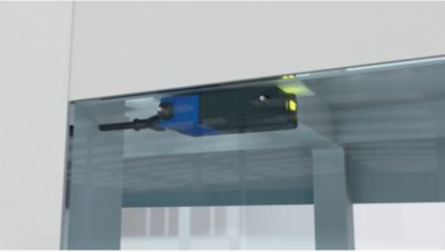

- Actuation from side
- Thermoplastic enclosure

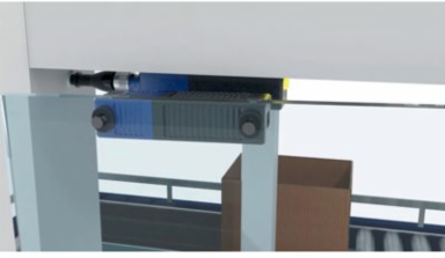

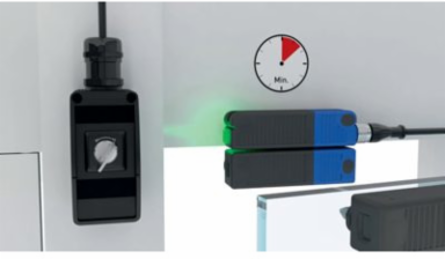

- RFID-technology for needs-based protection against tampering

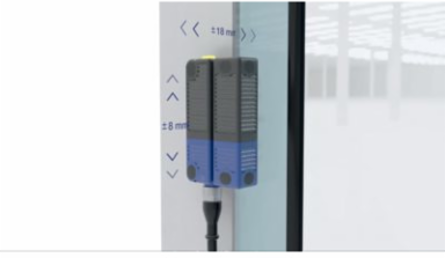

- Misaligned actuation possible
- 27 mm x 108.2 mm x 35 mm
- High repeat accuracy of the switching points

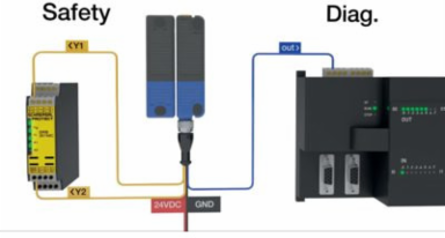

- 2 short-circuit proof PNP safety outputs

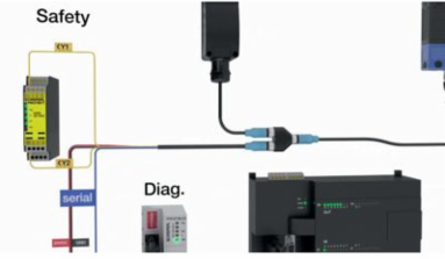

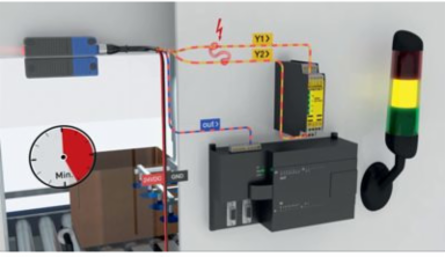

- Integral cross-short, wire-breakage and external voltage monitoring of the safety cables up to the control cabinet
Specifications
Electrical data - Fail-safe digital outputs
- Rated operating current (safety outputs)
- 250 mA
- Versions
- p-type
- Current leakage I
- 0.5 mA
- Current, Utilisation category DC-12
- 0.25 A
- Current, Utilisation category DC-13
- 0.25 A
Output current, (fail-safe output), maximum0.25 A
Voltage drop U1 V
Voltage, Utilisation category DC-1224 VDC
Voltage, Utilisation category DC-1324 VDC
Safety appraisal
- Standards
- EN ISO 13849-1 | IEC 60947-5-3 | EN 62061 | IEC 61508
- Control category to EN13849
- 4
- Safety Integrity Level (SIL), suitable for applications in
- 3
Performance level, up toe
PFH-value2.70 x 10⁻¹⁰ /h
Mission Time20 Year(s)
Electrical data
- Voltage type
- DC (direct current)
- Rated operating voltage
- 24 VDC −15 % / +10 %
- Rated operating voltage, maximum
- 26.4 VDC
- Required rated short-circuit current to EN 60947-5-1
- 100 A
No-load supply current I100 mA
Rated operating voltage, minimum20.4 VDC
Operating current600 mA
Switching frequency, approx.1 Hz

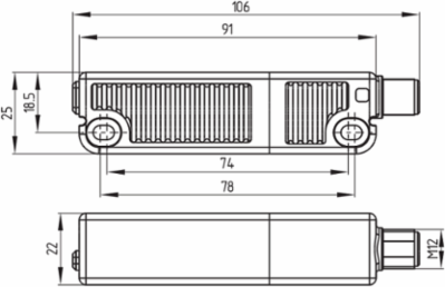

Mechanical data - Dimensions
- Length of sensor
- 22 mm
- Height of sensor
- 25 mm
Width of sensor106.3 mm

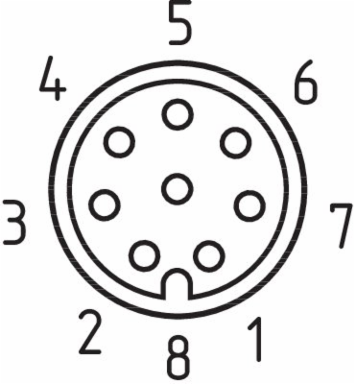

Pin assignment
- PIN 1
- A1 Ue Brown
- PIN 3
- A2 GND Blue
- PIN 5
- OUT Diagnostic output OUT Grey
- PIN 7
- Y2 Safety output 2 red
PIN 2X1 Safety input 1 White
PIN 4Y1 Safety output 1 Black
PIN 6X2 Safety input 2 violet
PIN 8IN without function Pink
Scope of delivery
- Included in delivery
- Actuators must be ordered separately.
Ambient conditions - Insulation value
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution to VDE 01003
General data - Features
- Diagnostic output
- Yes
- Short-circuit recognition
- Yes

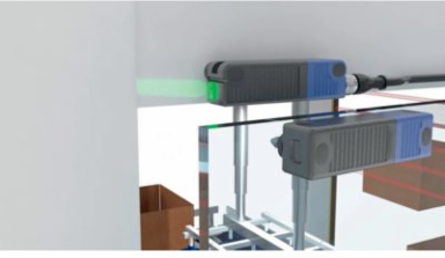

- Cascadable
- Yes
- Number of LEDs
- 3
- Number of fail-safe digital outputs
- 2
Short circuit detectionYes
Safety functionsYes
Integral System Diagnostics, statusYes
Number of semi-conductor outputs with signaling function1
General data
- Standards
- IEC 60947-5-3
- Coding level according to ISO 14119
- High
- Housing construction form
- Block
- Sensor topology
- Sensor for series wiring
- Active area
- Glass-fibre, reinforced thermoplastic
- Time to readiness, maximum
- 2,000 ms
- Duration of risk, maximum
- 200 ms
general informationIndividual coding, multiple teaching
Active principleRFID
Installation conditions (mechanical)not flush
Enclosure materialPlastic, glass-fibre reinforced thermoplastic, self-extinguishing
Gross weight80 g
Reaction time, maximum100 ms
Ambient conditions
- Degree of protection
- IP65 to EN 60529 | IP67 to EN 60529 | IP69 to EN 60529
- Ambient temperature, maximum
- +70 °C
- Storage and transport temperature, maximum
- +85 °C
- Material temperature resistance of the cable (at rest), minimum
- -30 °C
- Resistance to vibrations to EN 60068-2-6
- 10 … 55 Hz, amplitude 1 mm
- Protection rating
- III
Ambient temperature, minimum-25 °C
Storage and transport temperature, minimum-25 °C
Material temperature resistance of the cable (in motion), minimum-10 °C
Material temperature resistance (long-term), maximum+105 °C
Restistance to shock30 g / 11 ms
Electrical data - Diagnostic output
- Versions
- p-type
- Voltage, Utilisation category DC-12
- 24 VDC
- Voltage, Utilisation category DC-13
- 24 VDC
Voltage drop U2 V
Current, Utilisation category DC-120.05 A
Current, Utilisation category DC-130.05 A
Mechanical data - Connection technique
- Terminal Connector
- Connector M12, 8-pole
NoteThe cable section of the interconnecting cable must be observed! Cable length and cable section alter the voltage drop depending on the output current
Mechanical data - Switching distances according IEC 60947-5-3
- Switch distance
- 12 mm
- Ensured switch distance "OFF" S
- 20 mm
Ensured switch distance "ON" S10 mm
Mechanical data
- Actuating panels
- lateral
- Hysteresis (Switch distance), maximum
- 2 mm
- Note (Repeat accuracy
- Axial offset: The long side allows for a maximum height misalignment (x) of sensor and actuator of 8 mm (e.g. mounting tolerance or due to guard door sagging). The axial misalignment (y) is max. ± 18 mm (see figure: Operating principle). Minimum clearance between two sensor systems 100 mm.
Active arealateral
Repeat accuracy R R0.5 mm
MountingA screw length of 25 mm is sufficient for sensor mounting and for side mounting of the actuators. 30 mm long screws are recommended when the actuator is mounted upright and/or when the sealing discs are used.
Accessory
- Recommendation (actuator)
- RST 36-1 | RST 36-1-R
Recommended safety switchgearPROTECT PSC1 | SRB-E-301ST | SRB-E-201LC
Electrical data - Electromagnetic compatibility (EMC)
- Interfering radiation
- IEC 61000-6-4
EMC ratingIEC 60947-3
Approval - Standards
- Certificates
- TÜV | cULus | ECOLAB | EAC | FCC | IC
Status indication
- Note (LED switching conditions display)
- LED yellow: Operating condition | LED green: Supply voltage | LED red: Fault
