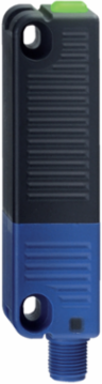

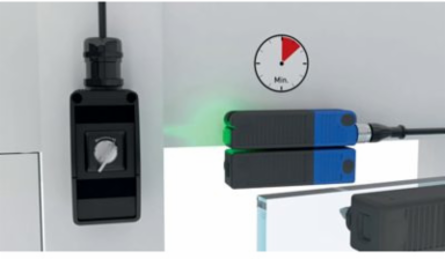

Schmersal 101214773 RFID Safety Sensor with PNP Outputs, 27 mm x 108.2 mm, IP65/IP67/IP69
- MPN: 101214773
- PPN: SCM-101214773
CAD
$500.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
RFID Safety Sensor with PNP Outputs, 27 mm x 108.2 mm, IP65/IP67/IP69
Features
- Repeated individual coding with RFID technology
- Coding level "High" according to ISO 14119
- 1 x connector socket M12, 8-pole
- Actuation from side
- Thermoplastic enclosure
- RFID-technology for needs-based protection against tampering

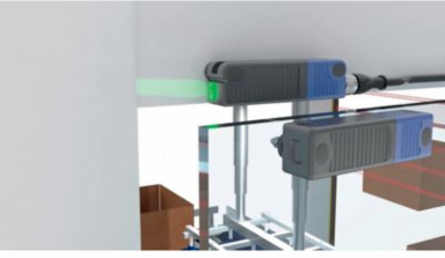

- Misaligned actuation possible
- 27 mm x 108.2 mm x 35 mm
- High repeat accuracy of the switching points
- 2 short-circuit proof PNP safety outputs

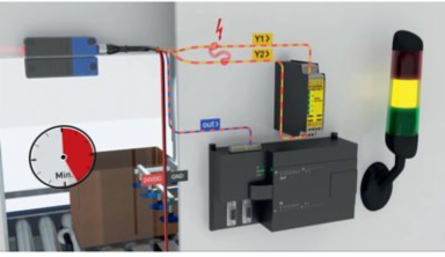

- Integral cross-short, wire-breakage and external voltage monitoring of the safety cables up to the control cabinet
Documentation & Downloads
Specifications
Electrical data - Fail-safe digital outputs
- Rated operating current (safety outputs)
- 250 mA
- Versions
- p-type
- Current leakage I
- 0.5 mA
- Current, Utilisation category DC-12
- 0.25 A
- Current, Utilisation category DC-13
- 0.25 A
Output current, (fail-safe output), maximum0.25 A
Voltage drop U1 V
Voltage, Utilisation category DC-1224 VDC
Voltage, Utilisation category DC-1324 VDC
Safety appraisal
- Standards
- EN ISO 13849-1 | IEC 60947-5-3 | EN 62061 | IEC 61508
- Control category to EN13849
- 4
- Safety Integrity Level (SIL), suitable for applications in
- 3
Performance level, up toe
PFH-value2.70 x 10⁻¹⁰ /h
Mission Time20 Year(s)
Electrical data
- Voltage type
- DC (direct current)
- Rated operating voltage
- 24 VDC −15 % / +10 %
- Rated operating voltage, maximum
- 26.4 VDC
- Required rated short-circuit current to EN 60947-5-1
- 100 A
No-load supply current I100 mA
Rated operating voltage, minimum20.4 VDC
Operating current600 mA
Switching frequency, approx.1 Hz

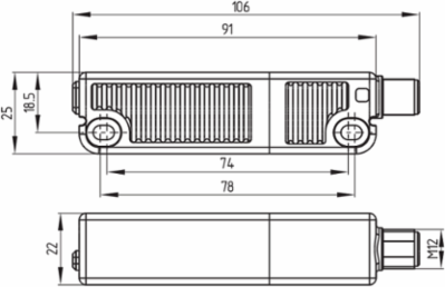

Mechanical data - Dimensions
- Length of sensor
- 22 mm
- Height of sensor
- 25 mm
Width of sensor106.3 mm

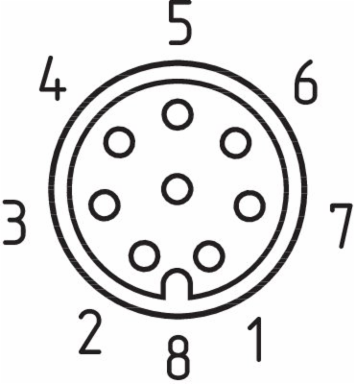

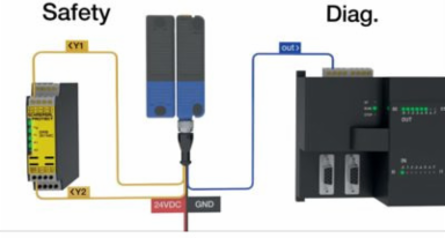

Pin assignment
- PIN 1
- A1 Ue Brown
- PIN 3
- A2 GND Blue
- PIN 5
- OUT Diagnostic output OUT Grey
- PIN 7
- Y2 Safety output 2 red
PIN 2X1 Safety input 1 White
PIN 4Y1 Safety output 1 Black
PIN 6X2 Safety input 2 violet
PIN 8IN without function Pink
Scope of delivery
- Included in delivery
- Actuators must be ordered separately.
Ambient conditions - Insulation value
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution to VDE 01003
General data - Features
- Latching
- Yes
- Short circuit detection
- Yes
- Safety functions
- Yes
- Integral System Diagnostics, status
- Yes
- Number of semi-conductor outputs with signaling function
- 1
Diagnostic outputYes
Short-circuit recognitionYes
CascadableYes
Number of LEDs3
Number of fail-safe digital outputs2
General data
- Standards
- IEC 60947-5-3
- Coding level according to ISO 14119
- High
- Housing construction form
- Block
- Sensor topology

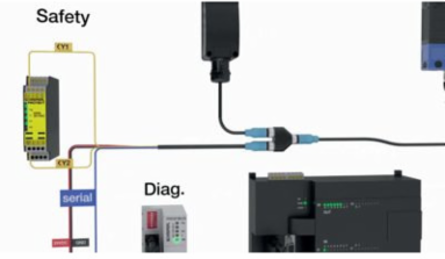

- Sensor for series wiring
- Active area
- Glass-fibre, reinforced thermoplastic
- Time to readiness, maximum
- 2,000 ms
- Duration of risk, maximum
- 200 ms
general informationIndividual coding, multiple teaching
Active principleRFID
Installation conditions (mechanical)not flush
Enclosure materialPlastic, glass-fibre reinforced thermoplastic, self-extinguishing
Gross weight100 g
Reaction time, maximum100 ms
Ambient conditions
- Degree of protection
- IP65 to EN 60529 | IP67 to EN 60529 | IP69 to EN 60529
- Ambient temperature, maximum
- +70 °C
- Storage and transport temperature, maximum
- +85 °C
- Material temperature resistance of the cable (at rest), minimum
- -30 °C
- Resistance to vibrations to EN 60068-2-6
- 10 … 55 Hz, amplitude 1 mm
- Protection rating
- III
Ambient temperature, minimum-25 °C
Storage and transport temperature, minimum-25 °C
Material temperature resistance of the cable (in motion), minimum-10 °C
Material temperature resistance (long-term), maximum+105 °C
Restistance to shock30 g / 11 ms
Electrical data - Diagnostic output
- Versions
- p-type
- Voltage, Utilisation category DC-12
- 24 VDC
- Voltage, Utilisation category DC-13
- 24 VDC
Voltage drop U2 V
Current, Utilisation category DC-120.05 A
Current, Utilisation category DC-130.05 A
Mechanical data - Connection technique
- Terminal Connector
- Connector M12, 8-pole
NoteThe cable section of the interconnecting cable must be observed! Cable length and cable section alter the voltage drop depending on the output current
Mechanical data - Switching distances according IEC 60947-5-3
- Switch distance
- 12 mm
- Ensured switch distance "OFF" S
- 20 mm
Ensured switch distance "ON" S10 mm
Mechanical data
- Actuating panels
- lateral
- Hysteresis (Switch distance), maximum
- 2 mm
- Note (Repeat accuracy

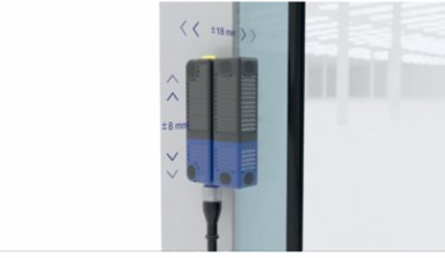

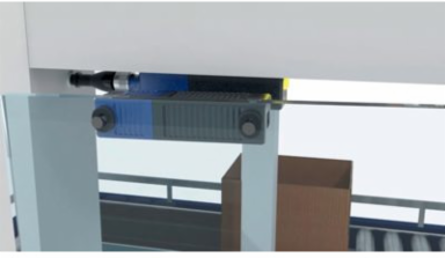

- Axial offset: The long side allows for a maximum height misalignment (x) of sensor and actuator of 8 mm (e.g. mounting tolerance or due to guard door sagging). The axial misalignment (y) is max. ± 18 mm (see figure: Operating principle). Minimum clearance between two sensor systems 100 mm.

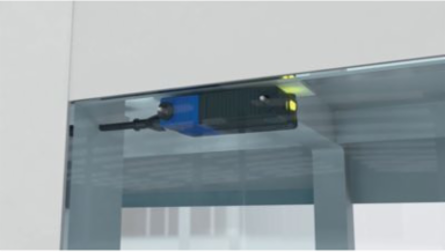

- Mounting
- A screw length of 25 mm is sufficient for sensor mounting and for side mounting of the actuators. 30 mm long screws are recommended when the actuator is mounted upright and/or when the sealing discs are used.
Active arealateral
Repeat accuracy R R0.5 mm
Latching force18 N
Accessory
- Recommendation (actuator)
- RST 36-1 | RST 36-1-R
Recommended safety switchgearPROTECT PSC1 | SRB-E-301ST | SRB-E-201LC
Electrical data - Electromagnetic compatibility (EMC)
- Interfering radiation
- IEC 61000-6-4
EMC ratingIEC 60947-3
Approval - Standards
- Certificates
- TÜV | cULus | ECOLAB | EAC | FCC | IC
Status indication
- Note (LED switching conditions display)
- LED yellow: Operating condition | LED green: Supply voltage | LED red: Fault
