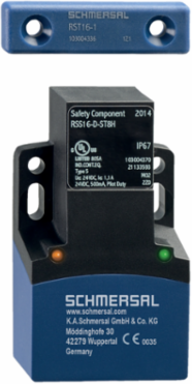

Schmersal 103010485 RSS16 Safety Sensor with RFID Technology, 91 mm Length, 52 mm Width
- MPN: 103010485
- PPN: SCM-103010485
CAD
$446.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

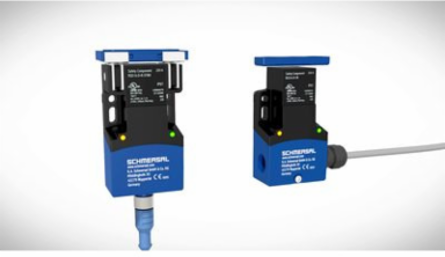

RSS16 Safety Sensor with RFID Technology, 91 mm Length, 52 mm Width
Features
- Thermoplastic enclosure

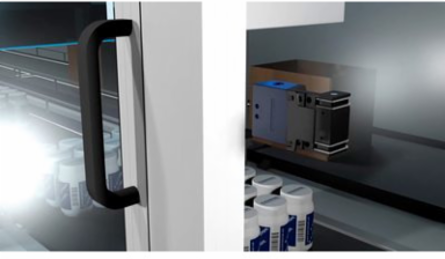

- RFID-technology for needs-based protection against tampering

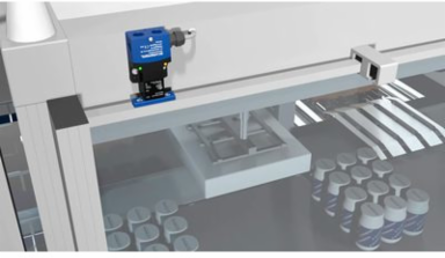

- 3 different directions of actuation

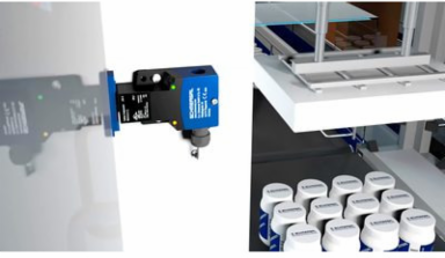

- Door stop with magnetic latching
- Connection terminal or plug connection

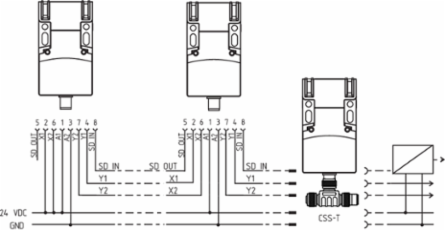

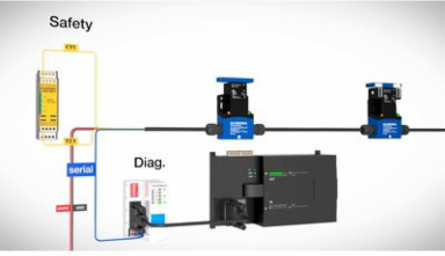

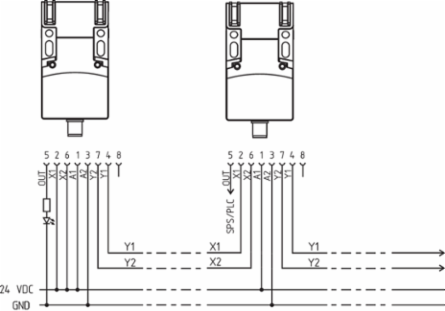

- Suitable for series-wiring
Documentation & Downloads
Specifications
Electrical data - Fail-safe digital outputs
- Rated operating current (safety outputs)
- 1,000 mA
- Versions
- p-type
- Current leakage I
- 0.5 mA
- Current, Utilisation category DC-12
- 1 A
- Current, Utilisation category DC-13
- 1 A
Output current, (fail-safe output), maximum1 A
Voltage drop U1 V
Voltage, Utilisation category DC-1224 VDC
Voltage, Utilisation category DC-1324 VDC
Safety appraisal
- Standards
- EN ISO 13849-1 | IEC 60947-5-3 | EN 62061 | IEC 61508
- Control category to EN13849
- 4
- Safety Integrity Level (SIL), suitable for applications in
- 3
Performance level, up toe
PFH-value6.30 x 10⁻¹¹ /h
Mission Time20 Year(s)
Electrical data
- Voltage type
- DC (direct current)
- Rated operating voltage, minimum
- 20.4 VDC
- Operating current
- 2,100 mA
- Switching frequency, approx.
- 1 Hz
No-load supply current I100 mA
Rated operating voltage, maximum26.4 VDC
Required rated short-circuit current to EN 60947-5-1100 A

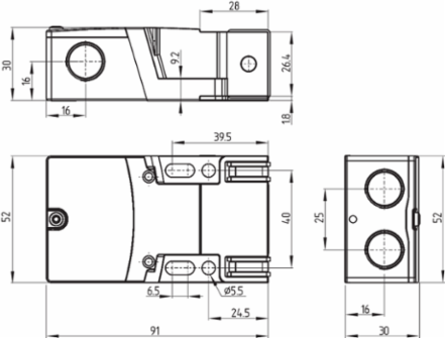

Mechanical data - Dimensions
- Length of sensor
- 91 mm
- Height of sensor
- 30 mm
Width of sensor52 mm
Scope of delivery
- Included in delivery
- Actuators must be ordered separately.
Ambient conditions - Insulation value
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution to VDE 01003
General data - Features

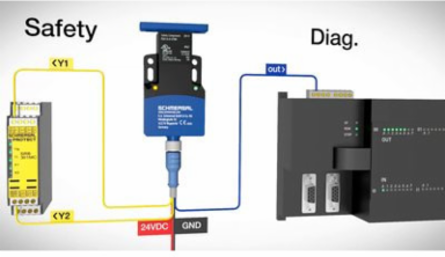

- Diagnostic output
- Yes
- Short-circuit recognition
- Yes
- Cascadable
- Yes
- Number of LEDs
- 2
- Number of fail-safe digital outputs
- 2
Short circuit detectionYes
Safety functionsYes
Integral System Diagnostics, statusYes
Number of semi-conductor outputs with signaling function1
General data
- Standards
- IEC 60947-5-3
- Coding level according to ISO 14119
- High
- Housing construction form
- Block
- Enclosure material
- Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Gross weight
- 250 g
- Reaction time, maximum
- 100 ms
general informationIndividual coding, multiple teaching
Active principleRFID
Installation conditions (mechanical)not flush
Active areaGlass-fibre, reinforced thermoplastic
Time to readiness, maximum2,000 ms
Duration of risk, maximum200 ms
Ambient conditions
- Ambient temperature, minimum
- -25 °C
- Storage and transport temperature, minimum
- -25 °C
- Restistance to shock
- 30 g / 11 ms
Ambient temperature, maximum+70 °C
Storage and transport temperature, maximum+85 °C
Protection rating0

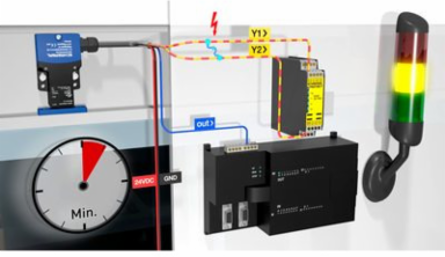

Electrical data - Diagnostic output
- Operating current
- 50 mA
- Voltage drop U
- 2 V
- Current, Utilisation category DC-13
- 0.05 A
Versionsp-type
Current, Utilisation category DC-120.05 A
Mechanical data - Connection technique
- Note
- The cable section of the interconnecting cable must be observed for both wiring variants! Cable length and cable section alter the voltage drop depending on the output current

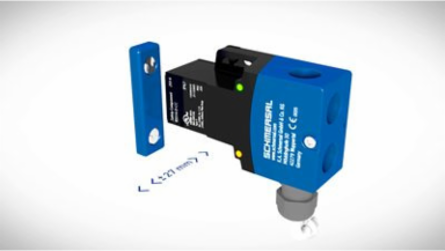

Mechanical data - Switching distances according IEC 60947-5-3
- Switch distance
- 15 mm
- Ensured switch distance "OFF" S
- 30 mm
Ensured switch distance "ON" S5 mm
Mechanical data
- Actuating panels
- front side | rear | from head
- Hysteresis (Switch distance), maximum
- 2 mm
- Mounting
- 2 x M5, Cylinder head screw
Active arealateral | front side | cover-side
Repeat accuracy R R0.5 mm
Tightening torque of nuts, maximum2 Nm
Electrical data - Electromagnetic compatibility (EMC)
- Interfering radiation
- IEC 61000-6-4
EMC ratingIEC 60947-3
Approval - Standards
- Certificates
- TÜV | cULus | EAC | FCC | IC
Status indication
- Note (LED switching conditions display)
- Multi-coloured LED: Green, Red | LED yellow: Operating condition | LED green: Supply voltage | LED red: Fault
