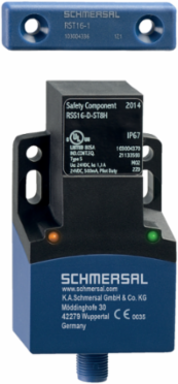

Schmersal 103004351 RFID Safety Sensor, 30 mm Height, IP65/67, Thermoplastic Enclosure
- MPN: 103004351
- PPN: SCM-103004351
CAD
$378.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
RFID Safety Sensor, 30 mm Height, IP65/67, Thermoplastic Enclosure
Features
- Repeated individual coding with RFID technology
- Coding level "High" according to ISO 14119
- Spring pulley connection

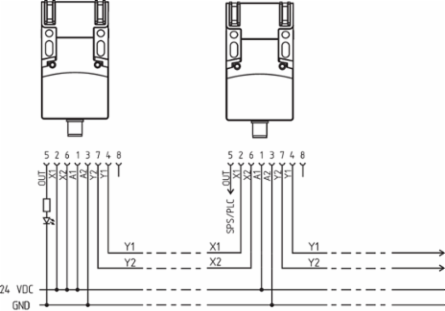

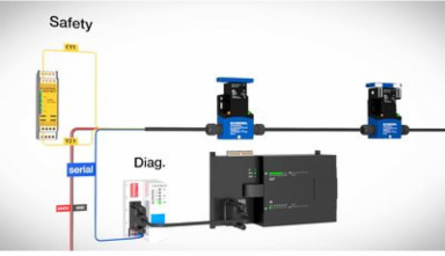

- Series-wiring unlimited
- without latching
- Thermoplastic enclosure

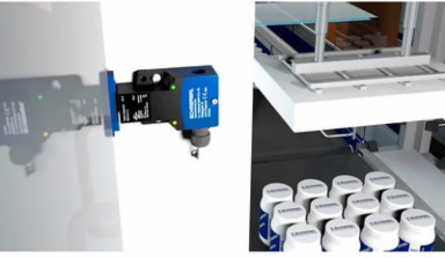

- RFID-technology for needs-based protection against tampering
- 3 different directions of actuation

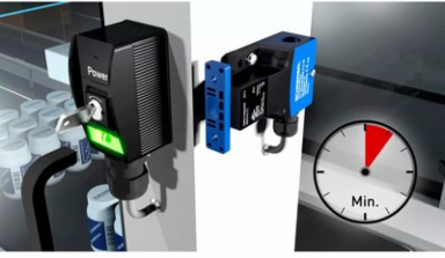

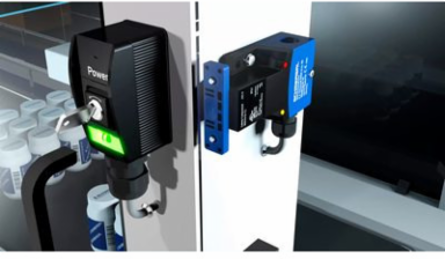

- Door stop with magnetic latching

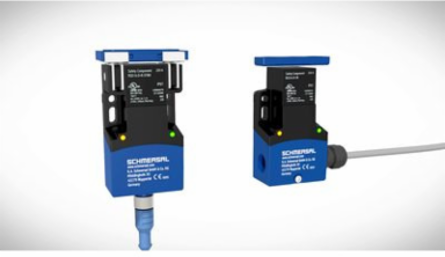

- Connection terminal or plug connection

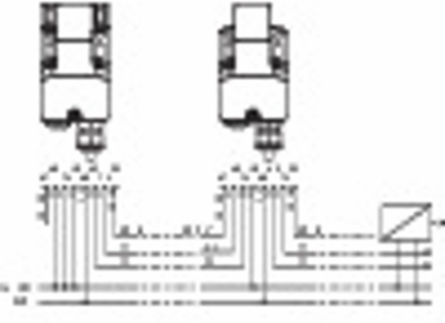

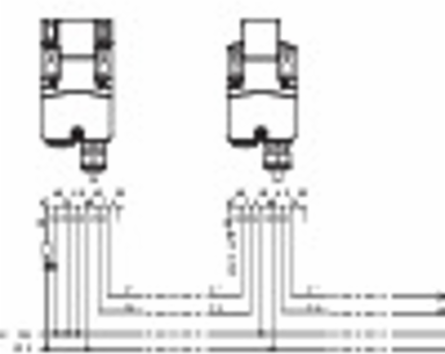

- Suitable for series-wiring
Documentation & Downloads
Specifications
Electrical data - Fail-safe digital outputs
- Rated operating current (safety outputs)
- 1,000 mA
- Versions
- p-type
- Current leakage I
- 0.5 mA
- Current, Utilisation category DC-12
- 1 A
- Current, Utilisation category DC-13
- 1 A
Output current, (fail-safe output), maximum1 A
Voltage drop U1 V
Voltage, Utilisation category DC-1224 VDC
Voltage, Utilisation category DC-1324 VDC
Safety appraisal
- Standards
- EN ISO 13849-1 | IEC 60947-5-3 | EN 62061 | IEC 61508
- Control category to EN13849
- 4
- Safety Integrity Level (SIL), suitable for applications in
- 3
Performance level, up toe
PFH-value6.30 x 10⁻¹¹ /h
Mission Time20 Year(s)
Electrical data
- Voltage type
- DC (direct current)
- Rated operating voltage, minimum
- 20.4 VDC
- Operating current
- 2,100 mA
- Switching frequency, approx.
- 1 Hz
No-load supply current I100 mA
Rated operating voltage, maximum26.4 VDC
Required rated short-circuit current to EN 60947-5-1100 A

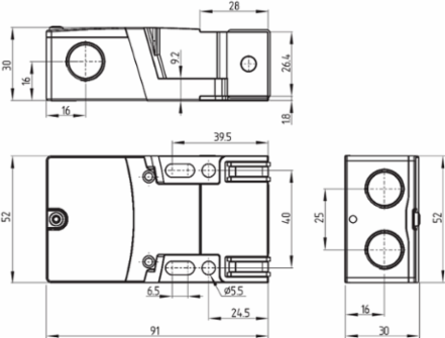

Mechanical data - Dimensions
- Length of sensor
- 91 mm
- Height of sensor
- 30 mm
Width of sensor52 mm
Scope of delivery
- Included in delivery
- Actuators must be ordered separately.
Ambient conditions - Insulation value
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution to VDE 01003

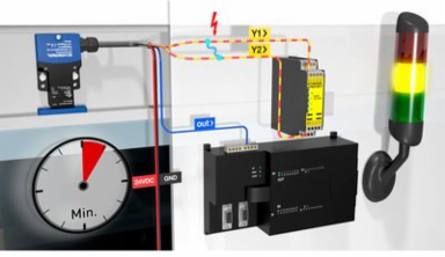

General data - Features
- Diagnostic output
- Yes
- Short-circuit recognition
- Yes
- Safety functions
- Yes
- Integral System Diagnostics, status
- Yes
- Number of semi-conductor outputs with signaling function
- 1
Short circuit detectionYes
Series-wiringYes
CascadableYes
Number of LEDs2
Number of fail-safe digital outputs2
General data
- Standards
- IEC 60947-5-3
- Coding level according to ISO 14119
- High
- Housing construction form
- Block
- Sensor topology
- Sensor for series wiring
- Active area
- Glass-fibre, reinforced thermoplastic
- Time to readiness, maximum
- 2,000 ms
- Duration of risk, maximum
- 200 ms
general informationIndividual coding, multiple teaching
Active principleRFID
Installation conditions (mechanical)not flush
Enclosure materialPlastic, glass-fibre reinforced thermoplastic, self-extinguishing
Gross weight275 g
Reaction time, maximum100 ms
Ambient conditions
- Degree of protection
- IP65 to EN 60529 | IP67 to EN 60529
- Ambient temperature, maximum
- +70 °C
- Storage and transport temperature, maximum
- +85 °C
- Protection rating
- 0
Ambient temperature, minimum-25 °C
Storage and transport temperature, minimum-25 °C
Restistance to shock30 g / 11 ms

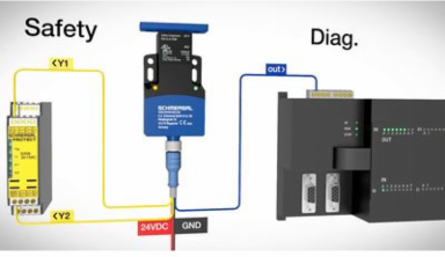

Electrical data - Diagnostic output
- Operating current
- 50 mA
- Voltage drop U
- 2 V
- Current, Utilisation category DC-12
- 0.05 A
- Current, Utilisation category DC-13
- 0.05 A
Versionsp-type
Voltage, Utilisation category DC-1224 VDC
Voltage, Utilisation category DC-1324 VDC
Mechanical data - Connection technique
- Terminal Connector
- Spring pulley connection
NoteThe cable section of the interconnecting cable must be observed for both wiring variants! Cable length and cable section alter the voltage drop depending on the output current

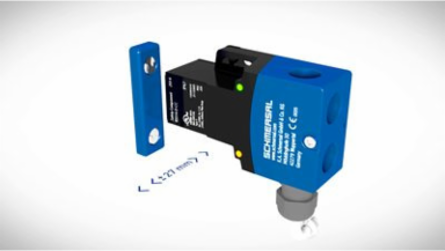

Mechanical data - Switching distances according IEC 60947-5-3
- Switch distance
- 15 mm
- Ensured switch distance "OFF" S
- 30 mm
Ensured switch distance "ON" S12 mm
Mechanical data
- Actuating panels
- front side | rear | from head
- Hysteresis (Switch distance), maximum
- 2 mm

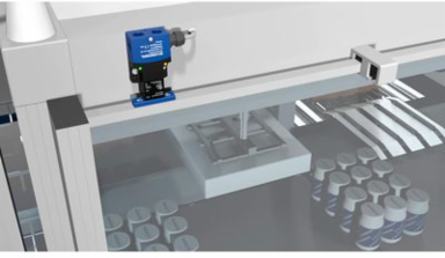

- Mounting
- 2 x M5, Cylinder head screw
Active arealateral | front side | cover-side
Repeat accuracy R R0.5 mm
Tightening torque of nuts, maximum2 Nm
Accessory
- Recommendation (actuator)
- RST16-1 | RST-U-2
Recommended safety switchgearPROTECT PSC1 | SRB-E-301ST | SRB-E-201LC
Electrical data - Electromagnetic compatibility (EMC)
- Interfering radiation
- IEC 61000-6-4
EMC ratingIEC 60947-3
Approval - Standards
- Certificates
- TÜV | cULus | EAC | FCC | IC
Status indication
- Note (LED switching conditions display)
- Multi-coloured LED: Green, Red | LED yellow: Operating condition | LED green: Supply voltage | LED red: Fault
