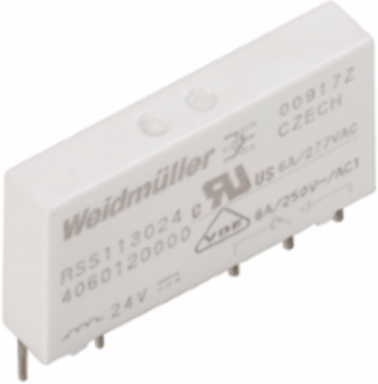

Weidmuller 1454430000 Relay Module, 1 CO Contact (AgNi), 24 V DC, 6 A Continuous Current, IP67
- MPN: 1454430000
- PPN: WDM-1454430000
CAD
$13.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TERMSERIES, Relay, Number of contacts: 1 CO contact AgNi, Rated control voltage: 24 V DC, Continuous current: 6 A, Plug-in connection
Specifications
General Data
- Test button
- No
- Colour
- white
Mechanical switch position indicatorNo
UL 94 flammability ratingV-0
Approvals
- Approvals
- cURus, EAC, VDE
- UL File Number Search
- E475330
ROHSConform
Dimensions And Weights
- Width
- 5 mm
- Height
- 28 mm
- Depth
- 15 mm
- Net weight
- 5.1 g
Width (inches)0.197 inch
Height (inches)1.102 inch
Depth (inches)0.591 inch
Connection Data
- Wire connection method
- Plug-in connection
Rated Data Ul
- Certificate No. (cURus)
- E475330
Contact Data
- Contact type
- 1 CO contact (AgNi)

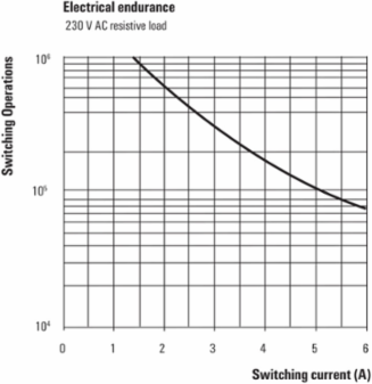

Mechanical service life10 x 106 switching cycles
Input
- Rated control voltage
- 24 V DC
- Power rating
- 170 mW
- Coil resistance
- 3390 Ω ± 15 %
Rated current DC7 mA
Pull-in/drop-out voltage, typ.18 V / 1.2 V DC
Classifications
- ETIM 6.0
- EC001437
- eClass 9.0
- 27-37-16-01
- eClass 10.0
- 27-37-16-01
ETIM 7.0EC001437
eClass 9.127-37-16-01
Output
- Rated switching voltage
- 250 V AC
- Max. switching voltage, DC
- 250 V
- Inrush current
- 20 A / 20 ms

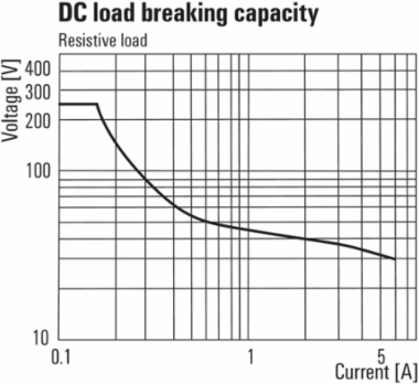

- DC switching capacity (resistive), max.
- 144 W @ 24 V
- Switch-off delay
- < 4 ms
- Max. switching frequency at rated load
- 0.1 Hz
Max. switching voltage, AC250 V
Continuous current6 A
AC switching capacity (resistive), max.1500 VA
Switch-on delay< 8 ms
Min. switching power1 mA @ 24 V, 10 mA @ 10 V, 100 mA @ 5 V
Insulation Coordination
- Protection degree
- IP67
- Impulse withstand voltage at input and output
- 6 kV (1.2/50 µs)
- Dielectric strength of open contact
- 1 kVeff / 1 min
Dielectric strength, Input/Output4 kVeff / 1 Min.
Creepage and clearance distance input – output≥ 5.5 mm
Temperatures
- Humidity
- 5...85 % rel. humidity, no condensation
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
Operating temperature, max.85 °C
Storage temperature, max.85 °C
Operating temperature-40 °C...85 °C
Further Details Of Approvals / Standards
- Certificate No. (cURus)
- E475330
