nVent Hoffman S404015SS Syspend Sanitary HMI Enclosure Type 4X, 15.75x15.75x5.91, Brushed, SS304
- MPN: S404015SS
- UPC: 783510193317
- PPN: HOF-S404015SS
- UNSPSC: 39121325
CAD
$1988.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

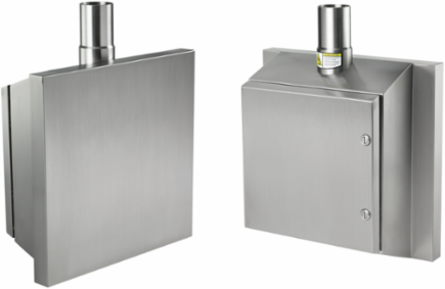

A stainless HMI enclosure designed for sanitary washdown environments that meets IP69K requirement. This Syspend Sanitary HMI Enclosure Type 4X, S404015SS item measures 15.75x15.75x5.91 inches with a material of SS304 finish Brushed.
Features
- Enclosure provides modern, flat-screen monitor-style aesthetics
- Integrated side handles allow for easy repositioning of enclosure
- Fully concealed silicone gasket area provides complete protection in washdown environments
- 20-degree sloped top facilitates runoff of water and cleaning solutions and prohibits the placement of objects on the top of the enclosure
- Slanted flange trough collar prohibits pooling of fluids along the top edge of the enclosure opening
- Enclosure can be flipped for either pendant or pedestal mounting
- Hinges are shielded by door
- Suspension arm adapter included to attach to Syspend Sanitary Suspension System and Syspend VHDS-Motion Arm
- Suspension arm adapter can be installed backwards to provide 40-degree tilt for pedestal applications
- Internal support plate provides extra rigidity for suspension mounting
- H2Omit Vent Drain can be installed on the flat area to provide means of removing condensed moisture from the enclosure
- Seams continuously welded and ground smooth
- Bonding provision on door; grounding stud on body
- Door secured with two stainless steel quarter-turn latches with flush slotted insert
- Panel studs on door fit optional NEMA-style panels
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Yes, BABA Compliant
- Width (W)
- 400
- Protection Rating
- NEMA Type 12
- Finish
- Brushed #3
- IP Rating
- IP66
- Weight
- 24.1
- Material
- SS Type 304
Height (H)400
Depth (D)150
Product FamilySyspend
Thickness (T)1.2
NEMA Rating4X Watertight, corrosion-resistant
Sub BrandSyspend
Size15.75x15.75x5.91 in
