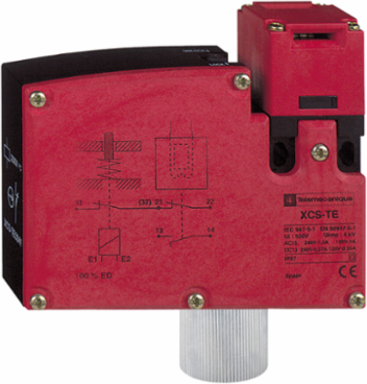

Telemecanique Sensors XCSTE5533 Safety interlock 240 VAC 5 A t XCS
- MPN: XCSTE5533
- PPN: TES-XCSTE5533
- UNSPSC: 39122213
CAD
$447.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Safety interlock 240 VAC 5 A t XCS
Documentation & Downloads
Specifications
Key Specifications
- Enclosure Type
- dust and damp proof enclosure indoor/outdoor || corrosion resistance enclosure indoor/outdoor
Device Short NameXCSTE
Complementary
- Height
- 3.67-3.67 in
- Actuator
- key
- Enclosure Material
- Plastic
- Electromagnet Interlocking
- locking on energisation and unlocking on de-energisation of solenoid
- Depth
- 1.3 in
- Number Of Poles
- 2
[Us] Rated Supply Voltage120 V
Locking Options Descriptionwith locking of actuator, unlocking by key operated lock || with interlocking, locking by solenoid
Contact Operationslow-break, break before make
Line Rated Current6 A
Permissible Voltage300 V AC
Environment
- Ambient Air Temperature For Operation
- -13-140 °F
- Ip Degree Of Protection
- IP67
Nema Degree Of ProtectionNEMA 4/4X/12
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI110603EN
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Environmental DisclosureENVPEP110606EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
