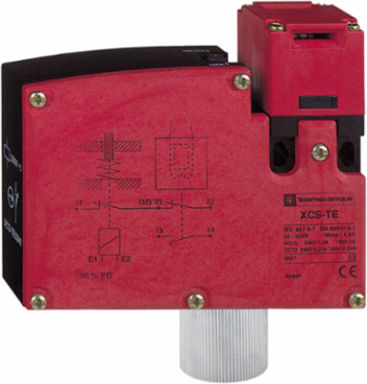

Telemecanique Sensors XCSTE5513 Safety interlock 240 VAC 5 A t XCS
- MPN: XCSTE5513
- PPN: TES-XCSTE5513
- UNSPSC: 39122213
CAD
$349.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the XCS range, an offer of safety limit switches. This safety switch has 1 NO and 1 NC, slow break contacts. It is a switch with a rated supply voltage of 24V and a rated current of 6A. It is an IP67 and NEMA 4/4X/12 rated product. The enclosure is made of plastic. Its dimensions are 33.02mm (depth) x 93.22mm (height). As far as safety is concerned all dangerous machines in all sectors are involved. The XCS safety switches is one of the most comprehensive ranges of industrial safety switches on the market, providing a range of options for most machine applications. XCS safety switches are designed for the protection of operators, by controlling the safe opening and interlocking of guards and covers in installations.
Documentation & Downloads
Specifications
Key Specifications
| Enclosure Type | dust and damp proof enclosure indoor/outdoor || corrosion resistance enclosure indoor/outdoor |
|---|
| Device Short Name | XCSTE |
|---|
Complementary
| Contacts Type And Composition | 1 NO + 1 NC |
|---|---|
| [Us] Rated Supply Voltage | 24 V |
| Locking Options Description | with locking of actuator, unlocking by key operated lock || with interlocking, locking by solenoid |
| Contact Operation | slow-break, break before make |
| Line Rated Current | 6 A |
| Permissible Voltage | 300 V AC |
| Height | 3.67-3.67 in |
|---|---|
| Actuator | key |
| Enclosure Material | Plastic |
| Electromagnet Interlocking | locking on energisation and unlocking on de-energisation of solenoid |
| Depth | 1.3 in |
| Number Of Poles | 2 |
Environment
| Ambient Air Temperature For Operation | -13-140 °F |
|---|---|
| Ip Degree Of Protection | IP67 |
| Nema Degree Of Protection | NEMA 4/4X/12 |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Circularity Profile | ENVEOLI110603EN |
|---|---|
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110606EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
