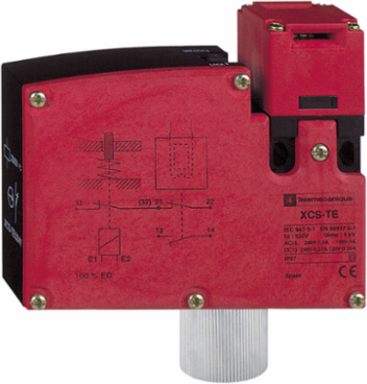

Telemecanique Sensors XCSTE7333 Safety interlock 240 VAC 5 A t XCS
- MPN: XCSTE7333
- PPN: TES-XCSTE7333
CAD
$397.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Safety interlock 240 VAC 5 A t XCS
Documentation & Downloads
Specifications
Key Specifications
| Enclosure Type | dust and damp proof enclosure indoor/outdoor || corrosion resistance enclosure indoor/outdoor |
|---|
| Device Short Name | XCSTE |
|---|
Complementary
| Contacts Type And Composition | 2 NC |
|---|---|
| [Us] Rated Supply Voltage | 120 V |
| Locking Options Description | with locking of actuator, unlocking by key operated lock |
| Contact Operation | slow-break |
| [In] Rated Current | 6 A |
| Permissible Voltage | 300 V AC |
| Height | 3.67-3.67 in |
|---|---|
| Actuator | key |
| Enclosure Material | plastic |
| Electromagnet Interlocking | locking on de-energisation and unlocking on energisation of solenoid |
| Depth | 1.3 in |
| Number Of Poles | 2 |
Environment
| Ambient Air Temperature For Operation | -13-140 °F |
|---|---|
| Ip Degree Of Protection | IP67 |
| Nema Degree Of Protection | NEMA 4/4X/12 |
|---|
Offer Sustainability
| Circularity Profile | ENVEOLI110603EN |
|---|---|
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110606EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
