Weidmuller 1060730000 SAI-Y-4S-M12/M12
- MPN: 1060730000
- PPN: WDM-1060730000
CAD
$20.81
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

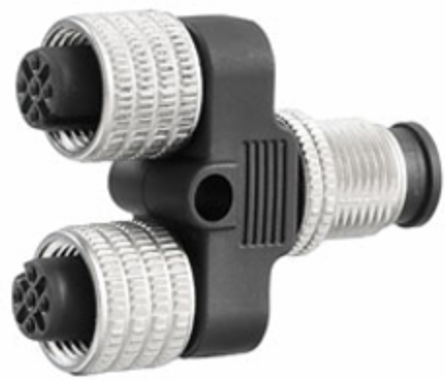

Y-plug, M12 / M12
Documentation & Downloads
Specifications
General Data
- Coding
- A
- Contact material, pin
- CuZn
- Contact surface
- Au (Gold)
- Pollution severity
- 3
- Rated current
- 4 A
- Shield connection
- No
Connection threadM12 / M12
Contact material, socketCuSn
Housing main materialPBT
Protection degreeIP67
Rated voltage24 V
Temperature range of housing-25…+90 °C
Approvals
- Approvals
- EAC
ROHSConform

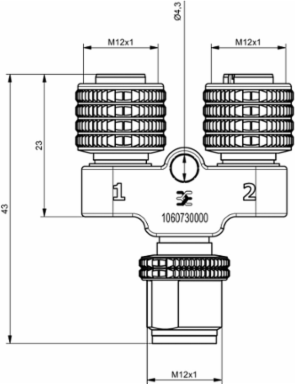

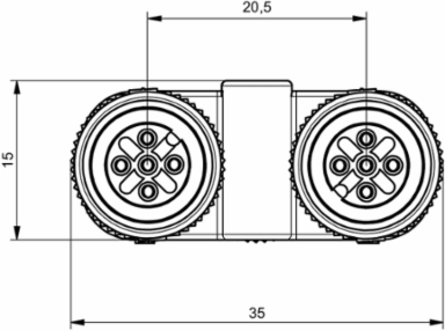

Dimensions And Weights
- Net weight
- 23 g

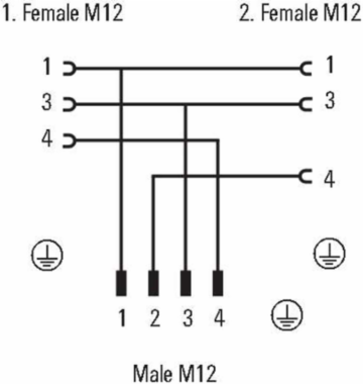

Connection Data
- Group outlet - plug-in connector
- M12 pin
- Single outlet 2 - plug-in connector
- M12 socket
Single outlet 1 - plug-in connectorM12 socket
Tightening torqueM12: 0.8 - 1.2 Nm
Classifications
- ETIM 6.0
- EC002925
- eClass 9.0
- 27-44-01-06
- eClass 10.0
- 27-44-01-06
ETIM 7.0EC002925
eClass 9.127-44-01-06
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
