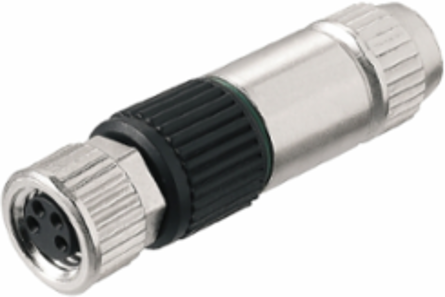

Weidmuller 1784050001 SAIB-4-IDC-M8 small
- MPN: 1784050001
- PPN: WDM-1784050001
CAD
$12.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Sockets prefabricated to customer spec., M8, Female socket, straight
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Net weight
- 15 g
Standards
- Connector standard
- IEC 61076-2-104
Classifications
- ETIM 6.0
- EC002062
- eClass 9.0
- 27-44-01-02
- eClass 10.0
- 27-44-01-02
ETIM 7.0EC002635
eClass 9.127-44-01-03
UNSPSC30-21-18-10
Technical Data Customisable Plug-In Connectors
- Cable diameter, max.
- 5.4 mm
- Coding
- none
- Connection cross-section, min.
- 0.14 mm²
- Housing main material
- CuZn
- Number of poles
- 4
- Pollution severity
- 3
- Rated current
- 4 A
- Shield connection
- No
- Threaded ring material
- Diecast zinc
Cable diameter, min.3.2 mm
Connection cross-section, max.0.34 mm²
Contact surfacetinned
Insulation strength108 Ω
Plugging cycles≥ 50
Protection degreeIP67
Rated voltage32 V
Temperature range of housing-25…+85 °C
Type of connectionInsulation displacement connection
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature range, max.
- 85 °C
- Operating temperature, max.
- 85 °C
Operating temperature range, min.-25 °C
Operating temperature, min.-25 °C
