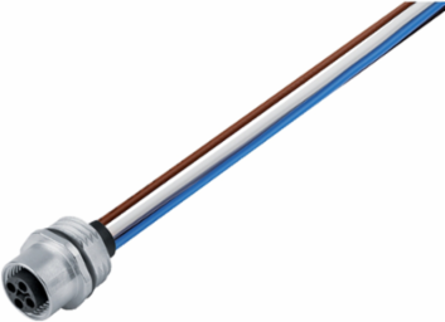

Weidmuller 1467960000 SAIE-M12B-4-T-0.2U-M16
- MPN: 1467960000
- PPN: WDM-1467960000
CAD
$18.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Built-in plugs, M12, Female socket, straight, M 16, Number of poles: 4, Front mounting
Documentation & Downloads
Specifications
General Data
| Cable glands | M 16 |
|---|---|
| Connection thread | M12 |
| Core cross-section | 16 AWG |
| Number of poles | 4 |
| Protection degree | IP67, when screwed in |
| Rated voltage | 63 V |
| Temperature range of housing | -40 … +85 ° C |

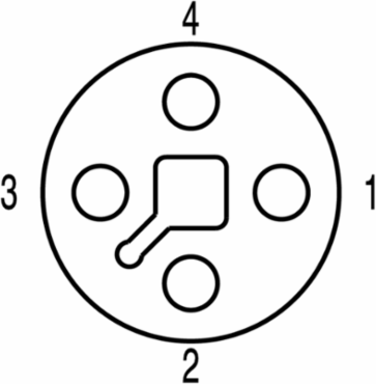

| Coding | T |
|---|---|
| Contact surface | Gold-plated |
| Housing main material | Zinc diecast |
| Plugging cycles | ≥ 100 |
| Rated current | 12 A |
| Strand / cable length | 0.2 m |
Approvals
| Approvals | cURus |
|---|---|
| UL File Number Search | E307231 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 27 g |
|---|
Standards
| Connector standard | IEC 61076-2-111 |
|---|
| Certificate No. (cURus) | E307231 |
|---|
Classifications
| ETIM 6.0 | EC002635 |
|---|---|
| eClass 9.0 | 27-44-01-02 |
| eClass 10.0 | 27-44-01-02 |
| ETIM 7.0 | EC002635 |
|---|---|
| eClass 9.1 | 27-44-01-03 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
