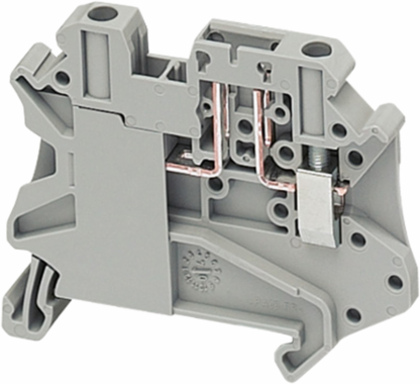

Schneider Electric NSYTRV42TB Terminal Block 2 Points 4mm² Grey, Rated Current 20A, Width 6.2mm
- MPN: NSYTRV42TB
- PPN: SCH-NSYTRV42TB
CAD
$8.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Schneider Electric's terminal block is engineered for efficient connectivity in automation and control applications. With a compact width of just 6.2mm, it offers two points for connections at a rated current of 20A, catering to various wiring needs with ease. This grey terminal block not only ensures reliable performance but also contributes to organized installations, making it an essential component for seamless electrical networks. Ideal for any project that demands precision and dependability, it exemplifies Schneider Electric's commitment to quality in terminal blocks and accessories.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 20 A EN/IEC 60947-7-1, 16 A CSA, 16 A cURus
- Fuse Size
- 5 x 20 mm, 6 x 32 mm
- Nominal Cross Section
- 4 mm²
- Ambient Air Temperature for Operation
- -40 to 130 °C
- Height
- 47.5 mm
- Number of Terminals
- 2
- Connections - Terminals
- 1 x screw terminal upstream, 1 x screw terminal downstream
- Mounting Mode
- clip-on
- Cable Cross Section
- 0.14-6 mm² flexible without cable end, 0.14-6 mm² solid
- Flame Retardance
- V0 0.8 mm UL 94
- Resistivity
- 10000 MΩ·m IEC 60093
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250
- Product Certifications
- CSA, cURus, EAC
- Halogen Content Performance
- Halogen free plastic parts
- Weee
- EU compliant disposal
- Device Short Name
- TRV
- Product Or Component Type
- Terminal block
- Range Compatibility
- Prisma G, Prisma P, Prisma PH, Prisma Pack, Spacial, Kaedra, Pragma, TeSys
- Associated Connection Component
- Blade, diode, cylindrical fuse
- Terminal Block Level
- 1
- Warranty
- 18 months
Rated Operational Voltage500 V EN/IEC 60947-7-1, 600 V CSA, 600 V cURus
Tightening Torque0.6-0.8 N.m
Dielectric Strength1000 V IEC 60243-1
Length57.8 mm
Width6.2 mm
Terminal Block TypeRemovable carrier disconnect
Connection Positionsideways
Wire Stripping Length9 mm (0.35 in)
MaterialPolyamide 6/6 insulating case
Surface Resistance1000 GΩ IEC 60093
Dielectric Constant3.7 at 1 MHz
Creep Resistance500 CTI (> 400 kB) IEC 60093
ComplianceCSA, cURus, EAC, REACh, RoHS, Mercury free, Halogen free
Mercury FreeYes
ColorGray
Product CompatibilitySpacial enclosures
RangeLinergy
Tool TypeConnection screwdriver, disconnection screwdriver
Net Weight12.9 g
Number Of Measurement Input1
