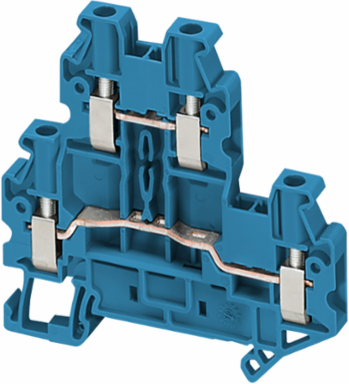

Schneider Electric NSYTRV24DBL Linergy TR Terminal Block, Blue, 2.5mm², 4 Points, Set of 10
- MPN: NSYTRV24DBL
- PPN: SCH-NSYTRV24DBL
CAD
$7.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric Linergy TR Terminal Block in blue offers a reliable solution for electrical connections, featuring four points and accommodating 2.5mm² wires. This set of ten terminal blocks is designed to enhance efficiency and organization in automation and control applications. With robust construction and designed for seamless integration into control panels, these terminal blocks not only streamline wiring processes but also ensure secure connectivity, making them an essential choice for professionals in the field.
Documentation & Downloads
Specifications
Additional
- Rated Operational Voltage
- 600 V CSA, 500 V EN/IEC 60947-7-1, 352 V ATEX Exe II Ex II 2 GD, 600 V cURus
- Number of Measurement Inputs
- 4
- Tightening Torque
- 0.5-0.6 N·m (4.43-5.31 lbf·in)
- Length
- 69.9 mm (2.75 in)
- Width
- 5.2 mm (0.20 in)
- Terminal Block Level
- 2
- Connections - Terminals
- 1 x screw terminal upstream M3, 1 x screw terminal downstream M3
- Material
- Polyamide 6/6 (insulating case), Copper alloy (connector, screw, commoning link), Chromium-nickel steel (spring)
- Dielectric Constant
- 3.7 at 1 MHz
- Resistivity
- 10000 MΩ·m IEC 60093
- Creep Resistance
- 500 CTI (> 400 kB) IEC 60093
- Ambient Air Temperature for Operation
- -40 to 130 °C (-40 to 266 °F) IEC 60216-1
- EU RoHS Directive
- Compliant with Exemptions
- RoHS Exemption Information
- Yes
- Reach Regulation
- Contains SVHC above threshold
Rated Current24 A EN/IEC 60947-7-1, 20 A cURus, 20 A CSA, 20 A ATEX Exe II Ex II 2 GD
Cable Cross Section0.14-4 mm² solid/flexible with or without cable end (0.2-2.5 mm² flexible with cable end)
Wire Stripping Length9 mm (0.35 in)
Height65 mm (2.56 in)
Number Of Terminals2
Connection PositionSideways
Nominal Cross Section2.5 mm²
Flame RetardanceV0 0.8 mm UL 94
Dielectric Loss0.01 at 1 MHz IEC 60250
Surface Resistance1000 GΩ IEC 60093
Dielectric Strength1000 V IEC 60243-1
ComplianceGL, ATEX, CSA, EAC, LR, DNV, IECEx, cURus
Mercury FreeYes
Halogen Content PerformanceHalogen free plastic parts
Country of OriginGermany
