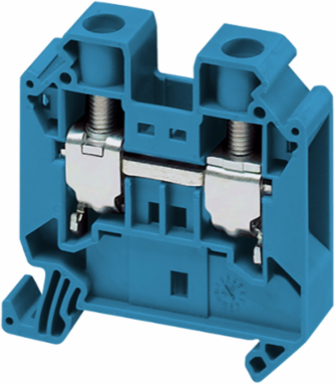

Schneider Electric NSYTRV162BL Linergy TR Terminal Block, Blue, 16 mm², Passthrough, 2 Points, Set of 50
- MPN: NSYTRV162BL
- PPN: SCH-NSYTRV162BL
CAD
$12.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This terminal block from Schneider Electric is designed for seamless integration in automation and control applications. The NSYTRV162BL model features a passthrough design with two points, offering a reliable solution for connecting wires with a cross-section of 16 mm². Each set includes 50 blocks, ensuring you have ample supply for various projects. Engineered for high performance, this blue terminal block not only enhances system organization but also provides secure electrical connections suitable for diverse industrial environments.
Documentation & Downloads
Specifications
Additional
- Rated Operational Voltage
- 1000 V EN/IEC 60947-7-1 || 600 V CSA || 690 V ATEX Exe II Ex II 2 GD || 600 V cURus
- Tightening Torque
- 2.5-3 N.m
- Length
- 55.5 mm (2.19 in)
- Width
- 12.2 mm (0.48 in)
- Number of Measurement Input
- 2
- Terminal Block Type
- Passthrough
- Material
- Polyamide 6/6 insulating case, Copper alloy connector and screw, Copper alloy commoning link, Chromium-nickel steel spring
- Surface Resistance
- 1000 GΩ IEC 60093 VDE 0303-T30
- Resistivity
- 10000 MΩ.m IEC 60093 VDE 0303-T30
- Dielectric Strength
- 1000 V IEC 60243-1
- Ambient Air Temperature for Operation
- -40 to 130 °C IEC 60216-1 VDE 0304-T21
- Compliance
- EU RoHS Compliant, REACh Free of SVHC, Halogen Free
- Country of Origin
- Turkey
- Mounting Mode
- Clip-on
- Device Short Name
- TRV
Rated Current76 A EN/IEC 60947-7-1 || 85 A cURus || 85 A CSA || 73 A ATEX Exe II Ex II 2 GD
Wire Stripping Length14 mm
Height55 mm (2.17 in)
Number of Terminals2
Connection PositionSideways
Cable Cross Section0.2-10 mm² flexible with cable end, 0.2-16 mm² solid with cable end, 1.5-25 mm² solid or flexible without cable end
Flame RetardanceV0 0.8 mm UL 94
Dielectric Constant3.7 at 1 MHz
Creep Resistance500 CTI (> 400 kB) IEC 60093 VDE 0303-T30
Dielectric Loss0.01 at 1 MHz IEC 60250 VDE 0303-T4
Product CertificationsATEX, DNV, VDE, EAC, cURus, CSA, GL, LR, IECEx
ColorBlue
Tool TypeConnection screwdriver, Disconnection screwdriver
Product CompatibilitySpacial enclosures
Warranty18 months
