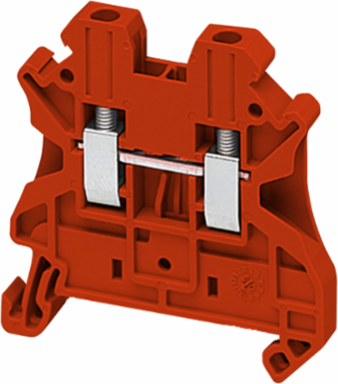

Schneider Electric NSYTRV22RD Linergy TR Terminal Block, Red, 2.5mm², Passthrough, Set of 50
- MPN: NSYTRV22RD
- PPN: SCH-NSYTRV22RD
CAD
$3.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Schneider Electric's Linergy TR Terminal Block offers reliable connectivity solutions for your automation and control needs. Designed for passthrough functionality, this terminal block is perfect for a variety of applications, ensuring seamless electrical connections. Each set contains 50 red 2.5 mm² blocks, crafted to facilitate efficient installation while enhancing organization in your wiring setups. Ideal for professionals and enthusiasts alike, these terminal blocks provide a robust and versatile option for managing your electrical projects with confidence.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 24 A EN/IEC 60947-7-1, 22 A ATEX Exe II Ex II 2 GD, 20 A cURus, 20 A CSA
- Tightening Torque
- 0.5-0.6 N.m
- Length
- 47.7 mm (1.88 in)
- Height
- 47.5 mm (1.87 in)
- Connection Position
- sideways
- Creep Resistance
- 500 CTI (> 400 kB) IEC 60093
- Surface Resistance
- 1000 GΩ IEC 60093
- Dielectric Strength
- 1000 V IEC 60243-1
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250
- Terminal Block Type
- passthrough
- Wire Stripping Length
- 9 mm (0.35 in)
- Country of Origin
- Germany (DE)
- Halogen Content Performance
- Halogen free plastic parts
Rated Operational Voltage1000 V EN/IEC 60947-7-1, 600 V CSA, 690 V ATEX Exe II Ex II 2 GD, 600 V cURus
Cable Cross Section0.14-4 mm² solid with cable end, 0.2-2.5 mm² flexible with cable end, 0.14-4 mm² solid without cable end, 0.14-4 mm² flexible without cable end
Width5.2 mm (0.20 in)
Number of Connections2
MaterialPolyamide 6/6 (insulating case), Copper alloy (connector, screw, commoning link), Chromium-nickel steel (spring)
Resistivity10000 MΩ·m IEC 60093
Flame RetardanceV0 0.8 mm UL 94
Dielectric Constant3.7 at 1 MHz
Net Weight8.2 g (0.29 oz)
Nominal Cross Section2.5 mm²
Colorred
ComplianceLR, DNV, EAC, cURus, IECEx, GL, VDE, ATEX, CSA, RoHS Compliant with Exemptions, Mercury Free, China RoHS
Eu Rohs DirectiveCompliant with Exemptions
