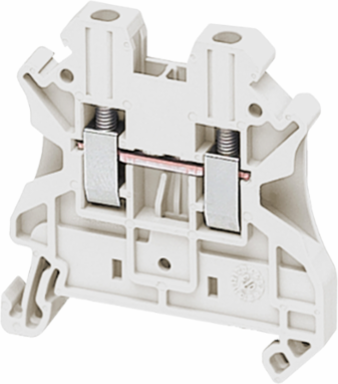

Schneider Electric NSYTRV22WH Linergy TR Terminal Block, 2 Points, 2.5mm², Set of 10
- MPN: NSYTRV22WH
- PPN: SCH-NSYTRV22WH
CAD
$3.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for optimal connectivity in automation and control applications, this set of terminal blocks from Schneider Electric provides reliable and efficient performance. Each block accommodates two connection points with a capacity of 2.5mm², ensuring that your electrical installations maintain a tidy and organized layout. Designed to streamline wiring processes, these terminal blocks are essential for professionals seeking dependable components in their electrical systems. With a pack of ten, you can easily manage your projects while ensuring robust and efficient connections throughout.
Documentation & Downloads
Specifications
Additional
- Rated Operational Voltage
- 1000 V EN/IEC 60947-7-1, 600 V CSA, 690 V ATEX Exe II Ex II 2 GD, 600 V cURus
- Nominal Cross Section
- 2.5 mm²
- Number of Terminals
- 2
- Length
- 47.7 mm (1.88 in)
- Height
- 47.5 mm (1.87 in)
- Connection Position
- Sideways
- Cable Cross Section
- 0.14–4 mm² solid, 0.2–2.5 mm² flexible, with or without cable end
- Wire Stripping Length
- 9 mm (0.35 in)
- Material
- Polyamide 6/6 (insulating case), Copper alloy (connector, screw, commoning link), Chromium-nickel steel (spring)
- Dielectric Loss
- 0.01 at 1 MHz
- Surface Resistance
- 1000 GΩ IEC 60093, VDE 0303-T30
- Flame Retardance
- V0 0.8 mm UL 94
- Product Certifications
- ATEX, IEC Ex, DNV, EAC, GL, LR, CSA, VDE, cURus
- Color
- White
Rated Current24 A EN/IEC 60947-7-1, 22 A ATEX Exe II Ex II 2 GD, 20 A cURus, 20 A CSA
Terminal Block TypePassthrough
Ambient Air Temperature for Operation-40 to 130 °C (-40 to 266 °F) IEC 60216-1, VDE 0304-T21
Width5.2 mm (0.20 in)
Net Weight8.2 g (0.29 oz)
Mounting ModeClip-on
Connections - Terminals1 x screw terminal upstream M3, 1 x screw terminal downstream M3
Tightening Torque0.5–0.6 N·m (4.43–5.31 lbf·in)
Dielectric Constant3.7 at 1 MHz
Resistivity10000 MΩ·m
Creep Resistance500 CTI (> 400 kB) IEC 60093, VDE 0303-T30
Dielectric Strength1000 V IEC 60243-1
ComplianceRoHS Compliant with Exemptions, Mercury Free, China RoHS
Country of OriginGermany
