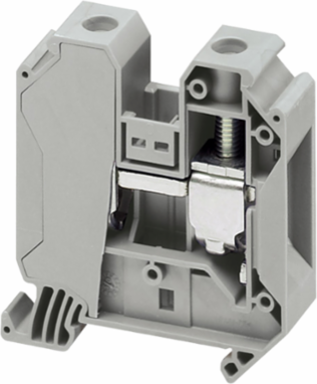

Schneider Electric NSYTRV352 Linergy TR Terminal Block 35mm², 125A, Set of 50
Schneider Electric NSYTRV352 Linergy TR Terminal Block 35mm², 125A, Set of 50
- MPN: NSYTRV352
- PPN: SCH-NSYTRV352
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$17.11/ EA
Description
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 35 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1 and 690V conforming to ATEX Exe II Ex II 2 GD. The rated current is 125A conforming to EN/IEC 60947-7-1, 150A conforming to CSA/cURus and 126A conforming to ATEX Exe II Ex II 2 GD. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, GL, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).
Specifications
Environment
- Product Certifications
- ATEX || IEC-Ex || VDE || EAC || GL || CSA || cURus
- Dielectric Strength
- 1000 V IEC 60243-1
Ambient Air Temperature For Operation-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2309018EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Halogen Content PerformanceHalogen free plastic parts product
Complementary
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
- Number Of Terminals
- 2
- Number Of Measurement Input
- 2
- Net Weight
- 61 g
- Connections - Terminals
- 1 x screw terminal upstream || 1 x screw terminal downstream
- Resistivity
- 10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
- Cable Cross Section
- 1.5-50 mm², flexible without cable end || 1.5-50 mm², solid
- Surface Resistance
- 1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
- Range Compatibility
- Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
- Product Compatibility
- Spacial enclosures
- Creep Resistance
- 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
Height65.7 mm
Connection Positionsideways
Tool Typeconnection screwdriver || disconnection screwdriver
Flame RetardanceV0 0.8 mm UL 94
Wire Stripping Length18 mm
Dielectric Constant3.7 at 1 MHz
Materialpolyamide 6/6: insulating case
Width16 mm
Tightening Torque3.2-3.7 N.m
[In] Rated Current125-125 A EN/IEC 60947-7-1 || 150-150 A cURus || 150-150 A CSA || 126-126 A ATEX Exe II Ex II 2 GD
[Ue] Rated Operational Voltage1000 V EN/IEC 60947-7-1 || 600 V CSA || 690 V ATEX Exe II Ex II 2 GD || 600 V cURus
Specifications
- Terminal Block Type
- passthrough
- Product Name
- Linergy TR
- Range
- Linergy
- Terminal Block Level
- 1
- Quantity Per Set
- set of 50
- Device Short Name
- TRV
Product Or Component Typeterminal block
Length60.2 mm
Mounting Modeclip-on
Nominal Cross Section35 mm²
Colourgrey
