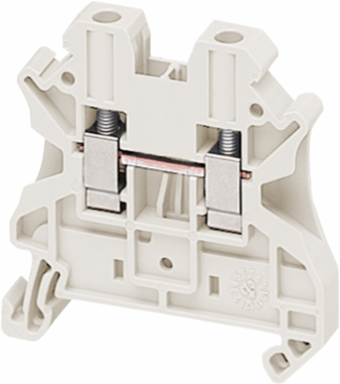

Schneider Electric NSYTRV42WH Linergy TR White Terminal Block, 4 mm², Passthrough, Set of 10
- MPN: NSYTRV42WH
- PPN: SCH-NSYTRV42WH
CAD
$3.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Engineered for efficiency in automation and control applications, the Linergy TR White Terminal Block from Schneider Electric facilitates seamless electrical connections. Each block in this set of 10 supports a cross-section of 4 mm², making it an ideal choice for various passthrough wiring configurations. Its robust design ensures reliability and ease of installation, allowing for an organized and clutter-free panel. With a commitment to quality and performance, these terminal blocks are a vital addition for any control system requiring dependable connectivity.
Documentation & Downloads
Specifications
Additional
- Rated Operational Voltage
- 1000 V EN/IEC 60947-7-1, 600 V CSA, 690 V ATEX Exe II Ex II 2 GD, 600 V cURus
- Nominal Cross Section
- 4 mm²
- Voltage Rating
- 600 V
- Dielectric Constant
- 3.7 at 1 MHz
- Surface Resistance
- 1000 GΩ IEC 60093, VDE 0303-T30
- Rated Operational Voltage
- 1000 V EN/IEC 60947-7-1
- Flame Retardance
- V0 0.8 mm UL 94
- Width
- 6.2 mm (0.24 in)
- Number of Connections
- 2
- Mounting Mode
- Clip-on
- Wire Stripping Length
- 9 mm (0.35 in)
- Material
- Polyamide 6/6 insulating case, copper alloy connector and screw, chromium-nickel steel spring
- Product Certifications
- cURus, CSA, ATEX, LR, EAC, GL, DNV, IECEx, VDE
- Country of Origin
- China
Rated Current32 A EN/IEC 60947-7-1, 30 A CSA, 30 A ATEX Exe II Ex II 2 GD, 30 A cURus
Tightening Torque0.6-0.8 N.m (5.31-7.08 lbf.in)
Dielectric Strength1000 V IEC 60243-1
Dielectric Loss0.01 at 1 MHz IEC 60250, VDE 0303-T4
Creep Resistance500 CTI (> 400 kB) IEC 60093, VDE 0303-T30
Ambient Air Temperature For Operation-40 to 130 °C (-40 to 266 °F) IEC 60216-1, VDE 0304-T21
Length47.7 mm (1.88 in)
Height47.5 mm (1.87 in)
Connection PositionSideways
Wire Size Range0.14-6 mm² solid with cable end, 0.2-6 mm² flexible without cable end, 26 AWG to 10 AWG
Net Weight9.4 g
Terminal Block TypePassthrough
ColourWhite
