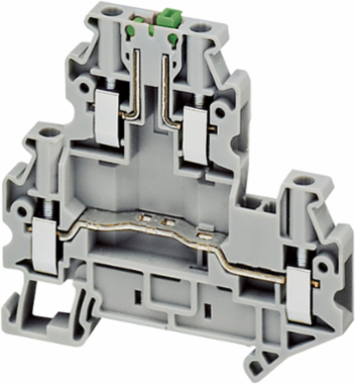

Schneider Electric NSYTRV42SCD Terminal block, Linergy TR, screw type, knife disconnect, double level, 4 points, 4mm², grey

Terminal block, Linergy TR, screw type, knife disconnect, double level, 4 points, 4mm², grey
  • MPN: NSYTRV42SCD
  • PPN: SCH-NSYTRV42SCD

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
  • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$20.46/ EA

    Description

    Terminal block, Linergy TR, screw type, knife disconnect, double level, 4 points, 4mm², grey

    Specifications

    Environment

    Product Certifications
    EAC || CSA || cURus
    Dielectric Strength
    1000 V IEC 60243-1
    Ambient Air Temperature For Operation-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21

    Contractual warranty

    Warranty
    18 months

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP2309018EN
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    China Rohs Regulation
    Product out of China RoHS scope. Substance declaration for your information
    Eu Rohs Directive
    Compliant with Exemptions
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Circularity ProfileN/A
    Halogen Content PerformanceHalogen free plastic parts product

    Complementary

    Dielectric Loss
    0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
    Number Of Terminals
    2
    Cable Cross Section
    0.14-6 mm², flexible without cable end || 0.14-6 mm², solid
    Number Of Measurement Input
    2
    Net Weight
    2.7 g
    Wire Stripping Length
    9 mm
    Dielectric Constant
    3.7 at 1 MHz
    Surface Resistance
    1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
    Range Compatibility
    Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
    Product Compatibility
    Spacial enclosures
    Creep Resistance
    500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
    Height65 mm
    Connections - Terminals1 x screw terminal upstream || 1 x screw terminal downstream
    Connection Positionsideways
    Tool Typeconnection screwdriver || disconnection screwdriver
    Flame RetardanceV0 0.8 mm UL 94
    Resistivity10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
    Materialpolyamide 6/6: insulating case
    Width6.2 mm
    Tightening Torque0.6-0.8 N.m
    [In] Rated Current30-30 A EN/IEC 60947-7-1 || 30-30 A CSA || 30-30 A cURus
    [Ue] Rated Operational Voltage500 V EN/IEC 60947-7-1 || 300 V CSA || 300 V cURus

    Specifications

    Terminal Block Type
    blade disconnect
    Product Name
    Linergy TR
    Range
    Linergy
    Terminal Block Level
    2
    Quantity Per Set
    set of 50
    Device Short Name
    TRV
    Product Or Component Typeterminal block
    Length69.9 mm
    Mounting Modeclip-on
    Nominal Cross Section4 mm²
    Colourgrey
