Schmersal 101210747 Universal Gateway with EtherNet IP, 100 mm Height, IP20 Protection
- MPN: 101210747
- PPN: SCM-101210747
CAD
$1933.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

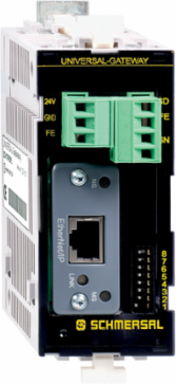

Universal Gateway with EtherNet IP, 100 mm Height, IP20 Protection
Features
- UNIVERSAL Gateway for the series-wiring of the diagnostic signals of safety
- switchgear with integrated SD interface.
- Comprehensive volumes of status and diagnostic data of the SD devices are transmitted to the control system through the field bus interface.
- Series-wiring of the diagnostic lines of max. 31 safety switchgear
- Series-wiring of different devices possible
- Reduced wiring efforts and costs as a result of the series-wiring of the safety channels and the diagnostic cables in the field.
- Automatic addressing of the safety switchgear in the SD interface
Documentation & Downloads
Specifications
Key Specifications
| Width | 50 mm |
|---|---|
| Depth | 80 mm |
| Height | 100 mm |
|---|
Electrical data
| Operating voltage | 24 VDC -15 % / +20 % (stabilised PELV power supply) |
|---|---|
| Operating current | 500 mA |
| Rated operating voltage | 24 VDC |
|---|
Mechanical data - Dimensions
| Width | 50 mm |
|---|---|
| Depth | 80 mm |
| Height | 100 mm |
|---|
Ambient conditions - Insulation values
| Rated insulation voltage U | 32 V |
|---|---|
| Overvoltage category | II |
| Rated impulse withstand voltage U | 0.5 kV |
|---|---|
| Degree of pollution | 2 |
General data - Features
| Integral system diagnostics, status | Yes |
|---|
| Number of LEDs | 1 |
|---|
General data
| Gross weight | 340 g |
|---|
Other data
| Note (applications) | Safety sensor | Guard system |
|---|
Ambient conditions
| Degree of protection of the enclosure | IP20 |
|---|---|
| Storage and transport temperature, minimum | -25 °C |
| Relative humidity, minimum | 30 % |
| Note (Relative humidity) | non-condensing |
| Restistance to shock | 10 g |
| Ambient temperature | +0 ... +55 °C |
|---|---|
| Storage and transport temperature, maximum | +75 °C |
| Relative humidity, maximum | 85 % |
| Resistance to vibrations | 10 ... 57 Hz, Amplitude 0.35 mm | 57 ... 150 Hz, with 5 g |
Mechanical data - Connection technique
| Termination | Cage clamps |
|---|
Electrical data - Communication protocols
| Feldbus Protokoll | EtherNet IP |
|---|
Mechanical data
| Mounting | Snaps onto standard DIN rail to EN 60715 |
|---|
Electrical data - Electromagnetic compatibility (EMC)
| Electromagnetic compatibility | EN 61000-4-2 | EN 61000-4-4 | EN 61000-4-5 |
|---|---|
| EMC rating | EN 61000-4-3 | EN 61000-4-6 |
| Interfering radiation | IEC 61000-6-4 (2002) |
|---|
