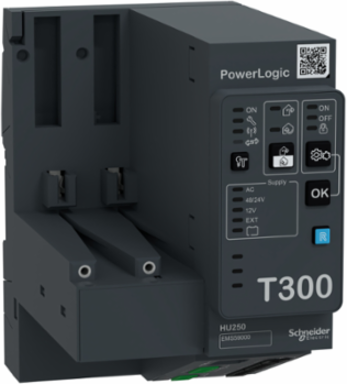

Schneider Electric EMS59000 PowerLogic HU250 Communication Gateway, 140 mm Height, IP2x/IP4x Protection
- MPN: EMS59000
- PPN: SCH-EMS59000
CAD
$3003.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Head unit communication gateway with cyber security management. It include for communication port: 5 RJ45 for Ethernet, 1 RJ45 for modbus, 1 RJ45 for USB, 1 RJ45 for RS and RS232, and 1 SMA for 3G and 4G. The number of digital inputs is 6 for multi purpose and 2 for remote control. And number of digital outputs is 2 for multi purpose. This product can be clip in DIN rail. Supply voltage can range from 12 to 48 VDC. The degree of protection is IP2x for body and IP4x in the front. It complies with CE certificat. Mechanical dimensions are 140 mm in height, 90 mm in width and 140 mm in length.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Canada, Germany, Estonia, France, Italy, Sweden, United States
Depth140 mm
Communications & Management Attributes
- Communication Port Protocol
- DNP3 serial and TCP master station/outstationModbus serial and TCP client/server, Modbus RTU client/serverIEC 61850-8-1 controlling/controlled station, IEC 60870-5-104 controlling/controlled stationIEC 60870-5-101 controlled station
- Communication Port Support
- 4 ETHERNET RJ451 RS485/RS232 RJ451 3G/4G SMA
Communication Serviceweb server local WiFi:, web server local Ethernet:web server remote WAN:
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Data Recording
- event logs, 4 data logs, 1 ms time stamps, 500000 events, sequence of event recording
- Mechanical Robustness
- vibrations 10-2000 Hz 1 gn 10 cycles conforming to IEC 60068-2-6, bumps 10 gn 16 ms 1000 bumps non energized conforming to IEC 60068-2-29shocks 11 ms 3 pulses in operation conforming to IEC 60068-2-27
- Software Function
- event log, alarm, Operating/Status report, assistance in commissioning and operating the installation, security/authority verification, reports and diagrams
- Carbon Footprint Of The Distribution Phase [A4]
- 0.6037113808141378, 0.6 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.2534536647645268, 0.3 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 127 kg CO2 eq., 127.2261732651559
- Local Publishable Date
- 2025-07-10
- Stocking Flag
- Y
- Serviceability
- Yes
- Field Service Division
- DPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2508031_V1
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2046
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 3
- Function Option
- Standard
- Market Segmentation
- Industrial
- Control Type
- illuminated push-button status:
- Energy Efficiency Optimized
- False
- Memory Capacity
- 16 MB
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- communication gateway
- Range Of Product
- PowerLogic T300
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 161 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- To securely collect, manage, and transmit data from MV and LV electrical devices, 24 hours a day, for 10 years of continuous operation.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Latvia, LV
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential In %
- 9
- Width Nominal
- 90 mm
- [Us] Rated Supply Voltage
- 12...48 V DC +/- 20 %
- Package Weight(Lbs)
- 765.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Electromagnetic Compatibilityelectrical fast transient/burst immunity test - test level: level 4 criteria A conforming to IEC 61000-4-4, conducted RF disturbances - test level: level 3 criteria A conforming to IEC 61000-4-6conducted disturbance emission - test level: level 4 criteria A conforming to IEC 61000-4-16100 kHz damped oscillating wave - test level: level 3 criteria A conforming to IEC 61000-4-12radiated radio-frequency electromagnetic field immunity test - test level: level 4 criteria A conforming to IEC 61000-4-3immunity to voltage dips criteria A conforming to IEC 61000-4-29, electrostatic discharge - test level: level 4 criteria B conforming to IEC 61000-4-2surge immunity test - test level: level 3 criteria A conforming to IEC 61000-4-5, magnetic field at power frequency - test level: level 5 criteria B conforming to IEC 61000-4-8, conducted and radiated emissions class A conforming to EN 55022
Programming Languagecalculation formula, ST (structured text), IL (instruction list), LD (ladder), FBD (function block diagram), SFC (sequential function chart)
Time Synchronisation ProtocolNTP, SNTP, GPS
Carbon Footprint Of The End-of-life Phase [C1 To C4]2 kg CO2 eq., 1.729060016545319
Carbon Footprint Of The Manufacturing Phase [A1 To A3]31 kg CO2 eq., 31.42099561206236
Local Data StatusPublishable
Return IndicatorN
Device TypeRelay, Control & Measurement - Remote Terminal Unit / Feeder Automation
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id3
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Device Short NameHU250
Fixing Modeclip-in (DIN rail)
Power Consumption In Va3 VA
Product NamePowerLogic T300
RangePowerLogic
ReturnabilityNo
Sustainable PackagingYes
User Languagemulti-language
Pep CodeENVPEP2508031EN
Pep Verification Date2025-09-25
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal140 mm
Certificate AgencyCE
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8517620090
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 161.23339393934225
- Environmental Disclosure
- ENVPEP2508031EN
- Ip Degree Of Protection
- IP2X body: conforming to IEC 60529IP4X front: conforming to IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2508031EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2508031_V1
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticYes
Relative Humidity5-95 % conforming to IEC 60068-2-30
Pep Verification Date2025-09-25
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- communication gateway
Range Of ProductPowerLogic T300
ETIM
- ETIM 8
- EC001604
ETIM 9EC001604
Output Attributes
- Number Of Outputs
- 2 digital (relay) multi-purpose:
Input Attributes
- Number Of Inputs
- 8 digital multi-purpose conforming to IEC 61131-2 type 32 digital remote control, 1 analog measure temperature
Synchronisation Time Between Inputs1 ms
