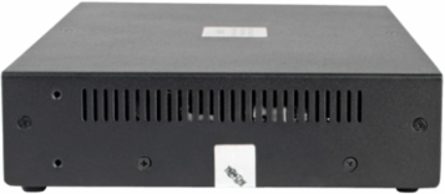

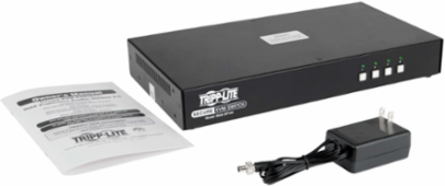

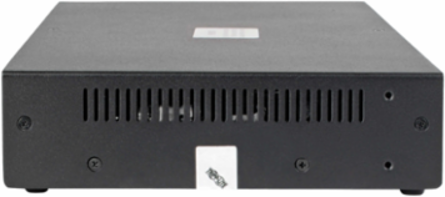

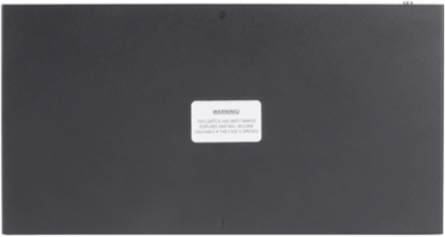

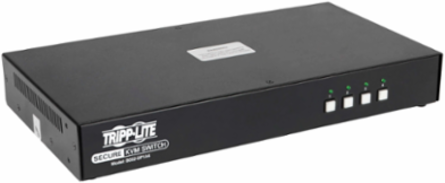

Tripp Lite B002-DP1A4 Secure 4-Port DisplayPort KVM Switch, 4K Resolution, NIAP PP3.0 Certified
- MPN: B002-DP1A4
- UPC: 037332221803
- PPN: TRP-B002-DP1A4
CAD
$1508.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Secure 4-Port DisplayPort KVM Switch, 4K Resolution, NIAP PP3.0 Certified
Features
- Safely and securely switches between 4 isolated computers with different security levels
- Certified to NIAP/Common Criteria Protection Profile for Peripheral Sharing Switches V3.0
- Isolated port paths prevent data leakage between secure and unsecure computers
- Supports UHD resolutions up to 3840 x 2160 (@ 30 Hz) for crystal-clear 4K x 2K video
- Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 3-year limited warranty
- 4-Port KVM Switch, DisplayPort, Is Ideal for Applications That Demand Secure Networks
- NIAP PP3.0 Certified to Meet Today’s Top Information Assurance Standards
- Top-of-the-Line Security Features Keep Your Data Safe
- Anti-Tampering Protection Prevents Physical Breeches
- Maintains Constant Keyboard and Mouse Emulation for Smooth No-Delay Switching
- Accessory Cable Kits - P783-006 & P783-010 (Not Included)
- TAA-Compliant for GSA Schedule Purchases
Documentation & Downloads
Specifications
Additional
- Power Input
- 100-240V, 50/60 Hz, 0.8A
- Max Supported Video Resolution
- 3840 x 2160 @ 30 Hz
- Number of Users
- 1
- Unit Weight
- 2.45 lbs
- Power Connector
- NEMA 1-15P North America
- Side A - Connector 2
- DISPLAYPORT (FEMALE)
- Side B - Connector 1
- 3.5MM (FEMALE)
- Side B - Connector 3
- USB B (FEMALE)
- Computer Monitor Interface
- DisplayPort
- Console Monitor Interface
- DisplayPort
- Redundancy - Dual Power Inputs
- No
- Cat5 KVM Switch
- No
- External Power Supply DC Barrel Connector Specs
- OD: 5.5 x 2.1 x 7.5mm, Positive Pin, Negative Sleeve
- Operating Temperature Range
- 32 to 104 F (0 to 40 C)
- Certification
- Certified to NIAP PP3.0
- External Power Supply Certifications
- FCC; UL; cUL
- Warranty
- 3-year limited warranty
Power Output12V, 2A
Ports4
Unit Dimensions (H x W x D)1.76 x 12.57 x 6.7 in
Power Cord Length5 ft
Side A - Connector 13.5MM (FEMALE)
Side A - Connector 3(2) USB A (FEMALE)
Side B - Connector 2DISPLAYPORT (FEMALE)
Computer Keyboard and Mouse InterfaceUSB
Console Keyboard and Mouse InterfaceUSB
TechnologyDisplayPort; USB
IP Remote AccessNo
RackmountableNo
Relative Humidity0% to 80%, Non-Condensing
Storage Temperature Range4 to 140 F (-20 to 60 C)
ComplianceTAA
ColorBlack
