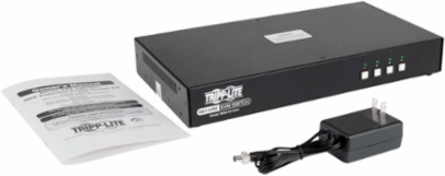

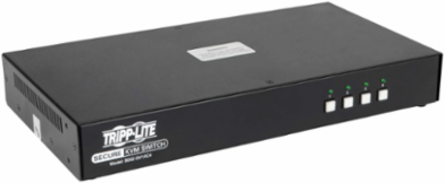

Tripp Lite B002-DV1AC4 4-Port NIAP PP3.0 Certified Secure KVM Switch, DVI-I, Supports 2560 x 1600
- MPN: B002-DV1AC4
- UPC: 037332221933
- PPN: TRP-B002-DV1AC4
CAD
$720.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
4-Port NIAP PP3.0 Certified Secure KVM Switch, DVI-I, Supports 2560 x 1600
Features
- Safely and securely switches between 4 isolated computers with different security levels
- Certified to NIAP/Common Criteria Protection Profile for Peripheral Sharing Switches V3.0
- Common Access Card (CAC) port supports biometric and smart card readers
- Supports HD resolutions up to 2560 x 1600 (@ 60 Hz) for crystal-clear video
- Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 3-year limited warranty
- 4-Port KVM Switch, DVI to DVI, Is Ideal for Applications That Demand Secure Networks
- NIAP PP3.0 Certified to Meet Today’s Top Information Assurance Standards
- Top-of-the-Line Security Features Keep Your Data Safe
- CAC Port Supports Biometric and Other Smart Card Readers
- Anti-Tampering Protection Prevents Physical Breeches
- Maintains Constant Keyboard and Mouse Emulation for Smooth No-Delay Switching
- Accessory Cable Kits - P784-006-U & P784-010-U (Not Included)
- TAA-Compliant for GSA Schedule Purchases
Documentation & Downloads
Specifications
Additional
| Ports | 4 |
|---|---|
| Voltage Compatibility | 100-240V, 50/60 Hz |
| Power Output | 12V, 2A |
| Storage Temperature Range | -20 to 60 C (4 to 140 F) |
| Number of Users | 1 |
| Unit Weight | 2.45 lbs (1.11 kg) |
| Power Connector Size | 5.5 x 2.1 x 7.5 mm, Positive Pin, Negative Sleeve |
| Material | Not Specified |
| Power Certifications | FCC, UL, cUL |
| Common Access Card (CAC) Support | Yes |
| Computer Keyboard and Mouse Interface | USB |
| Console Keyboard and Mouse Interface | USB |
| LED Indicators | (4) Green Port Selection, (4) Blue CAC/EDID, (1) Green Console Video, (1) Green CAC Console |
| Rackmountable | No |
| Side A Connectors | 3.5MM (Female); (3) USB A (Female); DVI-I (Female) |
| Video Resolution | 2560 x 1600 @ 60 Hz |
|---|---|
| Power Input | 100-240V, 0.8A, 50/60 Hz |
| Operating Temperature Range | 0 to 40 C (32 to 104 F) |
| Relative Humidity | 0% to 80%, Non-Condensing |
| Size (H x W x D) | 1.76 x 12.57 x 6.7 in (4.47 x 31.93 x 17.02 cm) |
| Power Cord Length | 5 ft (1.5 m) |
| Power Plug Type | NEMA 1-15P North America |
| Certification | NIAP PP3.0 Certified |
| Technology | DVI, USB |
| Port Selection | Pushbutton |
| Computer Monitor Interface | DVI-I Dual-Link |
| Console Monitor Interface | DVI-I Dual-Link |
| Color | Black |
| UPC Code | 037332221933 |
| Side B Connectors | 3.5MM (Female); DVI-I (Female); (2) USB B (Female) |
