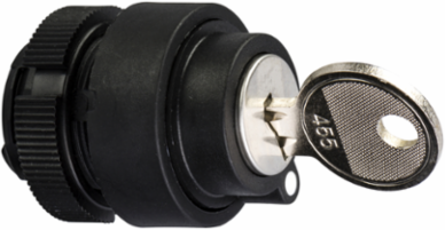

Schneider Electric ZA2BG4 Harmony XAC Selector Switch, 2 Positions, IP65, Black
- MPN: ZA2BG4
- PPN: SCH-ZA2BG4
CAD
$94.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This head for selector switch is a separate component of the range of pendant control stations Harmony XAC. It has a dark grey plastic bezel. It is supplied with key operated knob (key n° 455). It features 2 positions maintained, at 90°. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It is easily installed and replaced on XAC pendant control stations in diameter 22.5mm cut-out. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It weighs 20g. It is IEC 60947-5-1, UL 508 and CSA C22.2 n° 14 compliant.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XAC
- Component Name
- ZA2
Product Or Component Typeselector switch
Product CompatibilityXACA
Complementary
- Marking
- unmarked
- Net Weight
- 0.042 kg
- Sale Per Indivisible Quantity
- 1
Cap/Operator Or Lens Colourblack
Mounting Locationbase of enclosure || front of enclosure
Environment
- Ik Degree Of Protection
- IK08 conforming to IEC 62262
- Standards
- IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60204-32
- Vibration Resistance
- 15 gn 10-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance100 gn IEC 60068-2-27
Ip Degree Of ProtectionIP65 IEC 60529
Overvoltage Categoryclass II IEC 61140
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
