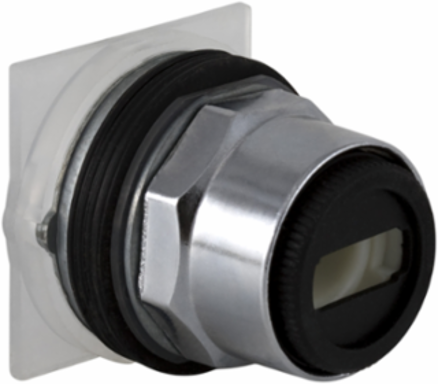

Square D 9001KS62 Harmony 9001K Selector Switch Head, 30 mm, Metal, 3 Positions, Spring Return
- MPN: 9001KS62
- UPC: 785901322382
- PPN: SCH-9001KS62
CAD
$109.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Harmony 9001K Selector Switch Head from Schneider Electric is designed with precision and functionality for automation and control applications. Featuring a robust metal construction, this selector switch head operates smoothly across three positions and incorporates a spring return mechanism for enhanced user experience. Ideal for integration into control panels and machinery, it ensures reliable switching performance while standing up to the rigors of industrial environments. With its thoughtful design, this selector switch head is an essential component for effective operational control in various automated systems.
Documentation & Downloads
Specifications
Additional
- Size
- 30 mm
- Shock Resistance
- 50 gn IEC 60068-2-27
- Operator Positions
- 3 positions
- Mounting Diameter
- 30 mm
- Net Weight
- 0.245 kg
- Protection
- IP66 IEC 60529
- Overvoltage Category
- Class II IEC 61140
- Ambient Air Temperature for Storage
- -40 to 70 °C (-40 to 158 °F)
- Standards
- UL 508, JIS C 852, CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-1, JIS C 4520
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium Product
Mechanical Durability500000 cycles
Vibration Resistance7 gn 2-500 Hz IEC 60068-2-6
Operator TypeLeft to centre spring return
Shape of Signaling Unit HeadRound
Bezel MaterialMetal
NEMA Degree of ProtectionNEMA 1, 2, 3, 3R, 4, 6, 12, 13
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Protective TreatmentTC
Product CertificationsUL 508, NEMA
RoHS ComplianceREACH, China RoHS, RoHS Exemption Yes
Country of OriginMexico
