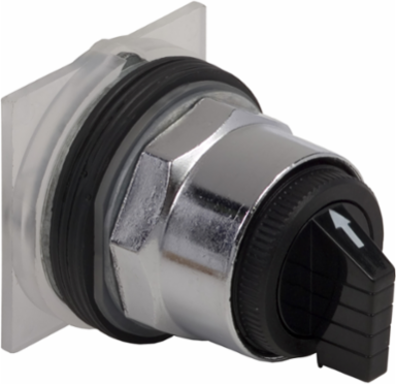

Schneider Electric 9001KS73B Harmony 9001K Selector Switch Head, 30 mm, 3 Positions, Spring Return
- MPN: 9001KS73B
- UPC: 785901820758
- PPN: SCH-9001KS73B
CAD
$104.51
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony 9001K, black selector switch with C cam has 3 positions, operates with spring return from right to center position mechanism. It has a chromium-plated metal bezel. This selector switch provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony 9001K
- Mounting Diameter
- 30 mm
- Device Short Name
- K
Enclosure Typedust and oil resistant weatherproof enclosure indoor/outdoor
Product Or Component Typehead for selector switch
Complementary
- Contacts Type And Composition
- without contact block
- Operator Position Information
- 3 positions
- Type Of Operator
- spring return
- Type Of Operator
- spring return right to centre
- Operator Profile
- 1 projecting push-button
Bezel Materialmetal
Operator Profilestandard handle
Cap/Operator Or Lens Colourblack
Size30 mm
Environment
- Product Certifications
- UL listed file E42259 CCN NKCR || CSA LR24590 class 3211 03 || CE
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/6/12/13
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
