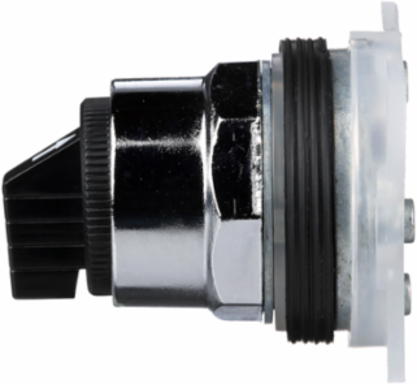

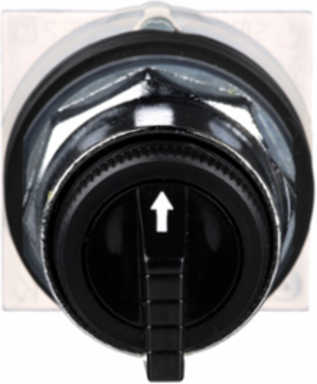

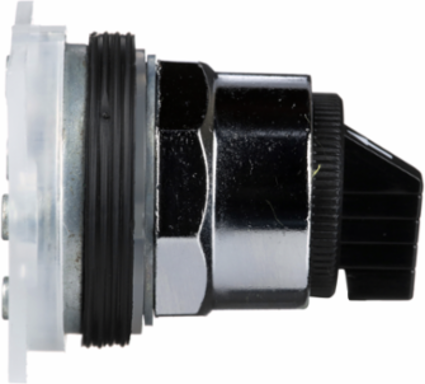

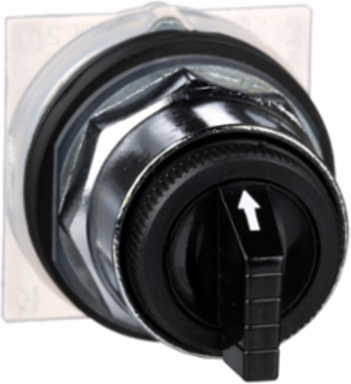

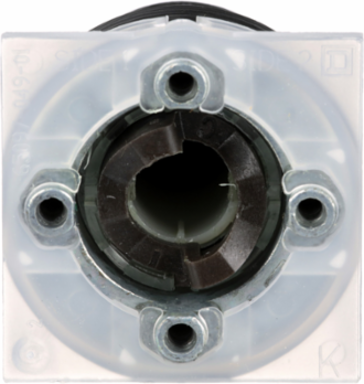

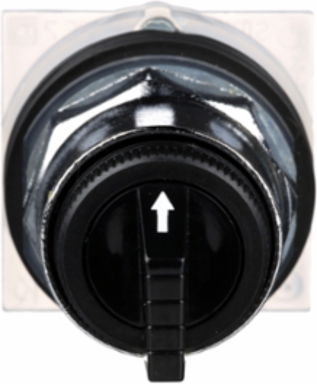

Schneider Electric 9001KS53B Harmony Selector Switch Head, 30mm, 3 Positions, Metal Bezel, Black
- MPN: 9001KS53B
- UPC: 785901322740
- PPN: SCH-9001KS53B
CAD
$104.51
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony Selector Switch Head, 30mm, 3 Positions, Metal Bezel, Black
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Physical Attributes
- Size
- 30 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL listed file E42259 CCN NKCR, CE, CSA LR24590 class 3211 03
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.3 kg CO2 eq., 0.26905304987555334
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.7 kg CO2 eq., 0.6683617390912613
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Cam Profile
- 3
- Device Short Name
- K
- Mounting Diameter
- 30 mm
- Operator Profile
- standard handleblack standard knob
- Product Or Component Type
- head for selector switch
- Return
- both sides to centre
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 1 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- This subset can be easily installed into a standard 30mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance with it's clear color when it configuarted with head. It is an impact resistant, dust resistant, water resistant and vibration resistant which making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. Product is adhering to standards IEC 60947-5-1, IEC 60947-5-5, UL 60947-5-5
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; High voltage; 2020; Mexico, MX
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 49
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.0662483656178787, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0009038163813371459, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-03-25
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2503027EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Bezel Materialmetal
Contacts Type And Compositionwithout contact block
Mechanical Durability0.5 Mcycles
Operator Position Information3 positions
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony 9001K
ReturnabilityYes
Sustainable PackagingYes
Type Of Operatorspring return
Pep CodeENVPEP2503027EN
Pep Verification Date2025-03-26
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Cap/Operator Or Lens Colourblack
Package Weight(Lbs)122.47 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 1.0045669709660305
- Environmental Disclosure
- ENVPEP2503027EN
- Ip Degree Of Protection
- IP65/IP66
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-03-26
- Psr Version
- PSR-0005-ed3-2023 06 06
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2503027EN
Eu Rohs DirectiveCompliant By Exemption
Nema Degree Of ProtectionNEMA 3R/6/13
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2503027EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- head for selector switch
Range Of ProductHarmony 9001K
ETIM
- ETIM 8
- EC001029
ETIM 9EC001029
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
