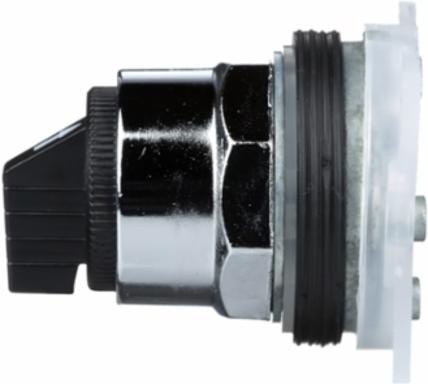

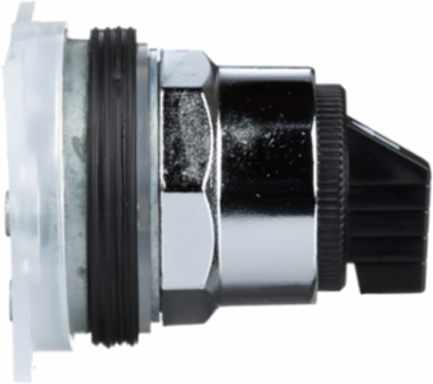

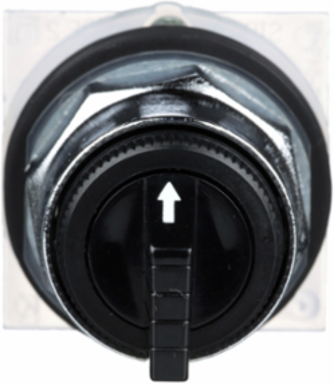

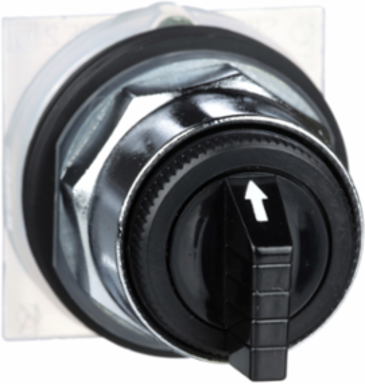

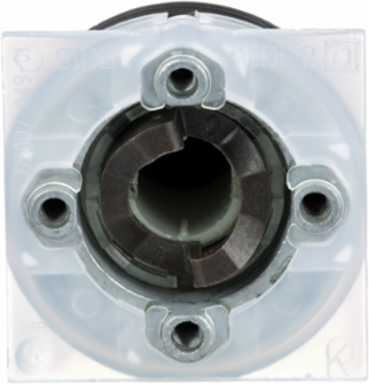

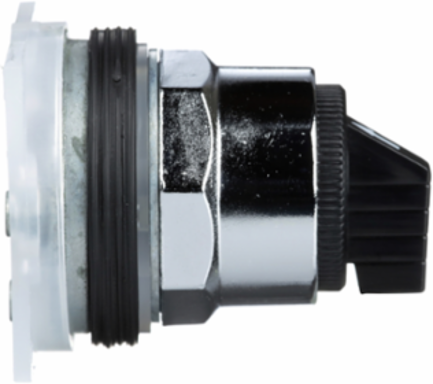

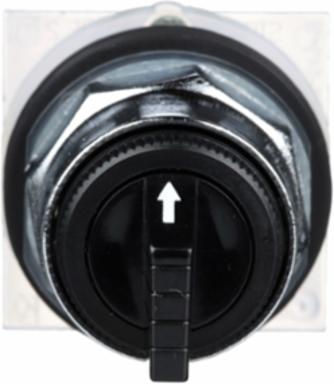

Schneider Electric 9001KS43B Selector Switch Head, 30mm, Black Metal, 3 Positions, Stay Put
- MPN: 9001KS43B
- UPC: 785901322634
- PPN: SCH-9001KS43B
CAD
$68.15
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Selector Switch Head, 30mm, Black Metal, 3 Positions, Stay Put
Features
- Constructed with a heavy-duty, corrosion-resistant chrome-plated zinc bezel, this 30mm selector switch is engineered specifically for harsh manufacturing floors and outdoor control stations. Its rugged metallic housing withstands high-impact usage and chemical exposure, ensuring long-term mechanical reliability in environments where plastic alternatives frequently fail.
- Featuring a "stay-put" maintained operator mechanism, this switch remains securely in the Left, Center, or Right position after manual actuation. This provides clear, tactile feedback and visual confirmation of the machine's operating mode such as Hand-Off-Auto (HOA) eliminating the risk of accidental state changes and ensuring process continuity for complex industrial sequences.
- his 9001K series operator is fully compatible with Schneider s extensive line of Type KA contact blocks, allowing for flexible "stackable" configurations of Normally Open (NO) and Normally Closed (NC) circuits. The modular design simplifies field installation and troubleshooting, allowing industrial electricians to quickly customize control logic without replacing the entire pilot device.
- Fully certified to UL 508, CSA C22.2, and CE standards, this selector switch meets the most stringent international requirements for industrial control equipment. Utilizing globally recognized components ensures your control panels easily pass safety inspections and guarantees that your machinery installations comply with both local building codes and rigorous corporate safety mandates.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Physical Attributes
- Size
- 30 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Type Of Operator
- stay put, maintained
- Carbon Footprint Of The Distribution Phase [A4]
- 0.06626459368163747, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0009040377783440873, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-03-25
- Stocking Flag
- N
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Cam Profile
- 3
- Device Short Name
- K
- Mounting Diameter
- 30 mm
- Operator Profile
- standard handleblack standard knob
- Product Or Component Type
- head for selector switch
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Pep Code
- ENVPEP2503027EN
- Pep Verification Date
- 2025-03-26
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Cap/Operator Or Lens Colour
- black
- Package Weight(Lbs)
- 122.500 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyCSA LR24590 class 3211 03, CE, UL listed file E42259 CCN NKCR
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.26911895655879225
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.7 kg CO2 eq., 0.6685254596119826
Local Data StatusPublishable
Return IndicatorY
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2503027EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Bezel Materialmetal
Contacts Type And Compositionwithout contact block
Mechanical Durability0.5 Mcycles
Operator Position Information3 positions
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony 9001K
Software Versionv6.2.4
Total Lifecycle Carbon Footprint1 kg CO2 eq.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThis subset can be easily installed into a standard 30mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance with it's clear color when it configuarted with head. It is an impact resistant, dust resistant, water resistant and vibration resistant which making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. Product is adhering to standards IEC 60947-5-1, IEC 60947-5-5, UL 60947-5-5
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; Mexico, MX
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %49
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 1.0048130476307566
- Environmental Disclosure
- ENVPEP2503027EN
- Ip Degree Of Protection
- IP65/IP66
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-03-26
- Psr Version
- PSR-0005-ed3-2023 06 06
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2503027EN
Eu Rohs DirectiveCompliant By Exemption
Nema Degree Of ProtectionNEMA 3R/6/13
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2503027EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- head for selector switch
Range Of ProductHarmony 9001K
ETIM
- ETIM 8
- EC001029
ETIM 9EC001029
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic element
