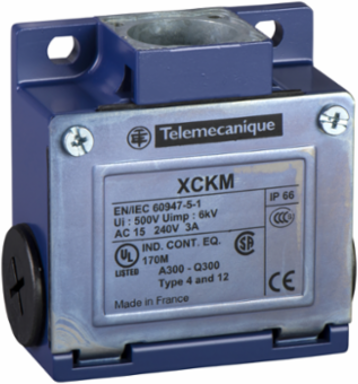

Telemecanique Sensors ZCKM7H29 Limit switch body ZCKM, 2NC, slow action, M20 cable entry
- MPN: ZCKM7H29
- PPN: TES-ZCKM7H29
CAD
$304.23
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch body ZCKM, 2NC, slow action, M20 cable entry
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Local display | Without |
|---|---|
| Positive opening | With |
| Terminals description ISO n°1 | (13-14)NO (31-32)NC (33-34)NO |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
|---|---|
| Resistance across terminals | 0.25 mOhm conforming to IEC 60255-7 category 3 |
Main
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Product or component type | Limit switch body |
| Body type | Fixed |
| Body material | Metal |
| Contacts type and composition | 2 NC |
| Contacts material | Silver plated contacts |
| Series name | Standard format |
|---|---|
| Device short name | ZCKM |
| Product compatibility | XCKM |
| Cable entry | 3 entries tapped for M20 x 1.5 cable gland |
| Contact operation | Slow-break, simultaneous |
Environment
| IP degree of protection | IP66 |
|---|---|
| Environmental characteristic | Standard environment |
| IK degree of protection | IK05 |
|---|
