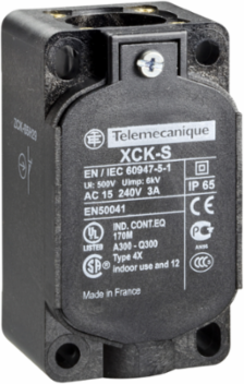

Telemecanique Sensors ZCKS5H29 Limit switch body, Limit switches XC Standard, ZCKS, 1NC+1 NO, slow break, M20
Telemecanique Sensors ZCKS5H29 Limit switch body, Limit switches XC Standard, ZCKS, 1NC+1 NO, slow break, M20
- MPN: ZCKS5H29
- PPN: TES-ZCKS5H29
- UNSPSC: 39122213
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$91.95/ EA
Description
This product is part of the XC Standard range, an offer of limit switches. This limit switch body has 1 NC and 1 NO, slow break, make before break contacts. It is a limit switch body with a conventional enclosed thermal current of 10A and rated operating current of 3A at 240V AC and 0.27A at 250V DC. It is furnished with screw terminals for electrical connection. It is an IP65 and IK03 rated product. This fixed limit switch body is made of plastic. Its dimensions are 40mm (width) x 36mm (depth) x 73mm (height). It weighs 0.08kg. It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. It is compatible with XCKS limit switches. The associated heads are ZCKD019, ZCKD81, ZCKD39, ZCKD41, ZCKD05, ZCKD91, ZCKD08, ZCKD31, ZCKD029, ZCKD02, ZCKD06 and ZCKD55. Limit switches for contact sensing of inflexible objects. An offer of positive opening snap action contacts for a simpler and safer machine design. IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM limit switches ranges.
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-70 °C standard environment
- Ambient Air Temperature For Storage
- -40-70 °C
- Ip Degree Of Protection
- IP65
Ik Degree Of ProtectionIK03
Environmental Characteristicstandard environment
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1307066
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Circularity ProfileENVEOLI1307066EN
Complementary
- Height
- 73-73 mm
- Short-Circuit Protection
- 6 A cartridge fuse gG
- Electrical Connection
- screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
- Local Display
- without
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60664 || 4 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
- Depth
- 36 mm
Terminals Description Iso N°1(33-34)NO || (13-14)NO || (31-32)NC
Minimum Actuation Speed6 m/min
[Ithe] Conventional Enclosed Thermal Current10 A
Net Weight0.08 kg
Electrical Durability5000000 cycles, DC-13 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Positive Openingwith
Width40 mm
Maximum Resistance Across Terminals0.25 mOhm IEC 60255-7 category 3
Specifications
- Range Of Product
- Telemecanique Limit switches XC Standard
- Associated Head
- ZCKD019 || ZCKD81 || ZCKD39 || ZCKD41 || ZCKD05 || ZCKD91 || ZCKD08 || ZCKD34 || ZCKD33 || ZCKD49 || ZCKD59 || ZCKD01 || ZCKD54 || ZCKD31 || ZCKD029 || ZCKD02 || ZCKD06 || ZCKD55
- Product Or Component Type
- limit switch body
- Series Name
- standard format
- Body Type
- fixed
- Body Material
- plastic
- Device Short Name
- ZCKS
Contacts Materialsilver plated contacts
Cable Entry1 entry tapped for M20 x 1.5 cable gland
Number Of Steps1 1 position
Contacts Type And Composition1 NC + 1 NO
Contact Operationslow-break, break before make
Product CompatibilityXCKS
Number Of Poles2
