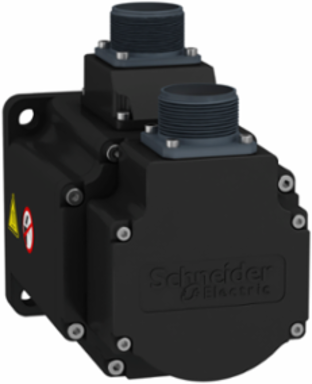

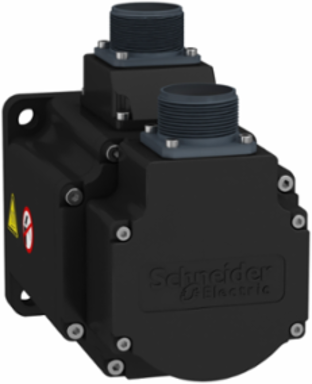

Schneider Electric BCH2LH1033CF6C Servo Motor Lexium 28 100mm 1000W 2.45 kg.cm² with Brake
- MPN: BCH2LH1033CF6C
- PPN: SCH-BCH2LH1033CF6C
CAD
$1733.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Crafted for precision and efficiency within the realm of automation and motion control, the servo motor from Schneider Electric exemplifies high-performance engineering. The Lexium 28 model, featuring a robust 1000W output, is designed to deliver excellent torque—rated at 2.45 kg.cm²—making it well-suited for demanding applications. With an integrated braking system, this motor ensures enhanced safety and responsiveness, allowing for smooth operation in various automated environments. This product stands out for its reliability and effectiveness, making it an essential component for modern control systems.
Documentation & Downloads
Specifications
Additional
- Power
- 1000 W
- Rated Supply Voltage
- 220 V
- Maximum Mechanical Speed
- 5000 rpm
- Maximum Current Irms
- 18.9 A
- Feedback Type
- 20 bits single turn absolute encoder
- Torque Constant
- 0.55 N.m/A (20 °C)
- Rotor Inertia
- 2.45 kg.cm²
- Stator Inductance
- 4.2 mH (20 °C)
- Maximum Radial Force
- 570 N (3000 rpm)
- Brake Pull-in Power
- 10.4 W
- Torque
- 3.18 N.m (28.15 lbf.in)
- Shaft Diameter
- 22 mm (0.87 in)
- Key Width
- 8 mm (0.31 in)
- Motor Flange Size
- 100 mm (3.94 in)
- Length without Holding Brake
- 153.5 mm (6.04 in)
- Centring Collar Diameter
- 95 mm (3.74 in)
- Number of Mounting Holes
- 4
- Circle Diameter of Mounting Holes
- 115 mm (4.53 in)
- Net Weight
- 5.1 kg (11.24 lb)
- Electrical Connection
- Connector MIL
- Ambient Air Temperature for Operation
- 0-40 °C (32-104 °F)
- Country of Origin
- China
Continuous Stall Current5.83 A
PhaseSingle phase, Three phase
Nominal Speed3000 rpm
Maximum Permanent Current6.64 A
Holding BrakeWith built-in
Back EMF Constant33 V/krpm (20 °C)
Stator Resistance0.67 Ohm (20 °C)
Stator Electrical Time Constant6.27 ms (20 °C)
Maximum Axial Force200 N
Cooling TypeNatural convection
Peak Stall Torque9.54 N.m (84.44 lbf.in)
Shaft Length45 mm (1.77 in)
Holding Torque6.5 N.m (57.53 lbf.in)
Length with Holding Brake180.5 mm (7.11 in)
Number of Motor Stacks1
Centring Collar Depth7 mm (0.28 in)
Mounting Holes Diameter9.2 mm (0.36 in)
Distance Shaft Shoulder-Flange7 mm (0.28 in)
Mounting SupportAsian standard flange
IP Degree of ProtectionIP50 IM V3, IP65 IM B5, IM V1
ComplianceREACH SVHC free, Mercury free, PVC free, Pro-active EU RoHS, Green Premium
