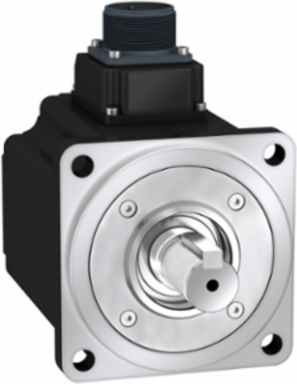

Schneider Electric BCH2LH2033CA6C Lexium 28 Servo Motor 100mm 2000W 6.7kg IP65
- MPN: BCH2LH2033CA6C
- PPN: SCH-BCH2LH2033CA6C
CAD
$2004.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This product is part of the Lexium 28 range, an offer of servo motors from 0.05kW to 4.5kW. The servo motor features maximum mechanical speed of 5000RPM and keyed shaft end without holding brake. It is an equipped with a 20bit single-turn absolute encoder. It is a second generation servo motor with a rated supply voltage of 220V, a continuous stall current of 9.87A and a continuous power of 2000W. The shaft dimensions are 22mm (diameter) x 45mm (length). It is furnished with MIL connector for electrical connection. It is an IP50 and IP65 rated product. The length of this product is 198.5mm and the centering collar dimensions are 7mm (depth) x 95mm (diameter) with 115mm mounting hole. It weighs 6.7kg. It is suitable for machine control solutions. This range is compatible with Lexium 28 servo drives. This product is compatible with LXM26D servo drive motor at 2kW 220V three phase. It supports 100mm Asian standard flange mount with a natural convection cooling system. The Lexium 28 range offers predeterminate combinations to suit the requirements of motion control applications and optimize the performance of the installation. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
Documentation & Downloads
Specifications
Key Specifications
- Product Or Component Type
- servo motor
- Device Short Name
- BCH2
Range CompatibilityLexium 28
Complementary
- Circle Diameter Of The Mounting Holes
- 115 mm
- Continuous Power
- 2000 W
- Product Compatibility
- LXM26D servo drive 2 kW, 220 V, three phase || LXM28... servo drive 2 kW, 220 V, three phase
- Maximum Radial Force Fr
- 570 N 3000 rpm
- Mounting Support
- asian standard flange
- Rotor Inertia
- 4.28 kg.cm²
- Maximum Axial Force Fa
- 200 N
- Holding Brake
- without
- Brake Pull-In Power
- 10.4 W
- Maximum Current Irms
- 32.3 A LXM26D 2 kW, 220 V || 32.3 A LXM28... 2 kW, 220 V
- Net Weight
- 6.7 kg
- Stator Inductance
- 2.59 mH 20 °C
- [Us] Rated Supply Voltage
- 220 V
- Peak Stall Torque
- 19.11 N.m LXM26D 12 A, 220 V, three phase || 19.11 N.m LXM28... 12 A, 220 V, three phase
- Distance Shaft Shoulder-Flange
- 7 mm
- Key Width
- 8 mm
- Type Of Cooling
- natural convection
- Nominal Speed
- 3000 rpm LXM26D 12 A, 220 V, three phase || 3000 rpm LXM28... 12 A, 220 V, three phase
- Stator Resistance
- 0.36 Ohm 20 °C
- Nominal Torque
- 6.37 N.m LXM26D 12 A, 220 V, three phase || 6.37 N.m LXM28... 12 A, 220 V, three phase
- Continuous Stall Torque
- 6.37 N.m LXM26D 12 A, 220 V, three phase || 6.37 N.m LXM28... 12 A, 220 V, three phase
Maximum Permanent Current10.27 A
Maximum Mechanical Speed5000 rpm
Stator Electrical Time Constant7.19 ms 20 °C
Electrical Connectionconnector MIL
Number Of Motor Stacks2
Back Emf Constant39 V/krpm 20 °C
Centring Collar Depth7 mm
Shaft Length45 mm
Network Number Of Phasesthree phase
Length198.5 mm
Centring Collar Diameter95 mm
Motor Flange Size100 mm
Nominal Output Power2000 W LXM26D 12 A, 220 V, three phase || 2000 W LXM28... 12 A, 220 V, three phase
Number Of Mounting Holes4
Shaft Diameter22 mm
Mounting Holes Diameter9.2 mm
Shaft Endkeyed
Feedback Type20 bits single turn absolute encoder
Continuous Stall Current9.87 A
Torque Constant0.65 N.m/A 20 °C
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1504002EN
- Pvc Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1504002EN
Environment
- Ambient Air Temperature For Operation
- -20-40 °C
Ip Degree Of ProtectionIP50 IM V3 || IP65 IM B5, IM V1
