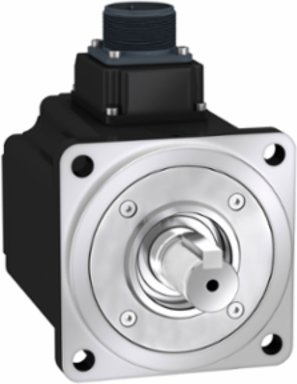

Schneider Electric BCH2LH2032CA6C Servo Motor Lexium 28 100 mm 2000 W 6.7 kg
- MPN: BCH2LH2032CA6C
- PPN: SCH-BCH2LH2032CA6C
CAD
$1912.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered to enhance performance in automation and control applications, the Schneider Electric BCH2LH2032CA6C Servo Motor is a top-tier solution in the Lexium 28 series. With a robust 2000 W power capacity and a compact 100 mm design, it provides exceptional torque and responsiveness, making it ideal for a variety of motion control tasks. Weighing in at 6.7 kg, this servo motor is built for reliability and efficiency, streamlining operations in demanding environments. Its precision engineering ensures that it can meet the rigorous demands of modern industrial applications, allowing for seamless integration into existing systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Switzerland, China, France, Sweden
Physical Attributes
- Motor Flange Size
- 100 mm
Shaft Length45 mm
Complementary Attributes
- Maximum Current Irms
- 32.3 A LXM28... 2 kW, 220 V, 35.0 A
- Maximum Ambient Air Temperature For Operation
- 40.0 °C
- Maximum Mechanical Speed
- 5000 rpm
- Maximum Permanent Current
- 10.27 A
- Minimum Ambient Air Temperature For Operation
- 0.0 °C
Line Rated Current10.27 A
Maximum Axial Force Fa200 N
Maximum Operational Altitude1000.0 m
Maximum Radial Force Fr570 N 3000 rpm
Minimum Operational Altitude0.0 m
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Coefficient 1 1
- -1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm
- Coefficient 1 5
- -7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5
- Nominal Torque
- 6.37 N.m half speed, 6.37 N.m full speed, 6.37 N.m LXM28... 12 A, 220 V, three phase
- Carbon Footprint Of The Distribution Phase [A4]
- 1.0928389013, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0539839058, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 7 465 kg CO2 eq., 7465.2140072753
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 4
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Circle Diameter Of The Mounting Holes
- 115 mm
- Coefficient 1 4
- 7.11E-26 N.m/rpm4
- Coefficient 2 0
- 0 N.m
- Continuous Power
- 2000 W
- Continuous Stall Torque
- 6.37 N.m LXM28 12 A, 220 V, three phase
- Derating Temperature Scale
- 40.0 °C
- Device Short Name
- BCH2
- Feedback Type
- 20 bits single turn absolute encoder
- Inertia
- 0.0 kg.cm² of brake4.27 kg.cm² of motor
- Minimum Ambient Air Temperature For Operation
- 0.0 °C
- Motor Figures
- 230.0 V
- Mounting Holes Diameter
- 9.2 mm
- Network Number Of Phases
- 3
- Number Of Motor Stacks
- 2
- Peak Nominal Torque
- 19.11 N.m
- Phase
- three phase
- Product Or Component Type
- servo motor
- Returnability
- No
- Shaft Diameter
- 22 mm
- Sizing Reference
- BCH2
- Stator Electrical Time Constant
- 7.19 ms 20 °C
- Stator Resistance
- 0.36 Ohm 20 °C
- Temperature Copper Hot
- 135 °C
- Temperature Magnet Rt
- 20 °C
- Total Lifecycle Carbon Footprint
- 7 516 kg CO2 eq.
- Pep Code
- ENVPEP1504002EN
- Pep Verification Date
- 2020-11-01
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime In Kwh
- 15236.786
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- [Us] Rated Supply Voltage
- 220 V
- Brake Pull-in Power
- 10.4 W
- Maximum [In] Rated Current
- 10.27 A
- Package Weight(Lbs)
- 8.47 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Coefficient 1 3-2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3
Nominal SpeedLXM28... 12 A, 220 V, three phase, 3000 rpm
Saturation Coefficient-3.8243890773E-18, -3.8243890773E-18
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.9 kg CO2 eq., 0.9096988901
Carbon Footprint Of The Manufacturing Phase [A1 To A3]49 kg CO2 eq., 48.5448744395
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1504002EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2444
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionAdvanced
Market SegmentationIndustrial
Centring Collar Diameter95 mm
Coefficient 1 25.62440546E-19 N.m/rpm²
Coefficient 1 63.2E-34 N.m/rpm6
Coefficient 2 18.75000000000026E-06 N.m/rpm
Continuous Stall Current9.87 A
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Electrical Connectionconnector MIL
Holding Brakewithout
Maximum Operational Altitude1000.0 m
Minimum Operational Altitude0.0 m
Motor Voltage Drop Coefficient1
Mounting Supportasian standard flange
Number Of Motor Poles5.0
Number Of Mounting Holes4
Peak Stall Torque19.11 N.m LXM28... 12 A, 220 V, three phase
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLexium 28
Rotor Inertia4.28 kg.cm²
Shaft Endsmooth shaft
Software VersionEIME v5.6.0.1
Stator Inductance2.59 mH 20 °C
Sustainable PackagingNo
Temperature Magnet Hot100 °C
Torque Constant0.65 N.m/A 20 °C
Type Of Coolingnatural convection
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: China
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Length Total198.5 mm
Accuracy Error [Angular]0.044 °
Distance Shaft Shoulder-flange7 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8501524000
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-40 °C, -20-40 °C
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1504002EN
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Product Compatibility
- LXM28... servo drive 2 kW, 220 V, three phase
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2020-11-01
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint7515.8154034121
Environmental DisclosureENVPEP1504002EN
Ip Degree Of ProtectionIP50 IM V3IP65 IM B5, IM V1
Packaging Without Single Use PlasticNo
Reach Free Of SvhcYes
Pep CodeENVPEP1504002EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Phase
- three phase
- Range Of Product
- Lexium 28
Product Or Component Typeservo motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 2000 W LXM28... 12 A, 220 V, three phase
Output Current 3s Peak35.0 A
