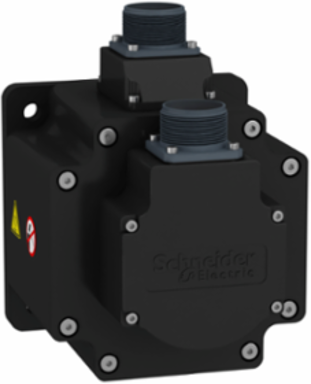

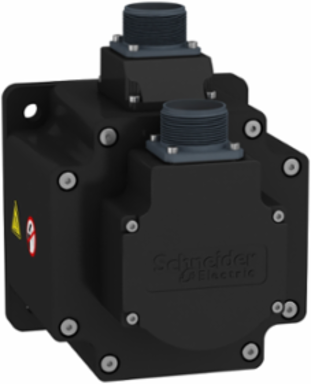

Schneider Electric BCH2MM1522CF6C Servo Motor, Lexium 28, 130mm, 1500W, 10 kg.cm2, 3000 RPM

  • MPN: BCH2MM1522CF6C
  • PPN: SCH-BCH2MM1522CF6C
  • UNSPSC: 26101205

CAD

$2168.31

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The BCH2MM1522CF6C Servo Motor from Schneider Electric is engineered for high-performance applications in motion control and automation. With a robust output of 1500W and a commendable speed of up to 3000 RPM, it ensures precise movement and enhanced efficiency for a variety of industrial tasks. This servo motor features a compact 130mm design and delivers a torque rating of 10 kg.cm2, making it an ideal solution for applications requiring reliable and responsive motion control. Designed to integrate seamlessly into automation environments, this motor exemplifies innovation in engineering, ensuring superior performance and durability.

Documentation & Downloads

Specifications

Key Specifications

Country of OriginChina
Weight9840 g

Physical Attributes

Motor Flange Size130 mm
Shaft Length55 mm

Complementary Attributes

Maximum Current Irms20.31 A LXM28... 1.5 kW, 220 V, 21.0 A
Maximum Ambient Air Temperature For Operation40.0 °C
Maximum Mechanical Speed3000 rpm
Maximum Permanent Current6.74 A
Minimum Ambient Air Temperature For Operation0.0 °C
Us Rated Supply Voltage220 V
Line Rated Current6.74 A
Maximum Axial Force Fa200 N
Maximum Operational Altitude1000.0 m
Maximum Radial Force Fr670 N 2000 rpm
Minimum Operational Altitude0.0 m
Maximum In Rated Current6.74 A

Important Information Attributes

Persona Type IdsEU, OM, OM8
Coefficient 1 1-1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm
Coefficient 1 5-7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5
Nominal SpeedLXM28... 7 A, 220 V, single phase, LXM28... 7 A, 220 V, three phase, 2000 rpm
Peak Stall Torque21.48 N.m LXM28... 7 A, 220 V, single phase, 21.48 N.m LXM28... 7 A, 220 V, three phase
Saturation Coefficient-3.8243890773E-18, -3.8243890773E-18
Carbon Footprint Of The End Of Life Phase C1 To C41 kg CO2 eq., 1.0568402691
Carbon Footprint Of The Manufacturing Phase A1 To A356 kg CO2 eq., 56.3968789238
Local Data StatusPublishable
Return IndicatorN
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1504002EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2444
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionAdvanced
Market SegmentationIndustrial
Centring Collar Diameter110 mm
Coefficient 1 25.62440546E-19 N.m/rpm²
Coefficient 1 63.2E-34 N.m/rpm6
Coefficient 2 18.75000000000026E-06 N.m/rpm
Continuous Stall Current6.18 A
Derating Temperature Scale40.0 °C
Device Short NameBCH2
Feedback Type20 bits single turn absolute encoder
Holding Torque9.6 N.m built-in
Motor Figures230.0 V
Mounting Holes Diameter9.2 mm
Network Number Of Phases1
Number Of Motor Stacks3
Peak Nominal Torque21.48 N.m
Product Or Component Typeservo motor
ReturnabilityNo
Shaft Diameter22 mm
Sizing ReferenceBCH2
Stator Electrical Time Constant10 ms 20 °C
Stator Resistance0.64 Ohm 20 °C
Temperature Copper Hot135 °C
Temperature Magnet Rt20 °C
Total Lifecycle Carbon Footprint7 020 kg CO2 eq.
Database Version2016-11
Length Total202 mm
Customs Code8501524000
Distance Shaft Shoulder Flange8 mm
Functional Unit DescriptionTo coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years
Functional Unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh14207.716
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Coefficient 1 3-2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3
Continuous Stall Torque7.16 N.m LXM28 7 A, 220 V, single phase, 7.16 N.m LXM28 7 A, 220 V, three phase
Nominal Torque7.16 N.m half speed, 7.16 N.m full speed, 7.16 N.m LXM28... 7 A, 220 V, single phase, 7.16 N.m LXM28... 7 A, 220 V, three phase
Phasesingle phase, three phase
Carbon Footprint Of The Distribution Phase A41.2696026906, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.0627156592, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B66 961 kg CO2 eq., 6961.0244899803
Local Publishable Date2026-01-12
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id4
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Circle Diameter Of The Mounting Holes145 mm
Coefficient 1 47.11E-26 N.m/rpm4
Coefficient 2 00 N.m
Continuous Power1500 W
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Electrical Connectionconnector MIL
Holding Brakewith
Inertia9.99 kg.cm² of brake10.0 kg.cm² of motor
Motor Voltage Drop Coefficient1
Mounting Supportasian standard flange
Number Of Motor Poles5.0
Number Of Mounting Holes4
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLexium 28
Rotor Inertia10 kg.cm²
Shaft Endsmooth shaft
Software VersionEIME v5.6.0.1
Stator Inductance6.4 mH 20 °C
Sustainable PackagingNo
Temperature Magnet Hot100 °C
Torque Constant1.16 N.m/A 20 °C
Type Of Coolingnatural convection
Data Sourceextrapolated product
Nbr. Of Units In Pkg.1
Brake Pull In Power19.7 W
Warranty In Months18
Functional Unit Quantity1
Reference Lifetime In Y10

Environment Attributes Main

Product CompatibilityLXM28... servo drive 1.5 kW, 220 V, single phase, LXM28... servo drive 1.5 kW, 220 V, three phase
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Ambient Air Temperature For Operation0-40 °C
Environmental DisclosureENVPEP1504002EN
Ip Degree Of ProtectionIP50 IM V3IP65 IM B5, IM V1
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint7019.8105275229
Circularity ProfileENVEOLI1504002EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP1504002EN
Pcr VersionPCR-ed3-EN-2015 04 02

General Attributes

Phasesingle phase, three phase
Range Of ProductLexium 28
Product Or Component Typeservo motor

ETIM

ETIM 8EC001851
ETIM 10EC001851
ETIM 9EC001851

Output Attributes

Nominal Output Power1500 W LXM28... 7 A, 220 V, single phase, 1500 W LXM28... 7 A, 220 V, three phase
Output Current 3s Peak21.0 A
Servo Motor, Lexium 28, 130mm, 1500W, 10 kg.cm2, 3000 RPM
