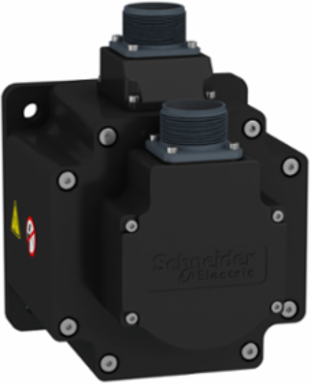

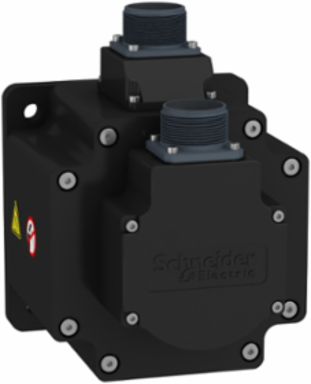

Schneider Electric BCH2MM1523CF6C Lexium 28 Servo Motor, 130mm, 1500W, 8.8kg, 3000RPM, Keyed Shaft

  • MPN: BCH2MM1523CF6C
  • PPN: SCH-BCH2MM1523CF6C

CAD

$2289.18

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Lexium 28 Servo Motor, 130mm, 1500W, 8.8kg, 3000RPM, Keyed Shaft

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, Switzerland, China, France, Mexico, Sweden, United States

Physical Attributes

Key Width
8 mm
Shaft Length
55 mm
Motor Flange Size130 mm

Complementary Attributes

Maximum Current Irms
20.31 A LXM28... 1.5 kW, 220 V, 21.0 A
Maximum Ambient Air Temperature For Operation
40.0 °C
Maximum Mechanical Speed
3000 rpm
Maximum Permanent Current
6.74 A
Minimum Ambient Air Temperature For Operation
0.0 °C
Line Rated Current6.74 A
Maximum Axial Force Fa200 N
Maximum Operational Altitude1000.0 m
Maximum Radial Force Fr670 N 2000 rpm
Minimum Operational Altitude0.0 m

Important Information Attributes

Persona Type Ids
EU, OM, OM8
Coefficient 1 1
-1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm
Coefficient 1 5
-7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5
Inertia
9.99 kg.cm² of brake, 10.0 kg.cm² of motor
Nominal Torque
7.16 N.m LXM28... 7 A, 220 V, three phase7.16 N.m half speed, 7.16 N.m full speed, 7.16 N.m LXM26D 7 A, 220 V, single phase, 7.16 N.m LXM26D 7 A, 220 V, three phase, 7.16 N.m LXM28... 7 A, 220 V, single phase
Phase
single phase, three phase
Carbon Footprint Of The Distribution Phase [A4]
1.381854148, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.0682606413, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
6 961 kg CO2 eq., 6961.0244899803
Local Publishable Date
2026-01-12
Stocking Flag
Y
Device Type
Motion - drive & motor
Traceability
Yes
Average Life Duration
15 year(s)
Weee Product Category
5
Eoli Availability Display
Yes
Reach Full Compliance Status
Free of Substances of Very High Concern above the threshold
Reach Compliance Directive
Free of Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant
Rohs Eur Full Compliance Status
Compliant
China Rohs Label
1
Without Single Use Plastic
No
Tier Id
4
Function Option Id
ADVANCED
Market Segmentation Id
INDUSTRIAL
Product Kit Identifier
N
Circle Diameter Of The Mounting Holes
145 mm
Coefficient 1 4
7.11E-26 N.m/rpm4
Coefficient 2 0
0 N.m
Continuous Power
1500 W
Derating Altitude Start
1000.0 m
Derating Temperature Start
40.0 °C
Electrical Connection
connector MIL
Holding Brake
with
Maximum Operational Altitude
1000.0 m
Minimum Operational Altitude
0.0 m
Motor Voltage Drop Coefficient
1
Mounting Support
asian standard flange
Number Of Motor Poles
5.0
Number Of Mounting Holes
4
Product Availability
Non-Stock - Not normally stocked in distribution facility
Range Of Product
Lexium 28
Rotor Inertia
10 kg.cm²
Shaft End
keyed
Software Version
EIME v5.6.0.1
Stator Inductance
6.4 mH 20 °C
Sustainable Packaging
No
Temperature Magnet Hot
100 °C
Torque Constant
1.16 N.m/A 20 °C
Type Of Cooling
natural convection
Database Version
2016-11
Pcr Version
PCR-ed3-EN-2015 04 02
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime, In Y
10
Energy Model - Manufacturing [A1-a3]
Energy model used: China
Energy Model - Use [B6]
Electricity mix; AC; < 1kV; EU-27
Length Total
202 mm
Accuracy Error [Angular]
0.044 °
Distance Shaft Shoulder-flange
8 mm
Nbr. Of Units In Pkg.
1
Take-back
No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Coefficient 1 3-2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3
Continuous Stall Torque7.16 N.m LXM28 7 A, 220 V, three phase7.16 N.m LXM26D 7 A, 220 V, single phase, 7.16 N.m LXM26D 7 A, 220 V, three phase, 7.16 N.m LXM28 7 A, 220 V, single phase
Nominal Speed2000 rpm LXM28... 7 A, 220 V, three phase, 2000 rpm LXM26D 7 A, 220 V, single phase, 2000 rpm LXM26D 7 A, 220 V, three phase, 2000 rpm LXM28... 7 A, 220 V, single phase, 2000 rpm
Peak Stall Torque21.48 N.m LXM28... 7 A, 220 V, three phase21.48 N.m LXM26D 7 A, 220 V, single phase, 21.48 N.m LXM26D 7 A, 220 V, three phase, 21.48 N.m LXM28... 7 A, 220 V, single phase
Saturation Coefficient-3.8243890773E-18, -3.8243890773E-18
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 1.1502804148
Carbon Footprint Of The Manufacturing Phase [A1 To A3]61 kg CO2 eq., 61.3831883408
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1504002EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2444
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionAdvanced
Market SegmentationIndustrial
Centring Collar Diameter110 mm
Coefficient 1 25.62440546E-19 N.m/rpm²
Coefficient 1 63.2E-34 N.m/rpm6
Coefficient 2 18.75000000000026E-06 N.m/rpm
Continuous Stall Current6.18 A
Derating Temperature Scale40.0 °C
Device Short NameBCH2
Feedback Type20 bits single turn absolute encoder
Holding Torque9.6 N.m built-in
Minimum Ambient Air Temperature For Operation0.0 °C
Motor Figures230.0 V
Mounting Holes Diameter9.2 mm
Network Number Of Phases1
Number Of Motor Stacks3
Peak Nominal Torque21.48 N.m
Product Or Component Typeservo motor
ReturnabilityNo
Shaft Diameter22 mm
Sizing ReferenceBCH2
Stator Electrical Time Constant10 ms 20 °C
Stator Resistance0.64 Ohm 20 °C
Temperature Copper Hot135 °C
Temperature Magnet Rt20 °C
Total Lifecycle Carbon Footprint7 025 kg CO2 eq.
Pep CodeENVPEP1504002EN
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime, In Kwh14207.716
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
[Us] Rated Supply Voltage220 V
Brake Pull-in Power19.7 W
Maximum [In] Rated Current6.74 A
Package Weight(Lbs)10.884 kg
Warranty (In Months)18

Environment Attributes Main

Ip Degree Of Protection
IP50 IM V3, IP65 IM B5, IM V1
Take Back
No
Recycled Metal Content At Cr Level
0 %
Toxic Heavy Metal Free
Yes
Carbon Footprint
7025.0080735252
Circularity Profile
ENVEOLI1504002EN
Eu Rohs Directive
Compliant
Packaging Without Single Use Plastic
No
Reach Regulation
Free of Substances of Very High Concern above the threshold
Pep Verification Date
2020-11-01
Type Of Verification For The Pep
Independent internal review
Product CompatibilityLXM28... servo drive 1.5 kW, 220 V, three phaseLXM26D servo drive 1.5 kW, 220 V, single phase, LXM26D servo drive 1.5 kW, 220 V, three phase, LXM28... servo drive 1.5 kW, 220 V, single phase
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Ambient Air Temperature For Operation0-40 °C
Environmental DisclosureENVPEP1504002EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1504002EN
Pcr VersionPCR-ed3-EN-2015 04 02

General Attributes

Phase
single phase, three phase
Range Of Product
Lexium 28
Product Or Component Typeservo motor

ETIM

ETIM 8
EC001851
ETIM 9EC001851

Output Attributes

Nominal Output Power
1500 W LXM28... 7 A, 220 V, three phase1500 W LXM26D 7 A, 220 V, single phase, 1500 W LXM26D 7 A, 220 V, three phase, 1500 W LXM28... 7 A, 220 V, single phase
Output Current 3s Peak21.0 A
