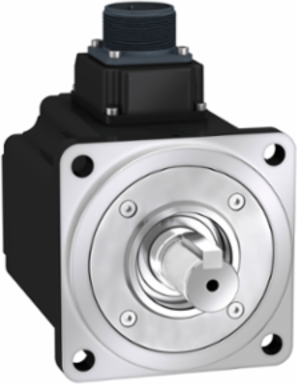

Schneider Electric BCH2LH1030CA6C servo motor BCH, Lexium 28, 100mm, 1000W, 2.4kg.cm², without oil seal, smooth, straight connection
Schneider Electric BCH2LH1030CA6C servo motor BCH, Lexium 28, 100mm, 1000W, 2.4kg.cm², without oil seal, smooth, straight connection
- MPN: BCH2LH1030CA6C
- PPN: SCH-BCH2LH1030CA6C
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1069.88/ EA
Description
servo motor BCH, Lexium 28, 100mm, 1000W, 2.4kg.cm², without oil seal, smooth, straight connection
Specifications
Specifications
- Product Or Component Type
- servo motor
- Device Short Name
- BCH2
Range CompatibilityLexium 28
Complementary
- Circle Diameter Of The Mounting Holes
- 115 mm
- Continuous Power
- 1000 W
- Product Compatibility
- LXM28... servo drive 1 kW, 220 V, single phase || LXM28... servo drive 1 kW, 220 V, three phase
- Maximum Radial Force Fr
- 570 N 3000 rpm
- Mounting Support
- asian standard flange
- Rotor Inertia
- 2.4 kg.cm²
- Maximum Axial Force Fa
- 200 N
- Holding Brake
- without
- Brake Pull-In Power
- 10.4 W
- Maximum Current Irms
- 18.9 A LXM28... 1 kW, 220 V
- Net Weight
- 4.6 kg
- Stator Inductance
- 4.2 mH 20 °C
- [Us] Rated Supply Voltage
- 220 V
- Peak Stall Torque
- 9.54 N.m LXM28... 7 A, 220 V, single phase || 9.54 N.m LXM28... 7 A, 220 V, three phase
- Distance Shaft Shoulder-Flange
- 7 mm
- Mounting Holes Diameter
- 9.2 mm
- Shaft End
- smooth shaft
- Feedback Type
- 20 bits single turn absolute encoder
- Continuous Stall Current
- 5.83 A
- Torque Constant
- 0.55 N.m/A 20 °C
Maximum Permanent Current6.64 A
Maximum Mechanical Speed5000 rpm
Stator Electrical Time Constant6.27 ms 20 °C
Electrical Connectionconnector MIL
Number Of Motor Stacks1
Back Emf Constant33 V/krpm 20 °C
Centring Collar Depth7 mm
Shaft Length45 mm
Network Number Of Phasessingle phase || three phase
Length153.5 mm
Centring Collar Diameter95 mm
Motor Flange Size100 mm
Nominal Output Power1000 W LXM28... 7 A, 220 V, single phase || 1000 W LXM28... 7 A, 220 V, three phase
Number Of Mounting Holes4
Shaft Diameter22 mm
Type Of Coolingnatural convection
Nominal Speed3000 rpm LXM28... 7 A, 220 V, single phase || 3000 rpm LXM28... 7 A, 220 V, three phase
Stator Resistance0.67 Ohm 20 °C
Nominal Torque3.18 N.m LXM28... 7 A, 220 V, single phase || 3.18 N.m LXM28... 7 A, 220 V, three phase
Continuous Stall Torque3.18 N.m LXM28... 7 A, 220 V, single phase || 3.18 N.m LXM28... 7 A, 220 V, three phase
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1504002EN
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1504002EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach Free Of SvhcYes
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Environment
- Ambient Air Temperature For Operation
- -20-40 °C
Ip Degree Of ProtectionIP54 IM B5, IM V1 || IP50 IM V3
