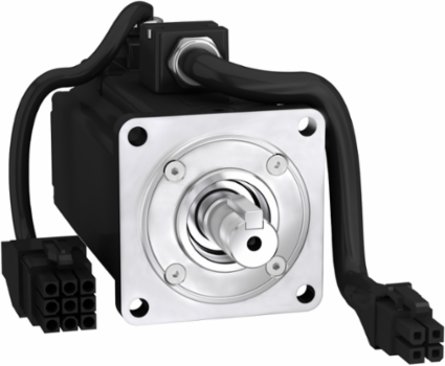

Schneider Electric BCH2LD0232CA5C servo motor BCH, Lexium 28, 60mm, 200W, 0.16kg.cm², with oil seal, smooth, leads connection
Schneider Electric BCH2LD0232CA5C servo motor BCH, Lexium 28, 60mm, 200W, 0.16kg.cm², with oil seal, smooth, leads connection
- MPN: BCH2LD0232CA5C
- PPN: SCH-BCH2LD0232CA5C
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$698.66/ EA
Description
servo motor BCH, Lexium 28, 60mm, 200W, 0.16kg.cm², with oil seal, smooth, leads connection
Specifications
Physical Attributes
- Motor Flange Size
- 60 mm
Shaft Length30 mm
Complementary Attributes
- Maximum Current Irms
- 4.31 A LXM28... 0.2 kW, 220 V, 4.31 A LXM28... 0.2 kW, 110 V, 4.5 A
- Line Rated Current
- 1.3 A
- Maximum Axial Force Fa
- 70 N
- Maximum Operational Altitude
- 1000.0 m
- Maximum Radial Force Fr
- 200 N 3000 rpm
- Minimum Operational Altitude
- 0.0 m
Us Rated Supply Voltage220 V, 110 V
Maximum Ambient Air Temperature For Operation40.0 °C
Maximum Mechanical Speed5000 rpm
Maximum Permanent Current1.3 A
Minimum Ambient Air Temperature For Operation0.0 °C
Maximum In Rated Current1.3 A
Important Information Attributes
- Coefficient 1 1
- -1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm
- Coefficient 1 5
- -7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5
- Inertia
- 0.0 kg.cm² of brake, 0.15 kg.cm² of motor
- Nominal Torque
- 0.64 N.m half speed, 0.64 N.m full speed, 0.64 N.m LXM28... 1.5 A, 220 V, single phase, 0.64 N.m LXM28... 1.5 A, 220 V, three phase, 0.64 N.m LXM28... 3.6 A, 110 V, single phase
- Phase
- single phase, three phase
- Carbon Footprint Of The Distribution Phase A4
- 0.2154711883, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.0106438161, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 1 594 kg CO2 eq., 1594.2102431081
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Centring Collar Diameter
- 50 mm
- Coefficient 1 2
- 5.62440546E-19 N.m/rpm²
- Coefficient 1 6
- 3.2E-34 N.m/rpm6
- Coefficient 2 1
- 8.75000000000026E-06 N.m/rpm
- Continuous Stall Current
- 1.11 A
- Derating Temperature Scale
- 40.0 °C
- Device Short Name
- BCH2
- Electrical Connection
- free lead
- Holding Brake
- without
- Minimum Ambient Air Temperature For Operation
- 0.0 °C
- Motor Figures
- 230.0 V
- Mounting Holes Diameter
- 5.5 mm
- Network Number Of Phases
- 1
- Number Of Motor Stacks
- 1
- Peak Nominal Torque
- 1.92 N.m
- Product Or Component Type
- servo motor
- Rotor Inertia
- 0.16 kg.cm²
- Shaft End
- smooth shaft
- Software Version
- EIME v5.6.0.1
- Stator Inductance
- 22.68 mH 20 °C
- Sustainable Packaging
- No
- Temperature Magnet Hot
- 100 °C
- Torque Constant
- 0.58 N.m/A 20 °C
- Type Of Cooling
- natural convection
- Warranty In Months
- 18
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: China
- Energy Model - Use [B6]
- Electricity mix; AC; < 1kV; EU-27
- Offer Owner Code
- 190786
- Length Total
- 104 mm
Coefficient 1 3-2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3
Continuous Stall Torque0.64 N.m LXM28 1.5 A, 220 V, single phase, 0.64 N.m LXM28 1.5 A, 220 V, three phase, 0.64 N.m LXM28 3.6 A, 110 V, single phase
Nominal Speed3000 rpm LXM28... 1.5 A, 220 V, single phase, 3000 rpm LXM28... 1.5 A, 220 V, three phase, 3000 rpm LXM28... 3.6 A, 110 V, single phase, 3000 rpm
Peak Stall Torque1.92 N.m LXM28... 1.5 A, 220 V, single phase, 1.92 N.m LXM28... 1.5 A, 220 V, three phase, 1.92 N.m LXM28... 3.6 A, 110 V, single phase
Saturation Coefficient-3.8243890773E-18, -3.8243890773E-18
Carbon Footprint Of The End Of Life Phase C1 To C40.2 kg CO2 eq., 0.1793621188
Carbon Footprint Of The Manufacturing Phase A1 To A310 kg CO2 eq., 9.5714215247
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1504002EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2444
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Brake Pull In Power11.2 W
Circle Diameter Of The Mounting Holes70 mm
Coefficient 1 47.11E-26 N.m/rpm4
Coefficient 2 00 N.m
Continuous Power200 W
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Distance Shaft Shoulder Flange5.5 mm
Feedback Type20 bits single turn absolute encoder
Maximum Operational Altitude1000.0 m
Minimum Operational Altitude0.0 m
Motor Voltage Drop Coefficient1
Mounting Supportasian standard flange
Number Of Motor Poles4.0
Number Of Mounting Holes4
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Shaft Diameter14 mm
Sizing ReferenceBCH2
Stator Electrical Time Constant1.84 ms 20 °C
Stator Resistance12.2 Ohm 20 °C
Temperature Copper Hot135 °C
Temperature Magnet Rt20 °C
Total Lifecycle Carbon Footprint1 604 kg CO2 eq.
Maximum In Rated Current1.3 A
Pep CodeENVPEP1504002EN
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime, In Kwh3253.8438
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Pn1
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-40 °C, -20-40 °C
- Product Compatibility
- LXM28... servo drive 0.2 kW, 220 V, single phase, LXM28... servo drive 0.2 kW, 220 V, three phase, LXM28... servo drive 0.2 kW, 110 V, single phase
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1504002EN
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2020-11-01
- Type Of Verification For The Pep
- Independent internal review
Ip Degree Of ProtectionIP50 IM V3, IP65 IM B5, IM V1
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint1604.1871417561
Environmental DisclosureENVPEP1504002EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1504002EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Phase
- single phase, three phase
Product Or Component Typeservo motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 200 W LXM28... 1.5 A, 220 V, single phase, 200 W LXM28... 1.5 A, 220 V, three phase, 200 W LXM28... 3.6 A, 110 V, single phase
Output Current 3s Peak4.5 A
Specifications
- Country of Origin
- Brazil, Switzerland, China, France, Sweden
Downloads
Similar Products
