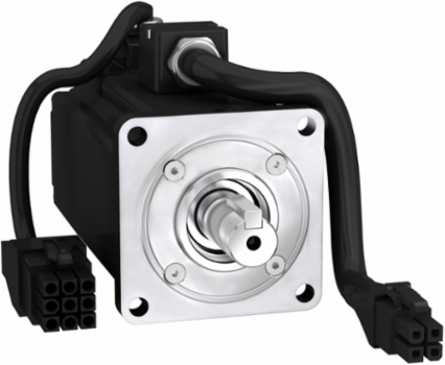

Schneider Electric BCH2LD0432CF5C Servo Motor Lexium 28 60mm 400W Smooth Shaft with Brake
- MPN: BCH2LD0432CF5C
- PPN: SCH-BCH2LD0432CF5C
CAD
$1131.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Schneider Electric introduces the BCH2LD0432CF5C Servo Motor from its Lexium 28 series, designed for precision and efficiency in motion control applications. With a compact 60mm design and a powerful 400W output, this servo motor features a smooth shaft and an integrated brake, ensuring reliable performance in automation and control systems. Engineered for versatility, it stands out in environments that demand accuracy and responsiveness, making it an ideal choice for advanced motion applications across various sectors.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Switzerland, China, France, Sweden
Physical Attributes
- Motor Flange Size
- 60 mm
Shaft Length30 mm
Complementary Attributes
- Maximum Current Irms
- 7.76 A LXM28... 0.4 kW, 220 V, 7.76 A LXM28... 0.4 kW, 110 V, 7.8 A
- Maximum Ambient Air Temperature For Operation
- 40.0 °C
- Maximum Mechanical Speed
- 5000 rpm
- Maximum Permanent Current
- 2.5 A
- Minimum Ambient Air Temperature For Operation
- 0.0 °C
Line Rated Current2.5 A
Maximum Axial Force Fa70 N
Maximum Operational Altitude1000.0 m
Maximum Radial Force Fr200 N 3000 rpm
Minimum Operational Altitude0.0 m
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Coefficient 1 1
- -1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm
- Coefficient 1 5
- -7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5
- Nominal Speed
- LXM28... 2.6 A, 220 V, single phase, LXM28... 2.6 A, 220 V, three phase LXM28... 5.7 A, 110 V, single phase, 3000 rpm
- Peak Stall Torque
- 3.81 N.m LXM28... 2.6 A, 220 V, single phase, 3.81 N.m LXM28... 2.6 A, 220 V, three phase3.81 N.m LXM28... 5.7 A, 110 V, single phase
- Saturation Coefficient
- -3.8243890773E-18, -3.8243890773E-18
- Carbon Footprint Of The Distribution Phase [A4]
- 0.3212714126, 0.3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0158701211, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 2 958 kg CO2 eq., 2958.0599620357
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 4
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Circle Diameter Of The Mounting Holes
- 70 mm
- Coefficient 1 4
- 7.11E-26 N.m/rpm4
- Coefficient 2 0
- 0 N.m
- Continuous Power
- 400 W
- Derating Altitude Start
- 1000.0 m
- Derating Temperature Start
- 40.0 °C
- Electrical Connection
- free lead
- Holding Brake
- with
- Inertia
- 0.27 kg.cm² of brake0.28 kg.cm² of motor
- Minimum Ambient Air Temperature For Operation
- 0.0 °C
- Motor Figures
- 230.0 V
- Mounting Holes Diameter
- 5.5 mm
- Network Number Of Phases
- 1
- Number Of Motor Stacks
- 2
- Peak Nominal Torque
- 3.81 N.m
- Product Or Component Type
- servo motor
- Returnability
- No
- Shaft Diameter
- 14 mm
- Sizing Reference
- BCH2
- Stator Electrical Time Constant
- 2.31 ms 20 °C
- Stator Resistance
- 5.2 Ohm 20 °C
- Temperature Copper Hot
- 135 °C
- Temperature Magnet Rt
- 20 °C
- Total Lifecycle Carbon Footprint
- 2 973 kg CO2 eq.
- Pep Code
- ENVPEP1504002EN
- Pep Verification Date
- 2020-11-01
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime In Kwh
- 6037.513
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- Accuracy Error [Angular]
- 0.044 °
- Distance Shaft Shoulder-flange
- 5.5 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8501514040
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Coefficient 1 3-2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3
Continuous Stall Torque1.27 N.m LXM28 2.6 A, 220 V, single phase, 1.27 N.m LXM28 2.6 A, 220 V, three phase1.27 N.m LXM28 5.7 A, 110 V, single phase
Nominal Torque1.27 N.m half speed, 1.27 N.m full speed, 1.27 N.m LXM28... 2.6 A, 220 V, single phase, 1.27 N.m LXM28... 2.6 A, 220 V, three phase1.27 N.m LXM28... 5.7 A, 110 V, single phase
Phasesingle phase, three phase
[Us] Rated Supply Voltage220 V, 110 V
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.2674321413
Carbon Footprint Of The Manufacturing Phase [A1 To A3]14 kg CO2 eq., 14.271161435
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1504002EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2444
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionAdvanced
Market SegmentationIndustrial
Centring Collar Diameter50 mm
Coefficient 1 25.62440546E-19 N.m/rpm²
Coefficient 1 63.2E-34 N.m/rpm6
Coefficient 2 18.75000000000026E-06 N.m/rpm
Continuous Stall Current2.19 A
Derating Temperature Scale40.0 °C
Device Short NameBCH2
Feedback Type20 bits single turn absolute encoder
Holding Torque1.3 N.m built-in
Maximum Operational Altitude1000.0 m
Minimum Operational Altitude0.0 m
Motor Voltage Drop Coefficient1
Mounting Supportasian standard flange
Number Of Motor Poles4.0
Number Of Mounting Holes4
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLexium 28
Rotor Inertia0.28 kg.cm²
Shaft Endsmooth shaft
Software VersionEIME v5.6.0.1
Stator Inductance12.0 mH 20 °C
Sustainable PackagingNo
Temperature Magnet Hot100 °C
Torque Constant0.58 N.m/A 20 °C
Type Of Coolingnatural convection
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: China
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Length Total165 mm
Brake Pull-in Power11.2 W
Maximum [In] Rated Current2.5 A
Package Weight(Lbs)2.49 kg
Warranty (In Months)18
Environment Attributes Main
- Product Compatibility
- LXM28... servo drive 0.4 kW, 220 V, single phase, LXM28... servo drive 0.4 kW, 220 V, three phase, LXM28... servo drive 0.4 kW, 110 V, single phase
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-40 °C
- Environmental Disclosure
- ENVPEP1504002EN
- Ip Degree Of Protection
- IP50 IM V3IP65 IM B5, IM V1
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2020-11-01
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint2972.9356971456
Circularity ProfileENVEOLI1504002EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP1504002EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Phase
- single phase, three phase
- Range Of Product
- Lexium 28
Product Or Component Typeservo motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 400 W LXM28... 2.6 A, 220 V, single phase, 400 W LXM28... 2.6 A, 220 V, three phase400 W LXM28... 5.7 A, 110 V, single phase
Output Current 3s Peak7.8 A
