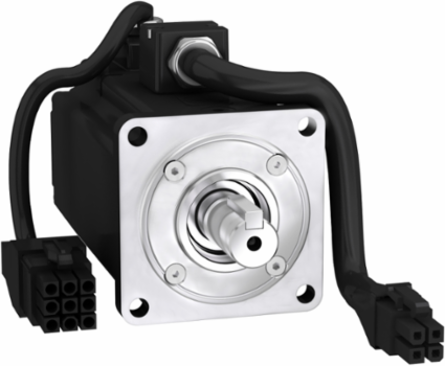

Schneider Electric BCH2LD0232CF5C servo motor BCH, Lexium 28, 60mm, 200W, 0.17kg.cm², with oil seal, smooth, brake, leads connection
- MPN: BCH2LD0232CF5C
- PPN: SCH-BCH2LD0232CF5C
CAD
$1058.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
servo motor BCH, Lexium 28, 60mm, 200W, 0.17kg.cm², with oil seal, smooth, brake, leads connection
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Switzerland, China, France, Sweden
Physical Attributes
- Motor Flange Size
- 60 mm
Shaft Length30 mm
Complementary Attributes
- Maximum Current Irms
- 4.31 A LXM28... 0.2 kW, 220 V, 4.31 A LXM28... 0.2 kW, 110 V, 4.5 A
- Maximum Ambient Air Temperature For Operation
- 40.0 °C
- Maximum Mechanical Speed
- 5000 rpm
- Maximum Permanent Current
- 1.3 A
- Minimum Ambient Air Temperature For Operation
- 0.0 °C
Line Rated Current1.3 A
Maximum Axial Force Fa70 N
Maximum Operational Altitude1000.0 m
Maximum Radial Force Fr200 N 3000 rpm
Minimum Operational Altitude0.0 m
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Coefficient 1 1
- -1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm
- Coefficient 1 5
- -7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5
- Inertia
- 0.16 kg.cm² of brake, 0.17 kg.cm² of motor
- Nominal Torque
- 0.64 N.m half speed, 0.64 N.m full speed, 0.64 N.m LXM28... 1.5 A, 220 V, single phase, 0.64 N.m LXM28... 1.5 A, 220 V, three phase, 0.64 N.m LXM28... 3.6 A, 110 V, single phase
- Phase
- single phase, three phase
- [Us] Rated Supply Voltage
- 220 V, 110 V
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.2 kg CO2 eq., 0.22339713
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 12 kg CO2 eq., 11.9212914798
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1504002EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2444
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 4
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Centring Collar Diameter
- 50 mm
- Coefficient 1 2
- 5.62440546E-19 N.m/rpm²
- Coefficient 1 6
- 3.2E-34 N.m/rpm6
- Coefficient 2 1
- 8.75000000000026E-06 N.m/rpm
- Continuous Stall Current
- 1.11 A
- Derating Temperature Scale
- 40.0 °C
- Device Short Name
- BCH2
- Feedback Type
- 20 bits single turn absolute encoder
- Holding Torque
- 1.3 N.m built-in
- Minimum Ambient Air Temperature For Operation
- 0.0 °C
- Motor Figures
- 230.0 V
- Mounting Holes Diameter
- 5.5 mm
- Network Number Of Phases
- 1
- Number Of Motor Stacks
- 1
- Peak Nominal Torque
- 1.92 N.m
- Product Or Component Type
- servo motor
- Returnability
- No
- Shaft Diameter
- 14 mm
- Sizing Reference
- BCH2
- Stator Electrical Time Constant
- 1.84 ms 20 °C
- Stator Resistance
- 12.2 Ohm 20 °C
- Temperature Copper Hot
- 135 °C
- Temperature Magnet Rt
- 20 °C
- Total Lifecycle Carbon Footprint
- 241 kg CO2 eq.
- Pep Code
- ENVPEP1504002EN
- Pep Verification Date
- 2020-11-01
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime, In Kwh
- 466.47
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- Accuracy Error [Angular]
- 0.044 °
- Distance Shaft Shoulder-flange
- 5.5 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Coefficient 1 3-2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3
Continuous Stall Torque0.64 N.m LXM28 1.5 A, 220 V, single phase, 0.64 N.m LXM28 1.5 A, 220 V, three phase, 0.64 N.m LXM28 3.6 A, 110 V, single phase
Nominal Speed3000 rpm LXM28... 1.5 A, 220 V, single phase, 3000 rpm LXM28... 1.5 A, 220 V, three phase, 3000 rpm LXM28... 3.6 A, 110 V, single phase, 3000 rpm
Peak Stall Torque1.92 N.m LXM28... 1.5 A, 220 V, single phase, 1.92 N.m LXM28... 1.5 A, 220 V, three phase, 1.92 N.m LXM28... 3.6 A, 110 V, single phase
Saturation Coefficient-3.8243890773E-18, -3.8243890773E-18
Carbon Footprint Of The Distribution Phase [A4]0.2683713004, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0132569686, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]229 kg CO2 eq., 228.5454673954
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id4
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Circle Diameter Of The Mounting Holes70 mm
Coefficient 1 47.11E-26 N.m/rpm4
Coefficient 2 00 N.m
Continuous Power200 W
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Electrical Connectionfree lead
Holding Brakewith
Maximum Operational Altitude1000.0 m
Minimum Operational Altitude0.0 m
Motor Voltage Drop Coefficient1
Mounting Supportasian standard flange
Number Of Motor Poles4.0
Number Of Mounting Holes4
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLexium 28
Rotor Inertia0.17 kg.cm²
Shaft Endsmooth shaft
Software VersionEIME v5.6.0.1
Stator Inductance22.68 mH 20 °C
Sustainable PackagingNo
Temperature Magnet Hot100 °C
Torque Constant0.58 N.m/A 20 °C
Type Of Coolingnatural convection
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: China
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Length Total140 mm
Brake Pull-in Power11.2 W
Maximum [In] Rated Current1.3 A
Package Weight(Lbs)2.08 kg
Warranty (In Months)18
Environment Attributes Main
- Ip Degree Of Protection
- IP50 IM V3, IP65 IM B5, IM V1
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 240.9717842743
- Circularity Profile
- ENVEOLI1504002EN
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2020-11-01
- Type Of Verification For The Pep
- Independent internal review
Product CompatibilityLXM28... servo drive 0.2 kW, 220 V, single phase, LXM28... servo drive 0.2 kW, 220 V, three phase, LXM28... servo drive 0.2 kW, 110 V, single phase
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Ambient Air Temperature For Operation0-40 °C
Environmental DisclosureENVPEP1504002EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP1504002EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Phase
- single phase, three phase
- Range Of Product
- Lexium 28
Product Or Component Typeservo motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 200 W LXM28... 1.5 A, 220 V, single phase, 200 W LXM28... 1.5 A, 220 V, three phase, 200 W LXM28... 3.6 A, 110 V, single phase
Output Current 3s Peak4.5 A
