Lexium 28 Servo Motor 80mm 750W 5000 RPM Smooth Shaft
Schneider Electric

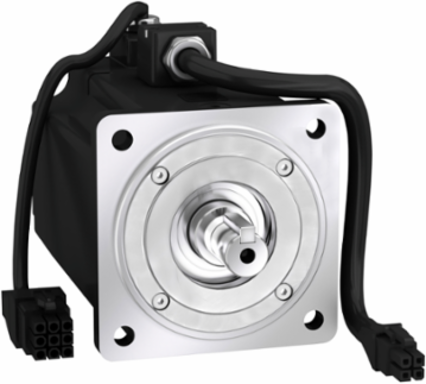

Schneider Electric BCH2LF0732CA5C Lexium 28 Servo Motor 80mm 750W 5000 RPM Smooth Shaft

  • MPN: BCH2LF0732CA5C
  • PPN: SCH-BCH2LF0732CA5C

CAD

$911.86

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The Lexium 28 Servo Motor from Schneider Electric is engineered for high-performance motion control applications. With a compact 80mm design, this 750W motor features a smooth shaft and operates at an impressive speed of 5000 RPM, making it ideal for precision-driven tasks in automation and control environments. Its sophisticated engineering ensures reliable operation, catering to the evolving needs of modern manufacturing and automation processes. Whether you are looking to enhance productivity or streamline control systems, this servo motor stands out as a crucial component in your motion control toolkit.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Brazil, Switzerland, China, France, Sweden

Physical Attributes

Motor Flange Size
80 mm
Shaft Length35 mm

Complementary Attributes

Maximum Current Irms
13.23 A LXM28... 0.75 kW, 220 V, 13.23 A LXM28... 0.75 kW, 110 V, 13.5 A
Maximum Ambient Air Temperature For Operation
40.0 °C
Maximum Mechanical Speed
5000 rpm
Maximum Permanent Current
4.29 A
Minimum Ambient Air Temperature For Operation
0.0 °C
Line Rated Current4.29 A
Maximum Axial Force Fa115 N
Maximum Operational Altitude1000.0 m
Maximum Radial Force Fr332 N 3000 rpm
Minimum Operational Altitude0.0 m

Important Information Attributes

Coefficient 1 1
-1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm
Coefficient 1 5
-7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5
Nominal Speed
LXM28... 4.5 A, 220 V, single phase, LXM28... 4.5 A, 220 V, three phase LXM28... 9 A, 110 V, single phase, 3000 rpm
Peak Stall Torque
7.16 N.m LXM28... 4.5 A, 220 V, single phase, 7.16 N.m LXM28... 4.5 A, 220 V, three phase7.16 N.m LXM28... 9 A, 110 V, single phase
Saturation Coefficient
-3.8243890773E-18, -3.8243890773E-18
Carbon Footprint Of The Distribution Phase [A4]
0.4483607063, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.0221480605, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
3 318 kg CO2 eq., 3317.7034249803
Local Publishable Date
2026-01-12
Stocking Flag
Y
Device Type
Motion - drive & motor
Traceability
Yes
Average Life Duration
15 year(s)
Weee Product Category
5
Eoli Availability Display
Yes
Reach Full Compliance Status
Free of Substances of Very High Concern above the threshold
Reach Compliance Directive
Free of Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant
Rohs Eur Full Compliance Status
Compliant
China Rohs Label
1
Without Single Use Plastic
No
Product Kit Identifier
N
Circle Diameter Of The Mounting Holes
90 mm
Coefficient 1 4
7.11E-26 N.m/rpm4
Coefficient 2 0
0 N.m
Continuous Power
750 W
Derating Altitude Start
1000.0 m
Derating Temperature Start
40.0 °C
Electrical Connection
free lead
Holding Brake
without
Maximum Operational Altitude
1000.0 m
Minimum Operational Altitude
0.0 m
Motor Voltage Drop Coefficient
1
Mounting Support
asian standard flange
Number Of Motor Poles
4.0
Number Of Mounting Holes
4
Product Availability
Non-Stock - Not normally stocked in distribution facility
Range Of Product
Lexium 28
Rotor Inertia
1.19 kg.cm²
Shaft End
smooth shaft
Software Version
EIME v5.6.0.1
Stator Inductance
6.1 mH 20 °C
Sustainable Packaging
No
Temperature Magnet Hot
100 °C
Torque Constant
0.6 N.m/A 20 °C
Type Of Cooling
natural convection
Database Version
2016-11
Pcr Version
PCR-ed3-EN-2015 04 02
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime In Y
10
Energy Model - Manufacturing [A1-a3]
Energy model used: China
Energy Model - Use [B6]
Electricity mix; AC; < 1kV; EU-27
Length Total
138 mm
Brake Pull-in Power
10.2 W
Maximum [In] Rated Current
4.29 A
Package Weight(Lbs)
3.475 kg
Warranty (In Months)
18
Coefficient 1 3-2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3
Continuous Stall Torque2.39 N.m LXM28 4.5 A, 220 V, single phase, 2.39 N.m LXM28 4.5 A, 220 V, three phase2.39 N.m LXM28 9 A, 110 V, single phase
Nominal Torque2.39 N.m half speed, 2.39 N.m full speed, 2.39 N.m LXM28... 4.5 A, 220 V, single phase, 2.39 N.m LXM28... 4.5 A, 220 V, three phase2.39 N.m LXM28... 9 A, 110 V, single phase
Phasethree phase, single phase
[Us] Rated Supply Voltage220 V, 110 V
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4 kg CO2 eq., 0.3732235706
Carbon Footprint Of The Manufacturing Phase [A1 To A3]20 kg CO2 eq., 19.9165807175
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1504002EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2444
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Centring Collar Diameter70 mm
Coefficient 1 25.62440546E-19 N.m/rpm²
Coefficient 1 63.2E-34 N.m/rpm6
Coefficient 2 18.75000000000026E-06 N.m/rpm
Continuous Stall Current4.01 A
Derating Temperature Scale40.0 °C
Device Short NameBCH2
Feedback Type20 bits single turn absolute encoder
Inertia0.0 kg.cm² of brake1.53 kg.cm² of motor
Minimum Ambient Air Temperature For Operation0.0 °C
Motor Figures230.0 V
Mounting Holes Diameter6.6 mm
Network Number Of Phases1
Number Of Motor Stacks2
Peak Nominal Torque7.16 N.m
Product Or Component Typeservo motor
ReturnabilityNo
Shaft Diameter19 mm
Sizing ReferenceBCH2
Stator Electrical Time Constant4.07 ms 20 °C
Stator Resistance1.5 Ohm 20 °C
Temperature Copper Hot135 °C
Temperature Magnet Rt20 °C
Total Lifecycle Carbon Footprint3 338 kg CO2 eq.
Pep CodeENVPEP1504002EN
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh6771.559
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Accuracy Error [Angular]0.044 °
Distance Shaft Shoulder-flange4 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8501524000

Environment Attributes Main

Ambient Air Temperature For Operation
-20-40 °C, -20-40 °C
Take Back
No
Recycled Metal Content At Cr Level
0 %
Toxic Heavy Metal Free
Yes
Carbon Footprint
3338.4637380352
Environmental Disclosure
ENVPEP1504002EN
Ip Degree Of Protection
IP50 IM V3IP65 IM B5, IM V1
Packaging Without Single Use Plastic
No
Reach Regulation
Free of Substances of Very High Concern above the threshold
Pep Verification Date
2020-11-01
Type Of Verification For The Pep
Independent internal review
Product CompatibilityLXM28... servo drive 0.75 kW, 220 V, single phase, LXM28... servo drive 0.75 kW, 220 V, three phase, LXM28... servo drive 0.75 kW, 110 V, single phase
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI1504002EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1504002EN
Pcr VersionPCR-ed3-EN-2015 04 02

General Attributes

Phase
three phase, single phase
Range Of Product
Lexium 28
Product Or Component Typeservo motor

ETIM

ETIM 8
EC001851
ETIM 9EC001851

Output Attributes

Nominal Output Power
750 W LXM28... 4.5 A, 220 V, single phase, 750 W LXM28... 4.5 A, 220 V, three phase750 W LXM28... 9 A, 110 V, single phase
Output Current 3s Peak13.5 A
