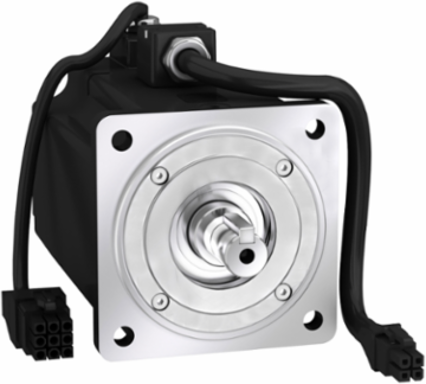

Schneider Electric BCH2LF0731CF5C servo motor BCH, Lexium 28, 80mm, 750W, 1.24kg.cm², without oil seal, with key, brake, leads connection

MPN: BCH2LF0731CF5C
PPN: SCH-BCH2LF0731CF5C

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$1368.75/ EA

Qty:

Loading add to cart quantity...

Description

servo motor BCH, Lexium 28, 80mm, 750W, 1.24kg.cm², without oil seal, with key, brake, leads connection

Specifications

Physical Attributes

Key Width: 6 mm

Shaft Length: 35 mm

Motor Flange Size80 mm

Complementary Attributes

Maximum Current Irms: 13.23 A LXM28... 0.75 kW, 220 V, 13.23 A LXM28... 0.75 kW, 110 V, 13.5 A

Line Rated Current: 4.29 A

Maximum Axial Force Fa: 115 N

Maximum Operational Altitude: 1000.0 m

Maximum Radial Force Fr: 332 N 3000 rpm

Minimum Operational Altitude: 0.0 m

Us Rated Supply Voltage220 V, 110 V

Maximum Ambient Air Temperature For Operation40.0 °C

Maximum Mechanical Speed5000 rpm

Maximum Permanent Current4.29 A

Minimum Ambient Air Temperature For Operation0.0 °C

Maximum In Rated Current4.29 A

Important Information Attributes

Persona Type Ids: EU, OM, OM8

Coefficient 1 1: -1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm

Coefficient 1 5: -7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5

Inertia: 1.58 kg.cm² of brake, 1.24 kg.cm² of motor

Nominal Torque: 2.39 N.m half speed, 2.39 N.m full speed, 2.39 N.m LXM28... 4.5 A, 220 V, single phase, 2.39 N.m LXM28... 4.5 A, 220 V, three phase, 2.39 N.m LXM28... 9 A, 110 V, single phase

Phase: three phase, single phase

Carbon Footprint Of The Distribution Phase A4: 0.5431938341, 0.5 kg CO2 eq.

Carbon Footprint Of The Installation Phase A5: 0.0268326143, 0 kg CO2 eq.

Carbon Footprint Of The Use Phase B2 B3 B4 B6: 441 kg CO2 eq., 440.7815868828

Local Publishable Date: 2026-01-12

Return Indicator: Y

Stock Policy: 2

Serviceability: Yes

Field Service Division: IDIBS

Legacy Weee Scope: Out

Scope Perimeter: At least in Europe

End Of Life Doc Ref: ENVEOLI1504002EN

Reach Full Compliance Status Id: NOT_CONTAINING_SVHC

Rohs Eur In Scope: No

Rohs Eur Conformity Date: 2444

China Rohs In Scope: Yes

With Recycled Cardboard: No

Product Contributes To Saved And Avoided Emissions: No

Tier: 4

Function Option: Advanced

Market Segmentation: Industrial

Brake Pull In Power: 10.2 W

Circle Diameter Of The Mounting Holes: 90 mm

Coefficient 1 4: 7.11E-26 N.m/rpm4

Coefficient 2 0: 0 N.m

Continuous Power: 750 W

Derating Altitude Start: 1000.0 m

Derating Temperature Start: 40.0 °C

Distance Shaft Shoulder Flange: 4 mm

Feedback Type: 20 bits single turn absolute encoder

Holding Torque: 2.5 N.m built-in

Minimum Ambient Air Temperature For Operation: 0.0 °C

Motor Figures: 230.0 V

Mounting Holes Diameter: 6.6 mm

Network Number Of Phases: 1

Number Of Motor Stacks: 2

Peak Nominal Torque: 7.16 N.m

Product Or Component Type: servo motor

Rotor Inertia: 1.24 kg.cm²

Shaft End: keyed

Software Version: EIME v5.6.0.1

Stator Inductance: 6.1 mH 20 °C

Sustainable Packaging: No

Temperature Magnet Hot: 100 °C

Torque Constant: 0.6 N.m/A 20 °C

Type Of Cooling: natural convection

Warranty In Months: 18

Database Version: 2016-11

Pcr Version: PCR-ed3-EN-2015 04 02

Data Source: extrapolated product

Functional Unit Quantity: 1

Product Weight In G2: 4210

Energy Consumption On Product Lifetime In Kwh: 899.652

Energy Model Installation A5 2: Electricity mix; AC; < 1kV; EU-27

Energy Model End Of Life C1 C4 2: Electricity mix; AC; < 1kV; EU-27

Length Total: 178 mm

Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder

Coefficient 1 3-2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3

Continuous Stall Torque2.39 N.m LXM28 4.5 A, 220 V, single phase, 2.39 N.m LXM28 4.5 A, 220 V, three phase, 2.39 N.m LXM28 9 A, 110 V, single phase

Nominal Speed3000 rpm LXM28... 4.5 A, 220 V, single phase, 3000 rpm LXM28... 4.5 A, 220 V, three phase, 3000 rpm LXM28... 9 A, 110 V, single phase, 3000 rpm

Peak Stall Torque7.16 N.m LXM28... 4.5 A, 220 V, single phase, 7.16 N.m LXM28... 4.5 A, 220 V, three phase, 7.16 N.m LXM28... 9 A, 110 V, single phase

Saturation Coefficient-3.8243890773E-18, -3.8243890773E-18

Carbon Footprint Of The End Of Life Phase C1 To C40.5 kg CO2 eq., 0.4521643834

Carbon Footprint Of The Manufacturing Phase A1 To A324 kg CO2 eq., 24.1291524664

Local Data StatusPublishable

Global Commercial StatusCommercialised

Stocking FlagN

Device TypeMotion - drive & motor

TraceabilityYes

Average Life Duration15 year(s)

Weee Product Category5

Eoli Availability DisplayYes

Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold

Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold

Rohs Eur StatusCompliant

Rohs Eur Full Compliance StatusCompliant

China Rohs Label1

Without Single Use PlasticNo

Tier Id4

Function Option IdADVANCED

Market Segmentation IdINDUSTRIAL

Product Kit IdentifierN

Centring Collar Diameter70 mm

Coefficient 1 25.62440546E-19 N.m/rpm²

Coefficient 1 63.2E-34 N.m/rpm6

Coefficient 2 18.75000000000026E-06 N.m/rpm

Continuous Stall Current4.01 A

Derating Temperature Scale40.0 °C

Device Short NameBCH2

Electrical Connectionfree lead

Holding Brakewith

Maximum Operational Altitude1000.0 m

Minimum Operational Altitude0.0 m

Motor Voltage Drop Coefficient1

Mounting Supportasian standard flange

Number Of Motor Poles4.0

Number Of Mounting Holes4

Product AvailabilityStock - Normally stocked in distribution facility

ReturnabilityYes

Shaft Diameter19 mm

Sizing ReferenceBCH2

Stator Electrical Time Constant4.07 ms 20 °C

Stator Resistance1.5 Ohm 20 °C

Temperature Copper Hot135 °C

Temperature Magnet Rt20 °C

Total Lifecycle Carbon Footprint466 kg CO2 eq.

Maximum In Rated Current4.29 A

Pep CodeENVPEP1504002EN

Pep Verification Date2020-11-01

Type Of Verification For The PepIndependent internal review

Functional Unit DescriptionTo coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years

Functional Unit Unitunité (unit)

Reference Lifetime In Y210

Energy Model Manufacturing A1 A3 2Energy model used: China

Energy Model Use B6 2Electricity mix; AC; < 1kV; EU-27

Offer Owner Code190786

Environment Attributes Main

Ip Degree Of Protection: IP54 IM B5, IM V1, IP50 IM V3

Take Back: Nej

Recycled Metal Content At Cr Level: 0 %

Toxic Heavy Metal Free: Yes

Carbon Footprint: 465.932930181

Circularity Profile: ENVEOLI1504002EN

Eu Rohs Directive: Compliant

Packaging Without Single Use Plastic: No

Reach Regulation: Free of Substances of Very High Concern above the threshold

Pep Verification Date: 2020-11-01

Type Of Verification For The Pep: Independent internal review

Product CompatibilityLXM28... servo drive 0.75 kW, 220 V, single phase, LXM28... servo drive 0.75 kW, 220 V, three phase, LXM28... servo drive 0.75 kW, 110 V, single phase

Reach Free ShvcYes

China Rohs RegulationX

Mercury FreeYes

Ambient Air Temperature For Operation0-40 °C

Environmental DisclosureENVPEP1504002EN

Packaging Made With Recycled CardboardNo

Reach Free Of SvhcYes

Pep CodeENVPEP1504002EN

Pcr VersionPCR-ed3-EN-2015 04 02

General Attributes

Phase: three phase, single phase

Product Or Component Typeservo motor

ETIM

ETIM 8: EC001851

ETIM 9EC001851

Output Attributes

Nominal Output Power: 750 W LXM28... 4.5 A, 220 V, single phase, 750 W LXM28... 4.5 A, 220 V, three phase, 750 W LXM28... 9 A, 110 V, single phase

Output Current 3s Peak13.5 A

Specifications

Country of Origin: France, Sweden
