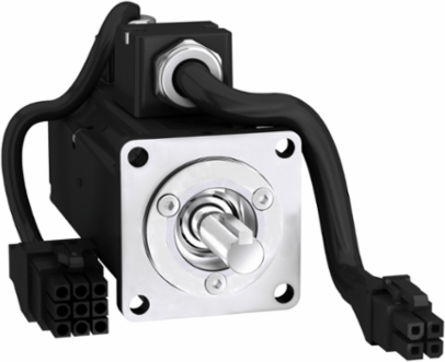

Schneider Electric BCH2MB0132CA5C Servo Motor, Lexium 28, 40mm, 100W, Smooth Shaft, 5000 RPM

  • MPN: BCH2MB0132CA5C
  • PPN: SCH-BCH2MB0132CA5C

CAD

$672.95

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The Schneider Electric BCH2MB0132CA5C Servo Motor is an advanced solution designed for precision motion control in automation applications. With a compact 40mm design and a robust 100W output, this motor operates at an impressive speed of 5000 RPM, ensuring smooth and efficient performance. Engineered with a smooth shaft, it facilitates seamless integration into various systems, making it an ideal choice for modern industrial environments seeking reliable and high-performance motion control solutions.

Documentation & Downloads

Specifications

Key Specifications

Country of OriginBrazil, Switzerland, China, France, Sweden, United States

Physical Attributes

Motor Flange Size40 mm
Shaft Length25 mm

Complementary Attributes

Maximum Current Irms2.65 A LXM28... 0.1 kW, 220 V, 2.65 A LXM28... 0.1 kW, 110 V, 2.7 A
Maximum Ambient Air Temperature For Operation40.0 °C
Maximum Mechanical Speed5000 rpm
Maximum Permanent Current0.89 A
Minimum Ambient Air Temperature For Operation0.0 °C
Line Rated Current0.89 A
Maximum Axial Force Fa40 N
Maximum Operational Altitude1000.0 m
Maximum Radial Force Fr85 N 3000 rpm
Minimum Operational Altitude0.0 m

Important Information Attributes

Coefficient 1 1-1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm
Coefficient 1 5-7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5
Nominal SpeedLXM28... 0.9 A, 220 V, single phase, LXM28... 0.9 A, 220 V, three phase LXM28... 1.8 A, 110 V, single phase, 3000 rpm
Peak Stall Torque0.96 N.m LXM28... 0.9 A, 220 V, single phase, 0.96 N.m LXM28... 0.9 A, 220 V, three phase0.96 N.m LXM28... 1.8 A, 110 V, single phase
Saturation Coefficient-3.8243890773E-18, -3.8243890773E-18
Carbon Footprint Of The Distribution Phase [A4]0.1008327747, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0049809235, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]1 071 kg CO2 eq., 1070.8065815257
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Product Kit IdentifierN
Circle Diameter Of The Mounting Holes46 mm
Coefficient 1 47.11E-26 N.m/rpm4
Coefficient 2 00 N.m
Continuous Power100 W
Derating Altitude Start1000.0 m
Derating Temperature Start40.0 °C
Electrical Connectionfree lead
Holding Brakewithout
Maximum Operational Altitude1000.0 m
Minimum Operational Altitude0.0 m
Motor Voltage Drop Coefficient1
Mounting Supportasian standard flange
Number Of Motor Poles4.0
Number Of Mounting Holes4
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLexium 28
Rotor Inertia0.075 kg.cm²
Shaft Endsmooth shaft
Software VersionEIME v5.6.0.1
Stator Inductance20.6 mH 20 °C
Sustainable PackagingNo
Temperature Magnet Hot100 °C
Torque Constant0.4 N.m/A 20 °C
Type Of Coolingnatural convection
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: China
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Length Total100 mm
Brake Pull-in Power4.35 W
Maximum [In] Rated Current0.89 A
Package Weight(Lbs)859.000 g
Warranty (In Months)18
Coefficient 1 3-2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3
Continuous Stall Torque0.32 N.m LXM28 0.9 A, 220 V, single phase, 0.32 N.m LXM28 0.9 A, 220 V, three phase0.32 N.m LXM28 1.8 A, 110 V, single phase
Nominal Torque0.32 N.m half speed, 0.32 N.m full speed, 0.32 N.m LXM28... 0.9 A, 220 V, single phase, 0.32 N.m LXM28... 0.9 A, 220 V, three phase0.32 N.m LXM28... 1.8 A, 110 V, single phase
Phasesingle phase, three phase
[Us] Rated Supply Voltage220 V, 110 V
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.0839350275
Carbon Footprint Of The Manufacturing Phase [A1 To A3]4 kg CO2 eq., 4.4790813901
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1504002EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2444
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Centring Collar Diameter30 mm
Coefficient 1 25.62440546E-19 N.m/rpm²
Coefficient 1 63.2E-34 N.m/rpm6
Coefficient 2 18.75000000000026E-06 N.m/rpm
Continuous Stall Current0.81 A
Derating Temperature Scale40.0 °C
Device Short NameBCH2
Feedback Type20 bits single turn absolute encoder
Inertia0.0 kg.cm² of brake0.065 kg.cm² of motor
Minimum Ambient Air Temperature For Operation0.0 °C
Motor Figures230.0 V
Mounting Holes Diameter4.5 mm
Network Number Of Phases1
Number Of Motor Stacks2
Peak Nominal Torque0.96 N.m
Product Or Component Typeservo motor
ReturnabilityNo
Shaft Diameter8 mm
Sizing ReferenceBCH2
Stator Electrical Time Constant0.88 ms 20 °C
Stator Resistance23.4 Ohm 20 °C
Temperature Copper Hot135 °C
Temperature Magnet Rt20 °C
Total Lifecycle Carbon Footprint1 075 kg CO2 eq.
Pep CodeENVPEP1504002EN
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime In Kwh2185.557
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Accuracy Error [Angular]0.044 °
Distance Shaft Shoulder-flange3 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8501514040

Environment Attributes Main

Ambient Air Temperature For Operation-20-40 °C, -20-40 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint1075.4754116415
Environmental DisclosureENVPEP1504002EN
Ip Degree Of ProtectionIP50 IM V3IP65 IM B5, IM V1
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
Product CompatibilityLXM28... servo drive 0.1 kW, 220 V, single phase, LXM28... servo drive 0.1 kW, 220 V, three phase, LXM28... servo drive 0.1 kW, 110 V, single phase
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI1504002EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1504002EN
Pcr VersionPCR-ed3-EN-2015 04 02

General Attributes

Phasesingle phase, three phase
Range Of ProductLexium 28
Product Or Component Typeservo motor

ETIM

ETIM 8EC001851
ETIM 9EC001851

Output Attributes

Nominal Output Power100 W LXM28... 0.9 A, 220 V, single phase, 100 W LXM28... 0.9 A, 220 V, three phase100 W LXM28... 1.8 A, 110 V, single phase
Output Current 3s Peak2.7 A
Servo Motor, Lexium 28, 40mm, 100W, Smooth Shaft, 5000 RPM
