Schneider Electric BCH2LF0732CF5C servo motor BCH, Lexium 28, 80mm, 750W, 1.24kg.cm², with oil seal, smooth, brake, leads connection
Schneider Electric BCH2LF0732CF5C servo motor BCH, Lexium 28, 80mm, 750W, 1.24kg.cm², with oil seal, smooth, brake, leads connection
- MPN: BCH2LF0732CF5C
- PPN: SCH-BCH2LF0732CF5C
- UNSPSC: 26101205
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1313.22/ EA
Description

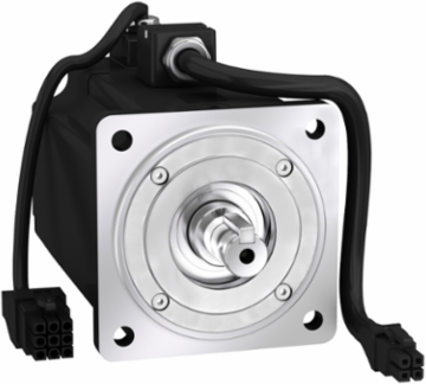

servo motor BCH, Lexium 28, 80mm, 750W, 1.24kg.cm², with oil seal, smooth, brake, leads connection
Specifications
Physical Attributes
- Motor Flange Size
- 80 mm
Shaft Length35 mm
Complementary Attributes
- Maximum Current IRMS
- 13.23 A LXM28... 0.75 kW, 220 V, 13.23 A LXM28... 0.75 kW, 110 V, 13.5 A
- Maximum Ambient Air Temperature For Operation
- 40.0 °C
- Maximum Mechanical Speed
- 5000 rpm
- Maximum Permanent Current
- 4.29 A
- Minimum Ambient Air Temperature For Operation
- 0.0 °C
Line Rated Current4.29 A
Maximum Axial Force FA115 N
Maximum Operational Altitude1000.0 m
Maximum Radial Force FR332 N 3000 rpm
Minimum Operational Altitude0.0 m
Important Information Attributes
- Coefficient 1 1
- -1.87500000003E-05 N.m/rpm, -1.87500000003E-05 N.m/rpm
- Coefficient 1 5
- -7.8919E-30 N.m/rpm5, -7.8919E-30 N.m/rpm5
- Inertia
- 1.58 kg.cm² of brake, 1.24 kg.cm² of motor
- Nominal Torque
- 2.39 N.m half speed, 2.39 N.m full speed, 2.39 N.m LXM28... 4.5 A, 220 V, single phase, 2.39 N.m LXM28... 4.5 A, 220 V, three phase, 2.39 N.m LXM28... 9 A, 110 V, single phase
- Phase
- three phase, single phase
- Us Rated Supply Voltage2
- 220 V, 110 V
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.5 kg CO2 eq., 0.4521643834
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 24 kg CO2 eq., 24.1291524664
- Local Data Status
- Publishable
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1504002EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Brake Pull In Power
- 10.2 W
- Circle Diameter Of The Mounting Holes
- 90 mm
- Coefficient 1 4
- 7.11E-26 N.m/rpm4
- Coefficient 2 0
- 0 N.m
- Continuous Power
- 750 W
- Derating Altitude Start
- 1000.0 m
- Derating Temperature Start
- 40.0 °C
- Distance Shaft Shoulder Flange
- 4 mm
- Feedback Type
- 20 bits single turn absolute encoder
- Holding Torque
- 2.5 N.m built-in
- Minimum Ambient Air Temperature For Operation
- 0.0 °C
- Motor Figures
- 230.0 V
- Mounting Support
- asian standard flange
- Peak Nominal Torque
- 7.16 N.m
- Product Or Component Type
- servo motor
- Rotor Inertia
- 1.24 kg.cm²
- Shaft End
- smooth shaft
- Stator Electrical Time Constant
- 4.07 ms 20 °C
- Stator Resistance
- 1.5 Ohm 20 °C
- Temperature Copper Hot
- 135 °C
- Temperature Magnet RT
- 20 °C
- Total Lifecycle Carbon Footprint
- 3 343 kg CO2 eq.
- Accuracy Error Angular2
- 0.044 °
- Medium Desc
- servo motor BCH, Lexium 28, 80mm, 750W, 1.24kg.cm², with oil seal, smooth, brake, leads connection
- Product Kit Identifier
- N
- Pep Code
- ENVPEP1504002EN
- Pep Verification Date
- 2020-11-01
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- To coordinate and synchronize motion control with a nominal torque from 0.16 Nm to 28.6 Nm and a nominal speed of from 1,500 to 3,000 rpm 70% of the time for 10 years
- Energy Model Manufacturing A1 A3 2
- Energy model used: China
- Energy Model Use B6 2
- Electricity mix; AC; < 1kV; EU-27
- Global Commercial Status
- Commercialised
Coefficient 1 3-2.965143E-22 N.m/rpm3, -2.965143E-22 N.m/rpm3
Continuous Stall Torque2.39 N.m LXM28 4.5 A, 220 V, single phase, 2.39 N.m LXM28 4.5 A, 220 V, three phase, 2.39 N.m LXM28 9 A, 110 V, single phase
Nominal Speed3000 rpm LXM28... 4.5 A, 220 V, single phase, 3000 rpm LXM28... 4.5 A, 220 V, three phase, 3000 rpm LXM28... 9 A, 110 V, single phase, 3000 rpm
Peak Stall Torque7.16 N.m LXM28... 4.5 A, 220 V, single phase, 7.16 N.m LXM28... 4.5 A, 220 V, three phase, 7.16 N.m LXM28... 9 A, 110 V, single phase
Saturation Coefficient-3.8243890773E-18, -3.8243890773E-18
Carbon Footprint Of The Distribution Phase A40.5431938341, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.0268326143, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B63 318 kg CO2 eq., 3317.7034249803
Local Publishable Date2026-01-12
ServiceabilityYes
Field Service DivisionIDIBS
Legacy WEEE ScopeOut
EOLI Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Centring Collar Diameter70 mm
Coefficient 1 25.62440546E-19 N.m/rpm²
Coefficient 1 63.2E-34 N.m/rpm6
Coefficient 2 18.75000000000026E-06 N.m/rpm
Continuous Stall Current4.01 A
Derating Temperature Scale40.0 °C
Device Short NameBCH2
Electrical Connectionfree lead
Holding Brakewith
Maximum Operational Altitude1000.0 m
Minimum Operational Altitude0.0 m
Mounting Holes Diameter6.6 mm
Package Weight Lbs4.21 kg
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Shaft Diameter19 mm
Sizing ReferenceBCH2
Stator Inductance6.1 mH 20 °C
Sustainable PackagingNo
Temperature Magnet Hot100 °C
Torque Constant0.6 N.m/A 20 °C
Type Of Coolingnatural convection
Maximum In Rated Current24.29 A
Stocking FlagY
Accuracy Error Angular30.044 °
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional Unit Unitunité (unit)
Energy Model Installation A5 2Electricity mix; AC; < 1kV; EU-27
Energy Model End Of Life C1 C4 2Electricity mix; AC; < 1kV; EU-27
Maximum In Rated Current54.29 A
Environment Attributes Main
- Take Back
- No, Nej
- IP Degree Of Protection
- IP50 IM V3, IP65 IM B5, IM V1
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 3342.8547682785
- Circularity Profile
- ENVEOLI1504002EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP1504002EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
EU ROHS DirectiveCompliant , Pro-active compliance (Product out of EU RoHS legal scope)
Product CompatibilityLXM28... servo drive 0.75 kW, 220 V, single phase, LXM28... servo drive 0.75 kW, 220 V, three phase, LXM28... servo drive 0.75 kW, 110 V, single phase
Reach Free SHVCYes
China ROHS RegulationX
Mercury FreeYes
Ambient Air Temperature For Operation0-40 °C
Environmental DisclosureENVPEP1504002EN
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2020-11-01
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- three phase, single phase
Product Or Component Typeservo motor
Output Attributes
- Nominal Output Power
- 750 W LXM28... 4.5 A, 220 V, single phase, 750 W LXM28... 4.5 A, 220 V, three phase, 750 W LXM28... 9 A, 110 V, single phase
Output Current 3s Peak13.5 A
