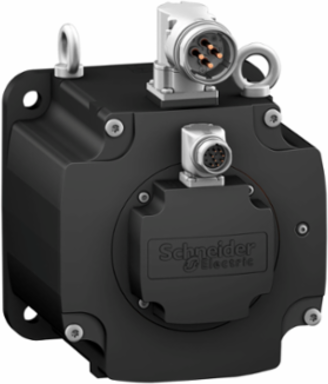

Schneider Electric BMH1903P22F2A Lexium 32 Servo Motor, 65Nm Torque, 3500rpm, IP65/IP67
- MPN: BMH1903P22F2A
- PPN: SCH-BMH1903P22F2A
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric Lexium 32 Servo Motor is engineered for high-performance motion control applications, providing an impressive torque of 65Nm and a rapid speed of 3500rpm. This motor's robust design offers IP65/IP67 protection, ensuring reliable operation in challenging environments where dust and water resistance are essential. Ideal for automation and control systems, this servo motor excels in delivering precise and efficient performance, making it a vital component for advanced industrial machinery and automated processes.
Documentation & Downloads
Specifications
Additional
- Peak Stall Torque
- 162.7 N.m
- Holding Torque
- 80 N.m holding brake
- Nominal Torque
- 37 N.m
- Maximum Mechanical Speed
- 3500 rpm
- Maximum Current Irms
- 72 A
- Torque Constant
- 1.8 N.m/A 120 6C
- Number Of Motor Poles
- 10
- Maximum Axial Force
- 0.2 x Radial Force
- Length
- 370 mm
- Shaft Length
- 80 mm
- Number Of Mounting Holes
- 4
- Centring Collar Diameter
- 180 mm
- Motor Flange Size
- 190 mm
- Mounting Support
- international standard flange
- Net Weight
- 44.5 kg
- Ip Degree Of Protection
- IP65 standard, IP67 with kit
- Speed Feedback Resolution
- 131072 points/turn x 4096 turns
- Type Of Cooling
- natural convection
- Device Short Name
- BMH
- Sustainable Offer Status
- Green Premium product
- Mercury Free
- Yes
Continuous Stall Torque65 N.m
Nominal Output Power7750 W
Nominal Speed2000 rpm
Continuous Stall Current36.1 A
Maximum Permanent Current124.5 A
Back Emf Constant129.2 V/krpm 120 6C
Maximum Radial Force4500 N at 1000 rpm
Continuous Power7.95 W
Shaft Diameter38 mm
Mounting Holes Diameter14 mm
Circle Diameter Of The Mounting Holes215 mm
Centring Collar Depth4 mm
Shaft Endsmooth shaft
Electrical Connectionrotatable right-angled connectors
MaterialNot specified
Feedback Typemultiturn SinCos Hiperface
Brake Pull-In Power40 W
Country Of OriginDE
Phasethree phase
EU RoHS Directive CompliancePro-active compliance
PVC FreeYes
