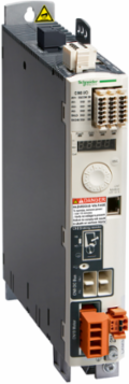

Schneider Electric LXM32CD12N4 Lexium 32 Motion Servo Drive 12A, 208-480V, 0.9kW, IP20, Modbus
- MPN: LXM32CD12N4
- PPN: SCH-LXM32CD12N4
CAD
$2187.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The AC motion servo drive for one axis, features with an integrated EMC filter, compact drive with analogue inputs and pulse train. It provides 2 safety, 6 logic discrete inputs and 5 discrete outputs. Thanks to its compact design this servo drive enables to save on cabinet space and size, reduces the machine footprint and decreases costs. It is a motion servo drive with a rated supply voltage of 200V to 240V, 380V to 480V (three phase), a continuous output current of 3A at 8kHz and a continuous power of 1600W at 400V. It is furnished with terminal for electrical connection and RJ45 connector for Modbus integrated communication interface. It is an IP20 rated product. Its dimensions are 48mm (Width) x 237mm (Depth) x 270mm (Height). It weighs 1.8kg. This product is certified by CE, CSA, RoHS, TUV and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. This product is compatible with servo motors BMH and BSH. Servo drive range with four servo drive models and two servo motor families plus an intelligent selection of options. It provides you with the drive and motor combination that has exactly the right power, performance and functionality.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Germany, France, Indonesia, United States |
|---|
| Depth | 237 mm |
|---|
Communications & Management Attributes
| Communication Interface | Digital I/O, Integrated, Analog I/O, Integrated |
|---|
Complementary Attributes
| Line Rated Current | 3.0 A |
|---|---|
| Maximum Current Irms | 12.0 A |
| Maximum Operational Altitude | 2000.0 m |
| Maximum Ambient Air Temperature For Operation | 50.0 °C |
|---|---|
| Maximum Leakage Current | 30 mA |
| Minimum Ambient Air Temperature For Operation | 0.0 °C |
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Contact Bounce Time | <= 1 ms compliment of STO_A, compliment of STO_B, <= 1 ms compliment of STO_A, compliment of STO_B<= 1 ms compliment of STO_A, compliment of STO_B, <= 1 ms compliment of STO_A, compliment of STO_B0.25 µs...1.5 ms DI |
| Control Signal Type | servo motor encoder feedbackpulse train output (PTO) RS422 <500 kHz <100 mpulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (open collector) <10 kHz <1 m, pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (push-pull) <200 kHz <10 m, pulse/direction (P/D), A/B, CW/CCW RS422 <1000 kHz <100 m |
| Electromagnetic Compatibility | conducted EMC, class A group 1 EN 55011, conducted EMC, class A group 2 EN 55011conducted EMC, environment 2 category C3 EN/IEC 61800-3, conducted EMC, category C2 EN/IEC 61800-3, conducted EMC, environments 1 and 2 EN/IEC 61800-3, electrostatic discharge immunity test, level 3 EN/IEC 61000-4-2susceptibility to electromagnetic fields, level 3 EN/IEC 61000-4-31.2/50 µs shock waves immunity test, level 3 EN/IEC 61000-4-5, electrical fast transient/burst immunity test, level 4 EN/IEC 61000-4-4, radiated EMC, class A group 2 EN 55011, radiated EMC, category C3 EN/IEC 61800-3 |
| Linearity Error | < +/- 0.1 %, < +/- 0.1 % |
| Nominal Voltage | 208 V three phase, 400 V three phase, 480 V three phase |
| Supply Voltage | 200-240 V three phase, 380-480 V three phase |
| Supply Voltage Limits | 170-264 V, 323-528 V |
| Certificate Agency | UL, CSA, TÜV |
| Carbon Footprint Of The Distribution Phase [A4] | 0.2921057493, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.0135868545 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 1 588 kg CO2 eq., 1587.9929328622 |
| Local Publishable Date | 2025-12-12 |
| Stocking Flag | Y |
| Device Type | Motion - drive & motor |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI110605EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1907 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Braking Current | 50 mA |
| Derating Altitude Scale | 90.0 m |
| Device Short Name | LXM32C |
| Electrical Isolation | between power and control |
| Emc Filter Compatibility | type 022 |
| Field Weakening | false |
| Marking | CE |
| Minimum Ambient Air Temperature For Operation | 0.0 °C |
| Network Number Of Phases | 3 |
| Overvoltage Category | III |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Protection Type | against reverse polarity inputs signalagainst short-circuits outputs signal |
| Returnability | No |
| Safety Level | SIL 3 EN/IEC 61508PL = e ISO 13849-1 |
| Shock Resistance | 15 gn 11 ms EN/IEC 60028-2-27 |
| Software Version | EIME v5.8.1 |
| Supply Frequency | 50/60 Hz - 5...5 % |
| Switching Frequency | 8 kHz |
| Type Of Cable | single-strand IEC cable 50-50 °C) copper 90 °C XLPE/EPR |
| Vibration Resistance | 1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-61.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6 |
| Pep Code | ENVPEP110705EN |
| Pep Verification Date | 2020-08-01 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To provide the phase currents required for the position control of the connected servo motors 100% of the time for 10 years up to 283W. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 3241.2 |
| Energy Model - Installation [A5] | Electricity mix; AC; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; < 1kV; EU-27 |
| Width Nominal | 48 mm |
| Number Of Inputs/Outputs | 6 DI + 5 DO + 2 AI |
| Package Weight(Lbs) | 2.248 kg |
| Warranty (In Months) | 18 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 4033 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Continuous Power | 800 W 208 V1600 W 400 V, 1600 W 480 V |
| Electrical Connection | terminal 3 mm², 12 AWG CN8), terminal 5 mm², 10 AWG CN1), terminal 5 mm², 10 AWG CN10) |
| Line Current | 3.1 A 79 % 208 V, with external line choke 2 mH, 3.4 A 90 % 400 V, with external line choke 2 mH, 2.9 A 98 % 480 V, with external line choke 2 mH, 3.6 A 136 % 208 V, without line choke, 2.9 A 177 % 400 V, without line choke2.4 A 182 % 480 V, without line choke |
| Nominal Power | 0.7 kW 208 V 8 kHz0.9 kW 400 V 8 kHz, 0.9 kW 480 V 8 kHz |
| Response Time | <= 5 ms compliment of STO_A, compliment of STO_B, <= 5 ms compliment of STO_A, compliment of STO_B<= 5 ms compliment of STO_A, compliment of STO_B, <= 5 ms compliment of STO_A, compliment of STO_B |
| Supply Voltage Description | three phase 230 V, three phase 400 V |
| Tightening Torque | CN8 0.5-0.5 N.mCN1 0.7-0.7 N.m, CN10 0.7-0.7 N.m |
| [Us] Rated Supply Voltage | 480 V200...240 V - 15...10 %, 380...480 V - 15...10 % |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 1.0569682997, 1 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 21 kg CO2 eq., 20.8302680115 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Compatibility Code | LXM32C |
| Derating Altitude Start | 1000.0 m |
| Drive Voltage Drop Coefficient | 0.95 |
| Emc Filter | integrated |
| Environmental Characteristic | classes 3C1 conforming to IEC 60721-3-3 |
| Format Of The Drive | book |
| Maximum Operational Altitude | 2000.0 m |
| Network Frequency | 47.5...63 Hz |
| Operating Position | vertical +/- 10 degree |
| Phase | three phase |
| Product Or Component Type | motion servo drive |
| Range Of Product | Lexium 32 |
| Safety Function | STO (safe torque off), Integrated |
| Sampling Duration | ANA1+/ANA1-, ANA2+/ANA2- 0.25 ms analogDI 0.25 ms discrete |
| Signalling Function | display of faults 7 segments |
| Status Led | 1 LED (Red) servo drive voltage |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 1 610 kg CO2 eq. |
| Type Of Cooling | integrated fan |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Indonesia |
| Energy Model - Use [B6] | Electricity mix; AC; < 1kV; EU-27 |
| Height Nominal | 270 mm |
| Maximum [In] Rated Current | 3.0 A |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 4033 |
| Customs Code | 8504404000 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -25-70 °C, -25-70 °C |
|---|---|
| Operating Altitude | <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions, > 3280.84...9842.52 ft (> 1000...3000 m) with conditions |
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 1610.1858617772 |
| Circularity Profile | ENVEOLI110605EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3 |
| Pep Verification Date | 2020-08-01 |
| Type Of Verification For The Pep | Independent internal review |
| Ip Degree Of Protection | IP20 conforming to EN/IEC 60529, IP20 conforming to EN/IEC 61800-5-1 |
|---|---|
| Product Compatibility | servo motor BSH 70 mm, 2, servo motor BMH 70 mm, 1, servo motor BMH 70 mm, 2, servo motor BMH 100 mm, 1, servo motor BSH 70 mm, 1 |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 0-50 °C UL |
| Environmental Disclosure | ENVPEP110705EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP110705EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
General Attributes
| Phase | three phase |
|---|---|
| Range Of Product | Lexium 32 |
| Product Or Component Type | motion servo drive |
|---|
ETIM
| ETIM 8 | EC001857 |
|---|
| ETIM 9 | EC001857 |
|---|
Output Attributes
| Discrete Output Voltage | <= 30 V DC, <= 30 V DC<= 30 V DC, <= 30 V DC |
|---|---|
| Output Voltage | <= power supply voltage, <= power supply voltage |
| Discrete Output Logic | positive or negative DO)EN/IEC 61131-2 |
| Discrete Output Type | logic DO)24 V DC |
| Output Current 3s Peak | 12.0 A, 12 A 208 V 5 s, 12 A 480 V 5 s |
|---|---|
| Continuous Output Current | 3 A 8 kHz |
| Discrete Output Number | 5 |
| Response Time On Output | 250 µs DO)discrete |
Surge Protection And Filtering Attributes
| Emc Filter | integrated |
|---|
| Emc Filter Compatibility | type 022 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Discrete Input Logic | positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V EN/IEC 61131-2 type 1, positive DI)> 19 V < 9 V EN/IEC 61131-2 type 1, positive or negative DI)< 5 V > 15 V EN/IEC 61131-2 type 1 |
|---|---|
| Analogue Input Number | 2 |
| Discrete Input Number | 2 safety6 logic |
| Discrete Input Voltage | 24 V DC logic, 24 V DC safety |
|---|---|
| Analogue Input Type | ANA1+/ANA1-, ANA2+/ANA2- analog input differential +/- 10 V >= 20 Ohm 14 bits |
| Discrete Input Type | logic DIsafety compliment of STO_A, compliment of STO_B |
