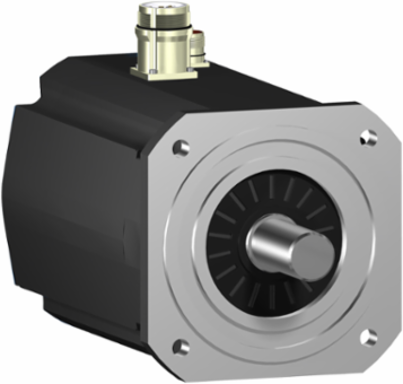

Schneider Electric SH32052P11F1000 Servo Motor 64.9 Nm Holding Torque, IP54/IP65, 3.8k RPM
- MPN: SH32052P11F1000
- PPN: SCH-SH32052P11F1000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric Servo Motor combines exceptional performance with rugged design, making it a reliable choice for motion control applications. With a holding torque of 64.9 Nm and an impressive rotational speed of 3.8k RPM, this motor is engineered to deliver precise and powerful operation in demanding environments. Its IP54/IP65 rating ensures protection against dust and moisture, allowing for versatile deployment in various automation and control settings. This servo motor is ideal for industrial applications where precision and durability are essential.
Documentation & Downloads
Specifications
Additional
- Rated Supply Voltage
- 115...480 V
- Continuous Power
- 7900 W
- Peak Stall Torque
- 220 N.m
- Nominal Torque
- 61.6 N.m 115 V single phase, 56 N.m 230 V single phase, 38.1 N.m 400 V three phase, 28.4 N.m 480 V three phase
- Maximum Mechanical Speed
- 3800 rpm
- Maximum Current Irms
- 96.8 A
- Maximum Radial Force Fr
- 4200 N 1000 rpm, 3330 N 2000 rpm, 2910 N 3000 rpm
- Torque Constant
- 2.58 N.m/A 120 °C
- Number Of Motor Poles
- 5
- Stator Inductance
- 8.2 mH
- Holding Torque
- 80 N.m
- Type Of Cooling
- Natural convection
- Shaft Length
- 80 mm
- Shaft End
- Parallel key
- Motor Flange Size
- 205 mm
- Number Of Mounting Holes
- 4
- Circle Diameter Of The Mounting Holes
- 215 mm
- Centring Collar Depth
- 4 mm
- Net Weight
- 53.6 kg
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation
- Contains SVHC above threshold
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111049EN
- Warranty
- 18 months
- Device Short Name
- SH3.....P
PhaseThree phase
Nominal Output Power3230 W 115 V single phase, 5860 W 230 V single phase, 7980 W 400 V three phase, 7140 W 480 V three phase
Continuous Stall Torque64.9 N.m
Torque64.9 N.m
Nominal Speed500 rpm 115 V single phase, 1000 rpm 230 V single phase, 2000 rpm 400 V three phase, 2400 rpm 480 V three phase
Continuous Stall Current25.7 A
Maximum Axial Force Fa740 N
Back Emf Constant161 V/krpm 20 °C
Stator Resistance0.3 Ohm
Rotor Inertia145 kg.cm²
Holding BrakeWith
Shaft Diameter38 mm
Key Width10 mm
Electrical ConnectionRotatable right angled connector
Mounting SupportInternational standard flange
Mounting Holes Diameter14 mm
Centring Collar Diameter180 mm
Length454.5 mm
IP Degree Of ProtectionIP54 shaft bushing without shaft seal ring; IP65 motor; IP65 shaft bushing, conforming to EN/IEC 60034-5
Pvc FreeYes
China Rohs RegulationX
Mercury FreeYes
WeeeMust be disposed per EU waste rules
Product Or Component TypeServo motor
