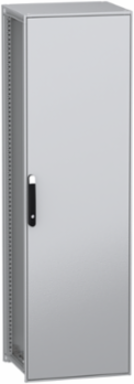

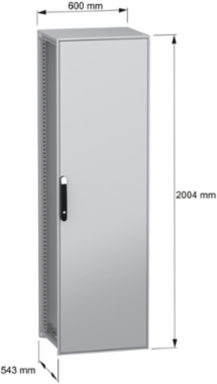

Schneider Electric NSYSFN20650 PanelSeT SFN Floor Standing Modular Enclosure 2000x600x500mm IP55
- MPN: NSYSFN20650
- PPN: SCH-NSYSFN20650
CAD
$2951.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for versatility and robust protection, the Schneider Electric NSYSFN20650 PanelSeT SFN Floor Standing Modular Enclosure is designed to meet the demanding requirements of various applications. With an IP55 rating, this enclosure ensures effective dust and water resistance, making it suitable for environments where durability is paramount. Its spacious internal dimensions of 2000x600x500mm offer ample room for mounting and organizing electrical equipment, while the modular design allows for easy customization. Whether deployed in industrial settings or commercial installations, this enclosure provides a reliable solution for safeguarding sensitive components.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain, France
Physical Attributes
- Color
- enclosure Gray RAL 7035), handle Black RAL 9005)
- Enclosure Nominal Width
- 600 mm
Enclosure Nominal Height2000 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 2 sliding rails4 mounting plate quick-fixing brackets1 structure, 1 door1 locking system with handle door, 1 rear panel, 1 roof
- Removable Parts
- door by screws hinge, rear panel by screws, roof by screws, mounting plate bracket by screws, sliding rail by screws
- Certificate Agency
- IEC 62208, UL, cUL
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 184 kg CO2 eq., 184.1558343
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 209 kg CO2 eq., 209.110829
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2507020EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2306
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Average Percentage Of Recycled Metal Content
- 45 %
- Door Opening Side
- reversible 120 °)
- Enclosure Mounting
- floor-standing
- Lock Type
- 4 points lock, handle with 5 mm double bar insert front door
- Number Of Doors
- front 1
- Product Name
- PanelSeT SFN
- Range
- PanelSeT
- Software Version
- v5.9.4
- Sustainable Packaging
- No
- Type Of Gland Plate
- without gland plate
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529).& 10X = Total number of enclosures or cabinets = 1& 10In = Rated current allowed in this enclosure (A) = 2500A& 10Voltage range = Low Voltage& 10Current type = AC/DC Current
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential In %
- 97
- Package Weight(Lbs)
- 88.000 kg
- Take-back
- No
- Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle
- 21222.8064
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Materialframe galvanised steel, uprights galvanised steeldoor sheet steel, panels sheet steelhinge zamakhandle polyamide 6 with 30 % fibre glass
Structure Typepanels and doors built into the structure, formed from a single section, perforated structure with a pitch of 25 mm, vertical uprights joined with top and bottom frames
Carbon Footprint Of The Distribution Phase [A4]15.41589593, 15 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]21.8252128, 22 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-04-23
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmulti-purpose
Door TypeSolid front
Energy Efficiency OptimizedFalse
Mounting Plate Descriptionwithout mounting plate
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typesuitable enclosure
ReturnabilityNo
Surface Finishepoxy-polyester powder
Total Lifecycle Carbon Footprint431 kg CO2 eq.
Pep CodeENVPEP2301018EN
Pep Verification Date2023-07-31
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Customs Code9403200090
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Silicon Free
- Yes
- Circularity Profile
- ENVEOLI2507020EN
- Eu Rohs Directive
- Compliant By Exemption
- Nema Degree Of Protection
- NEMA 3R/12
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2301018EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Recycled Metal Content At Cr Level45 %
Mercury FreeYes
Carbon Footprint430.507772
Environmental DisclosureENVPEP2301018EN
Ip Degree Of ProtectionIP55 IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-07-31
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- suitable enclosure
ETIM
- ETIM 8
- EC000261
ETIM 9EC000261
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
